Repair Procedures

Inspection

Hazard Lamp Relay
Check for continuity between the terminals.
1. There should be continuity between the No.13 and No.12 terminals when power and ground are connected to the No.13 and No.3 in the ICM relay B terminals.
2. There should be no continuity between the No13 and No.12 terminals when power is disconnected.

Burglar Alarm Horn
Check for continuity between the terminals.
1. There should be continuity between the No.8 and No.9 terminals when power and ground are connected to the No.8 and No.1 in the ICM relay B terminals.
2. There should be no continuity between the No.8 and No.9 terminals when power is disconnected.

Burglar Alarm
Check for continuity between the terminals.
1. There should be no continuity between the No.11 and No.10 terminals when power and ground are connected to the No.11 and No.4 in the ICM relay B terminals.
2. There should be continuity between the No.11 and No.10 terminals when power is disconnected.

Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the crash pad lower panel(A).

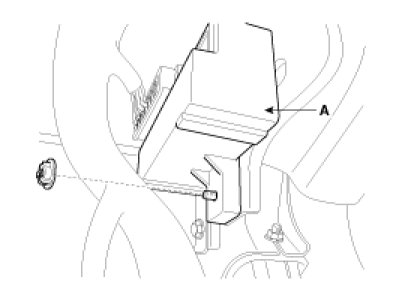

3. Remove the ICM relay box(A) after disconnecting the connector and removing the mounting nut.






Installation

1. Install the ICM relay box.
2. Install the crash pad lower panel.
