Engine Control Module





ECM Terminal And Input/Output signal

ECM Harness Connector

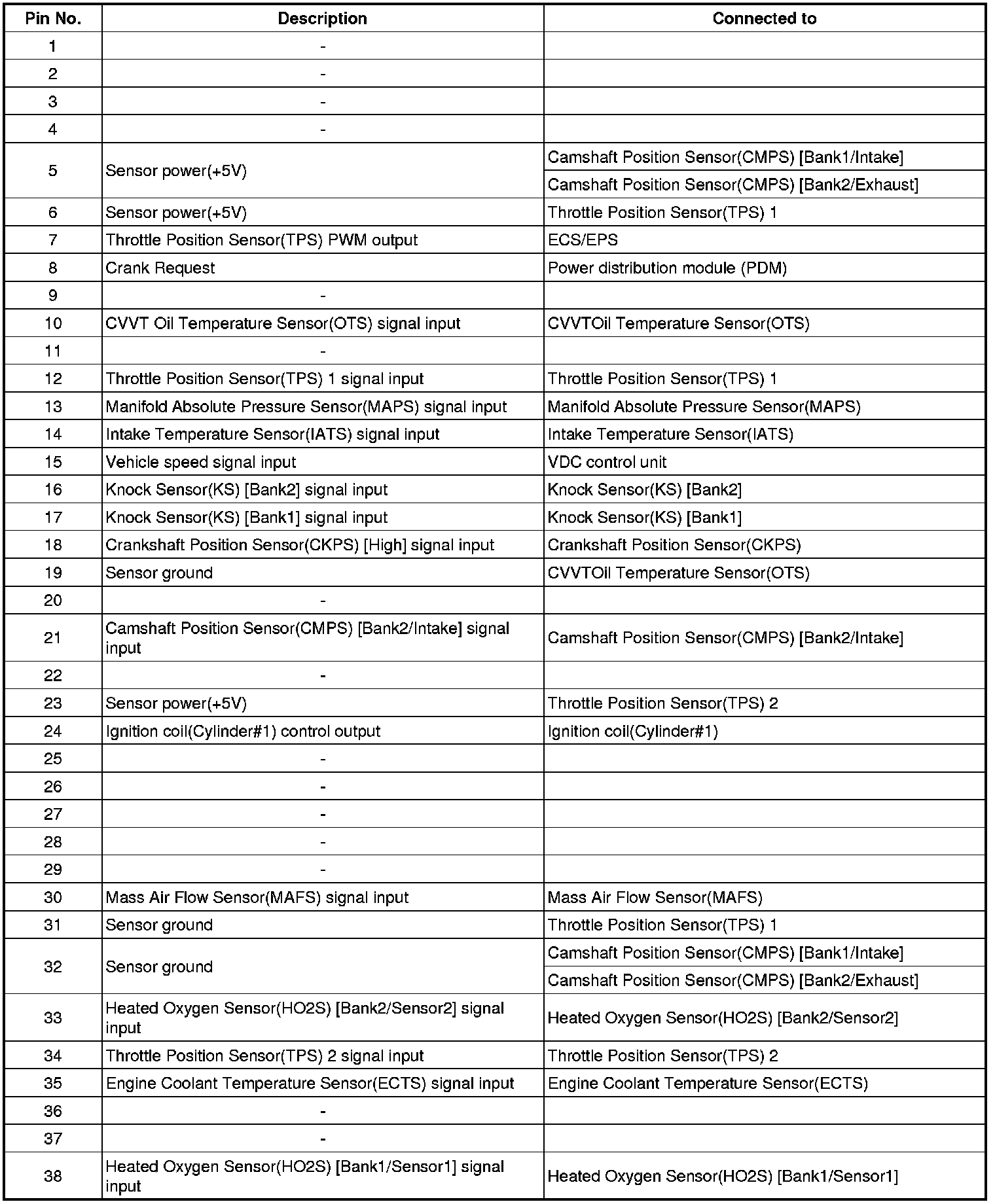

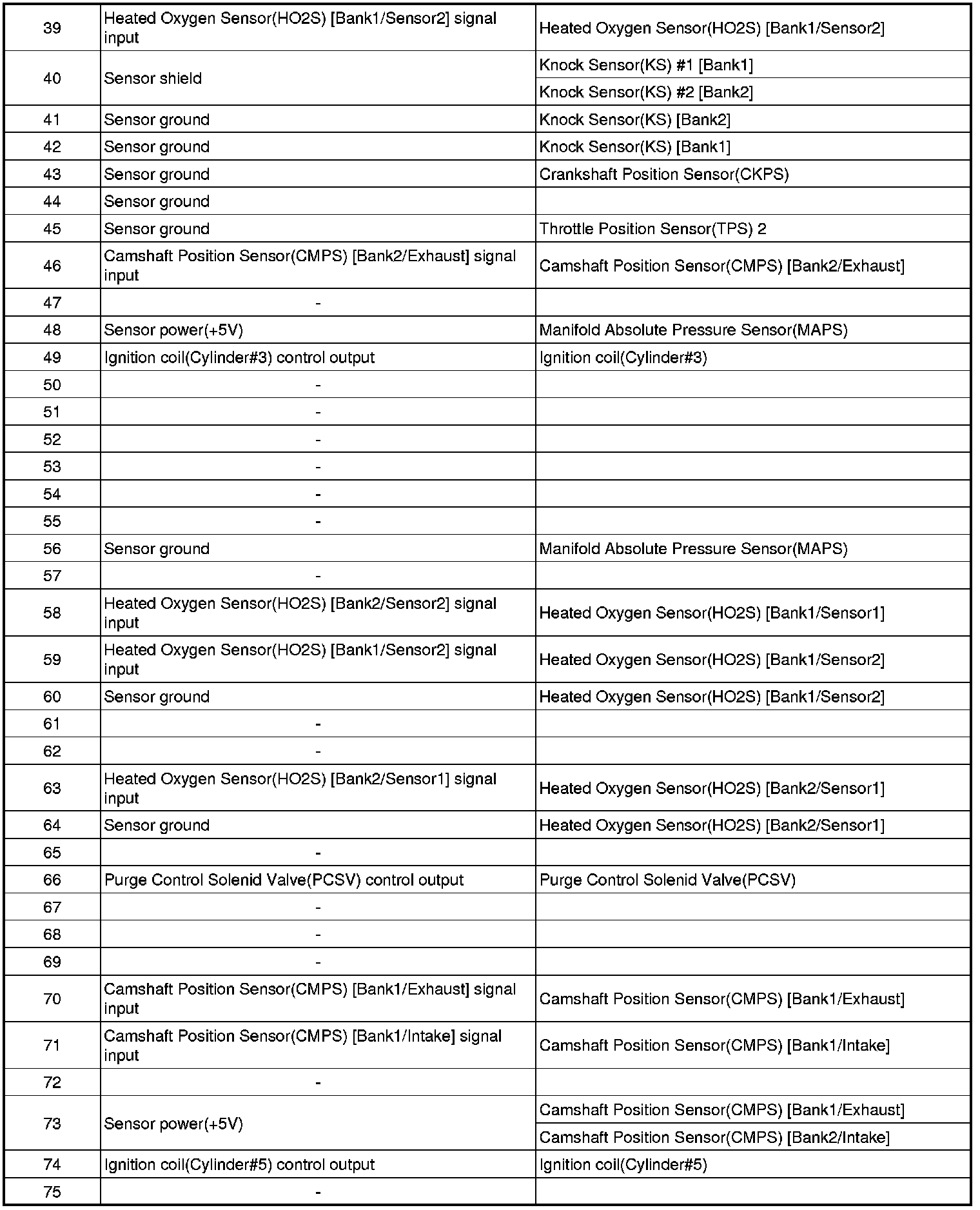

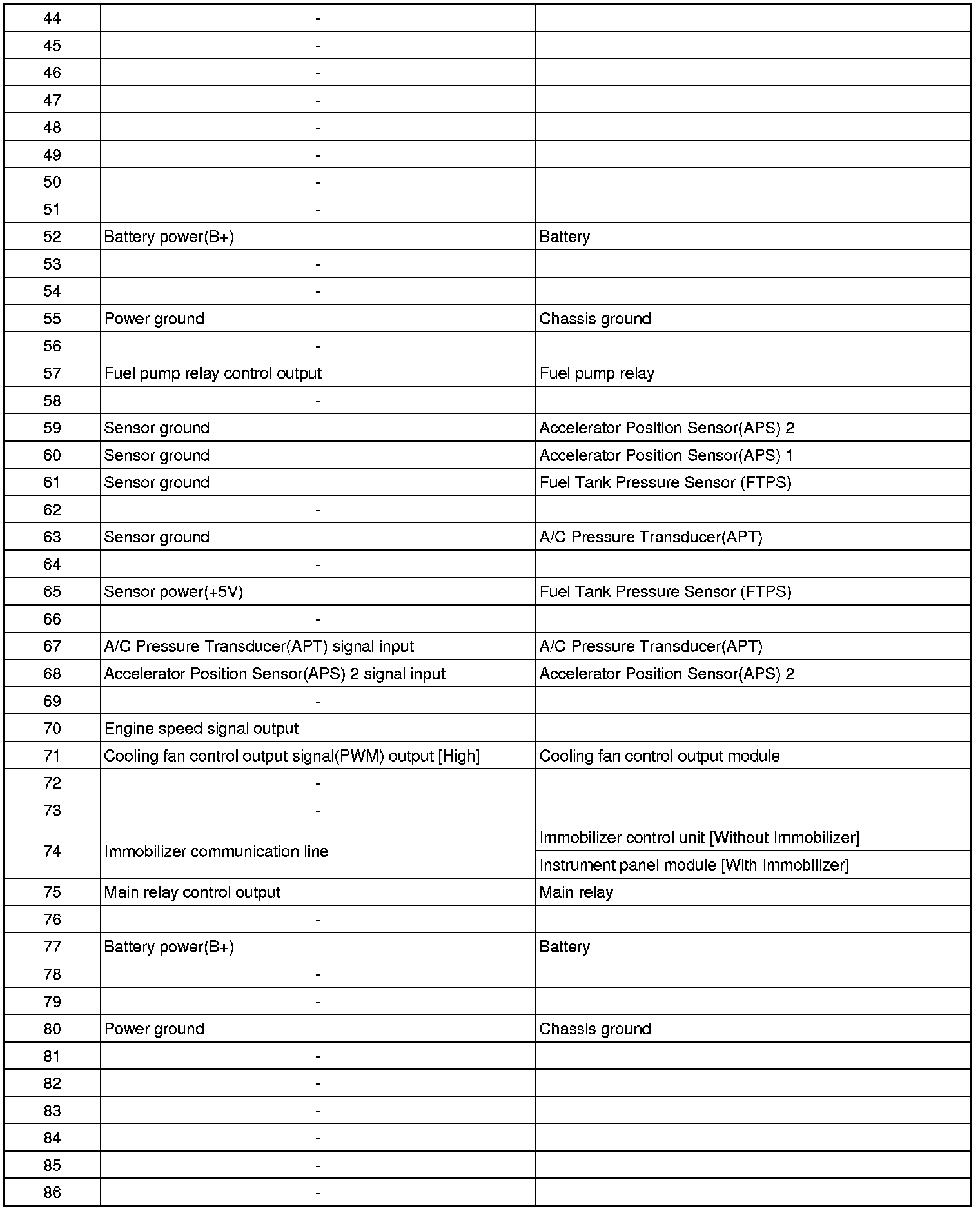

ECM Terminal Function
Connector [ELG-A]

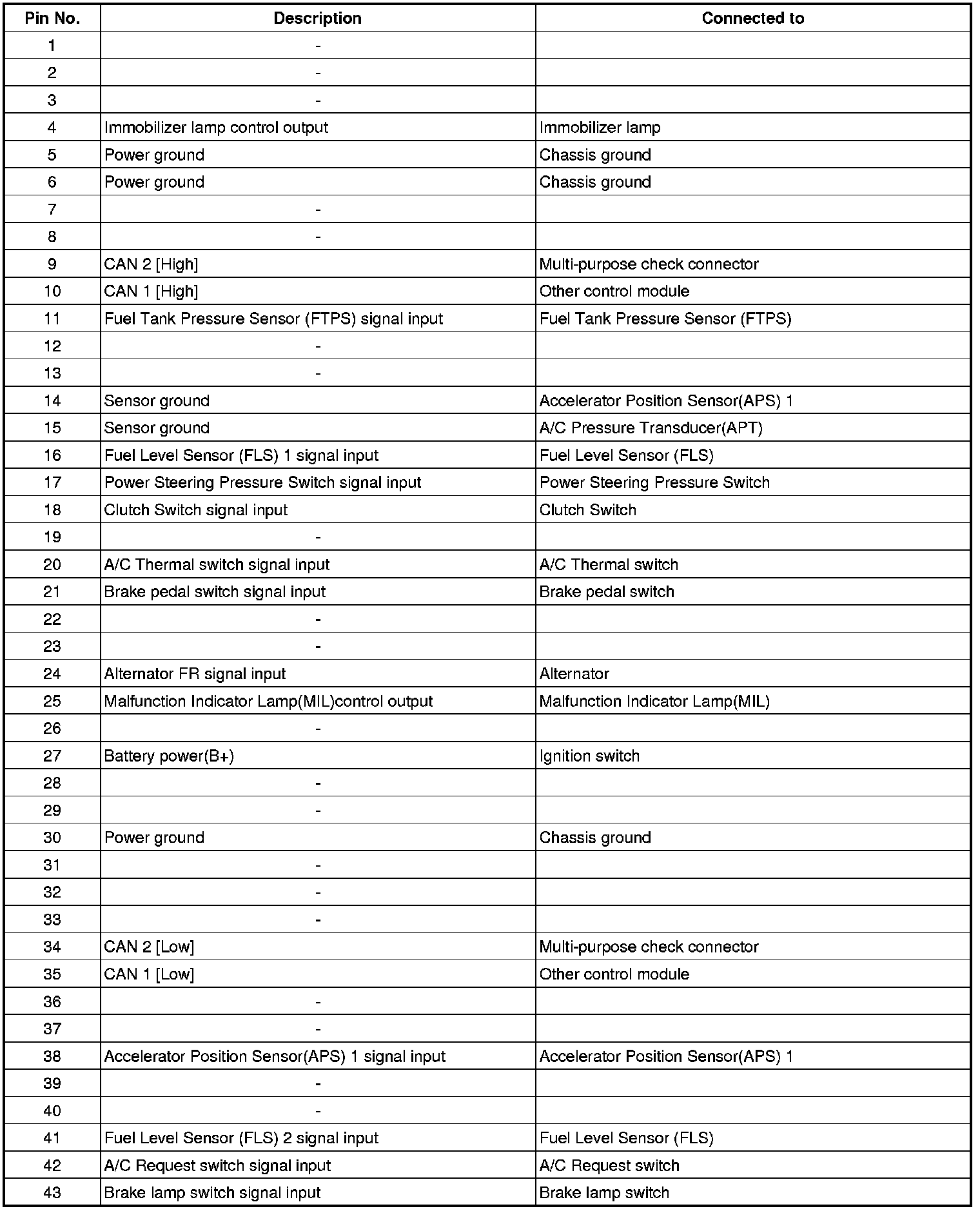

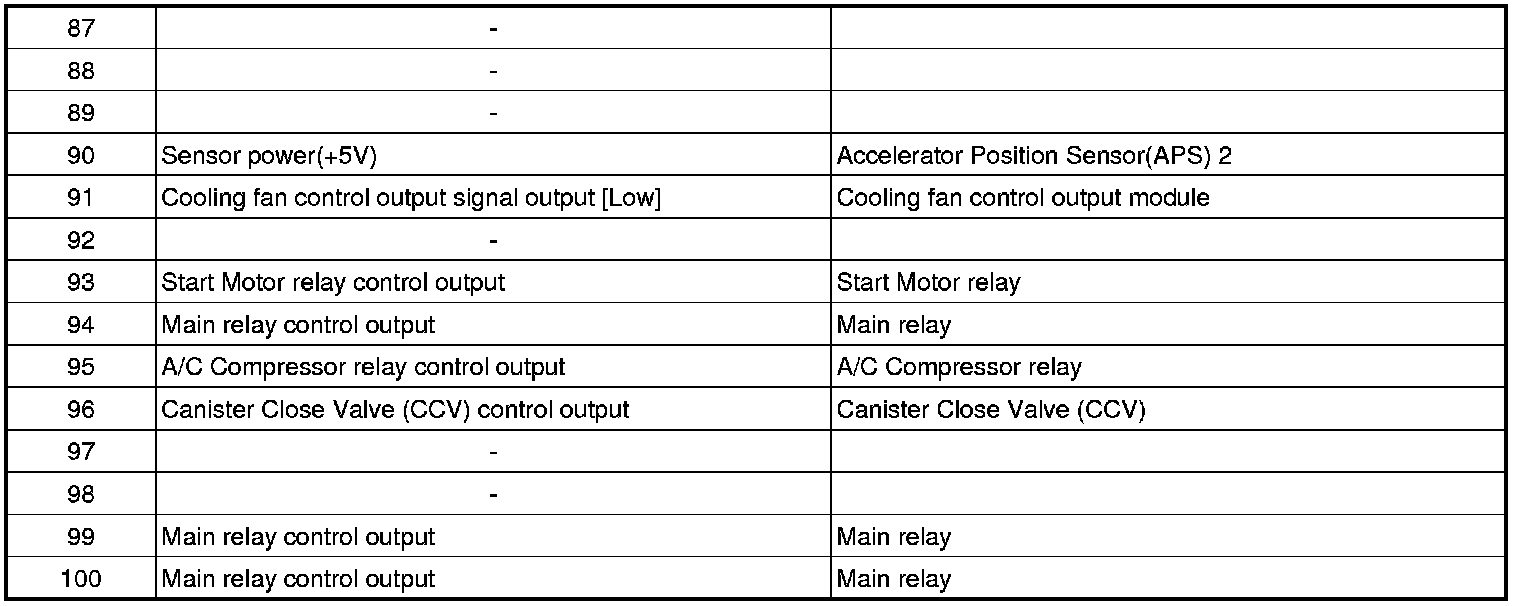

Connector [CLG-B]

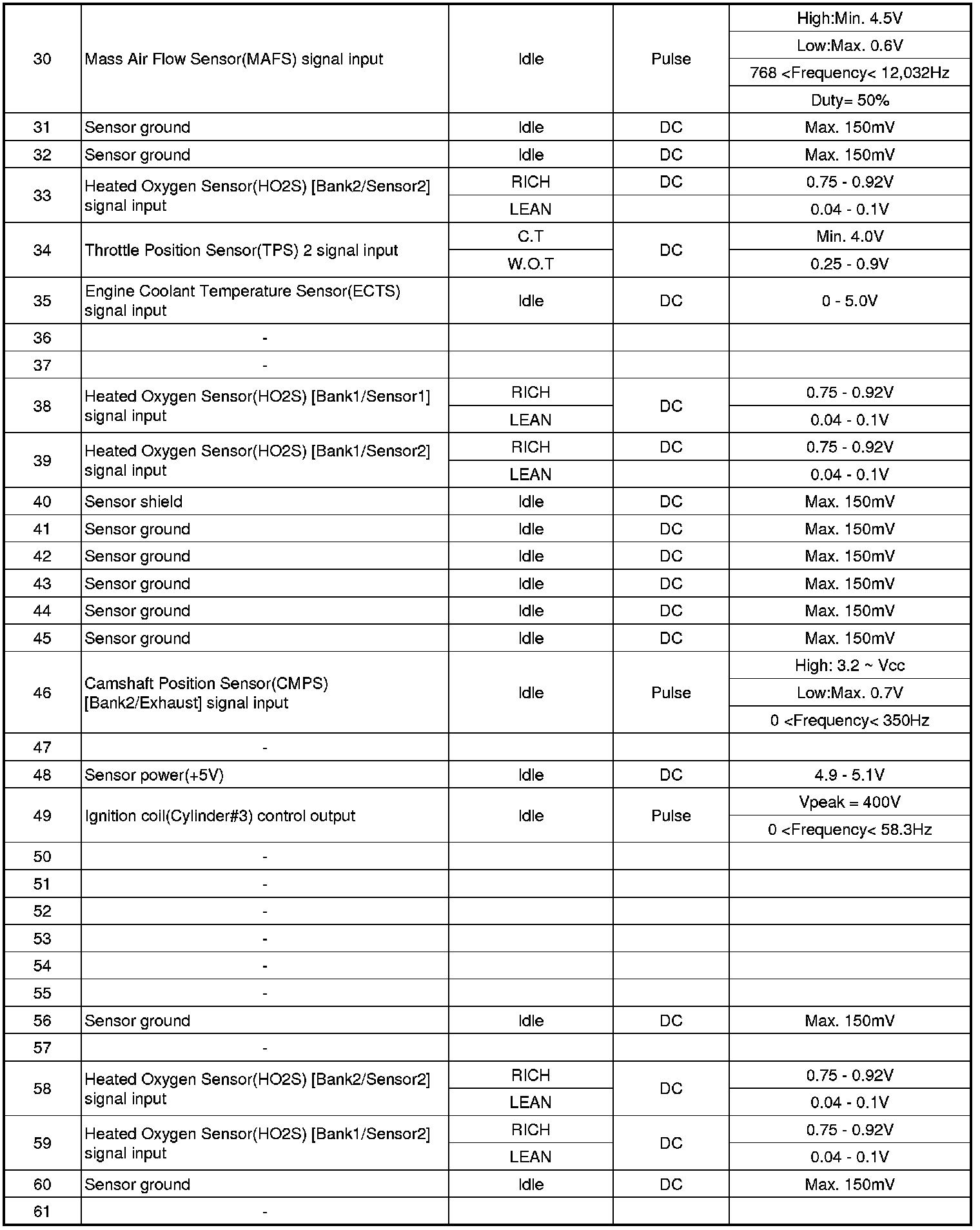

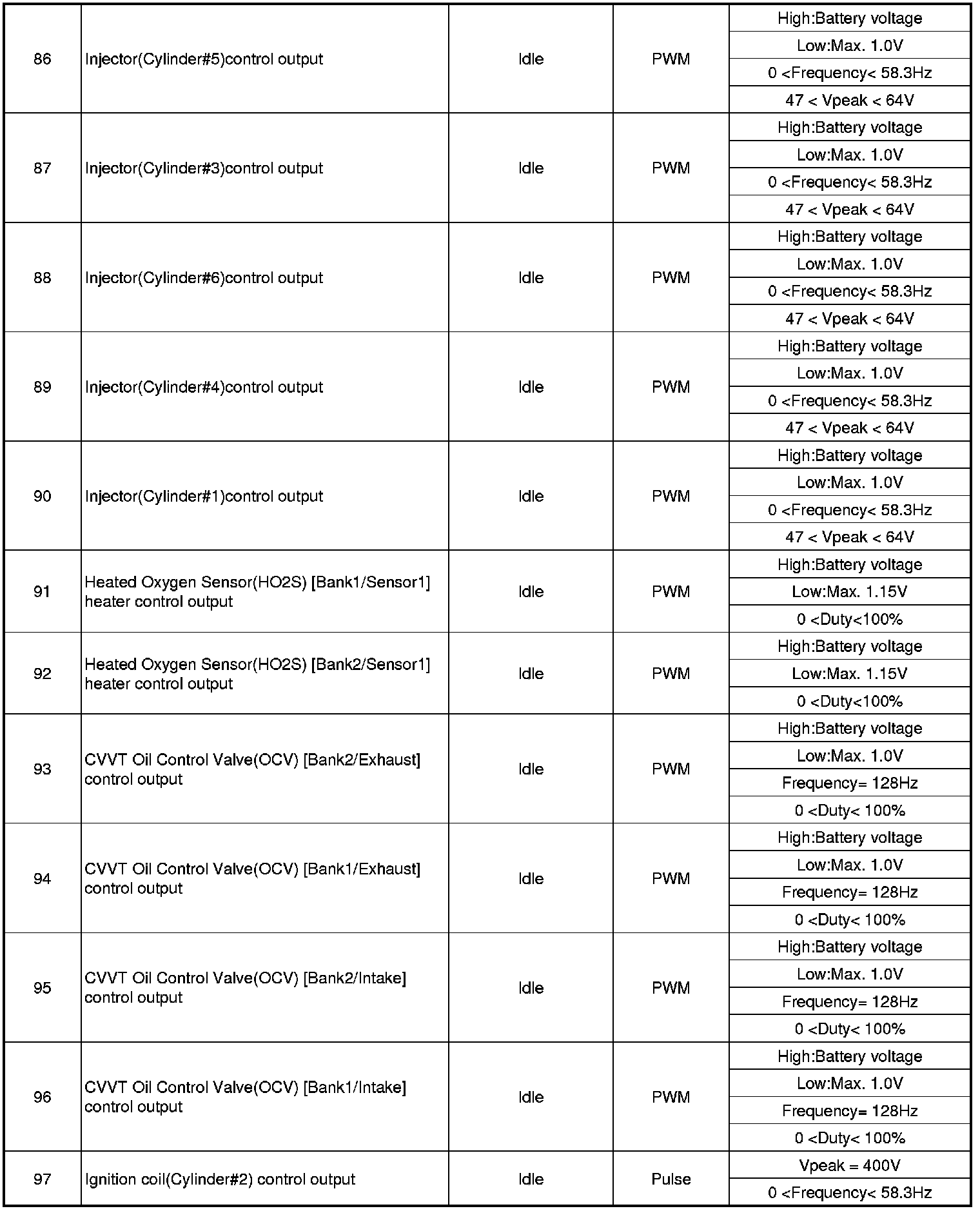

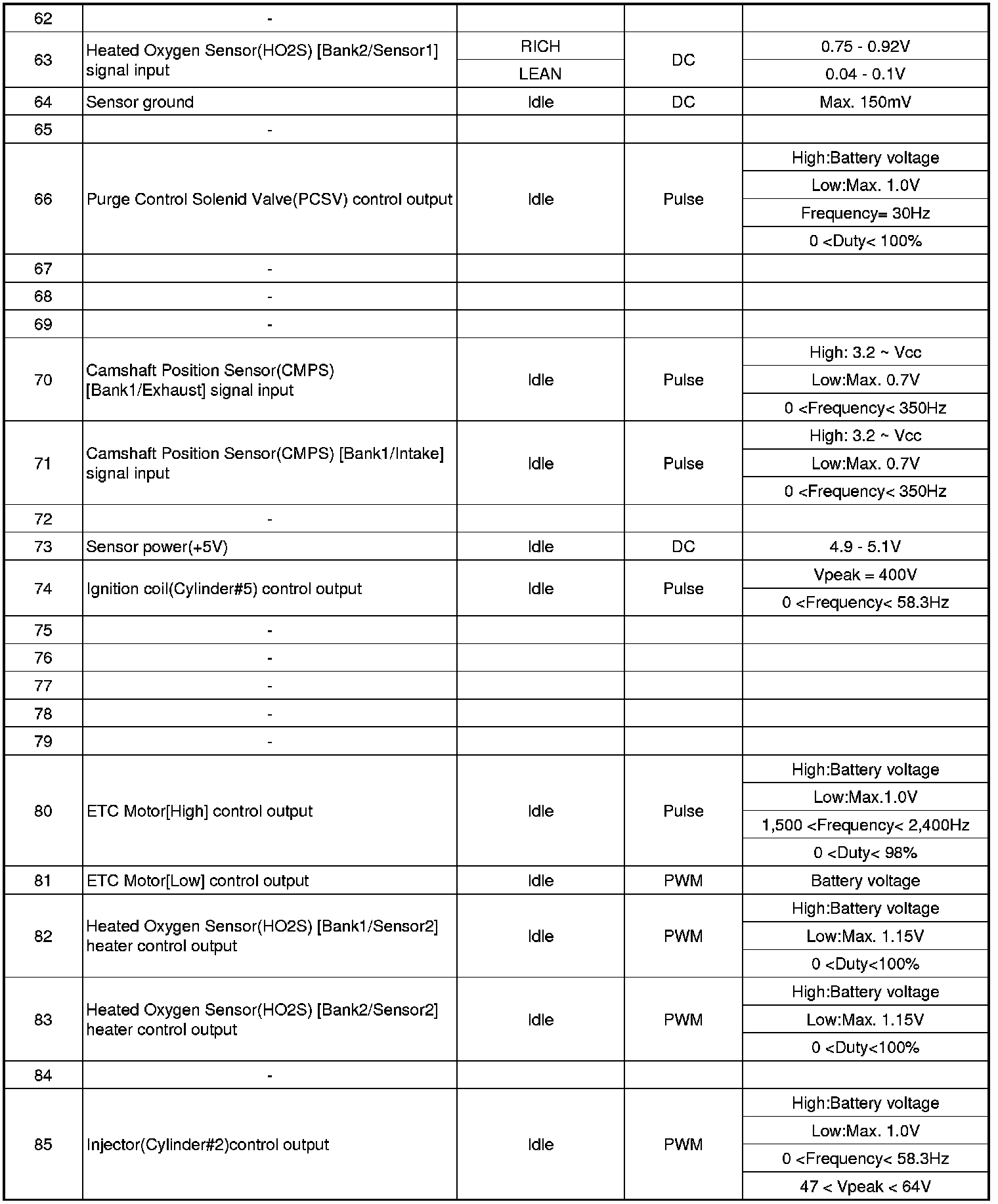

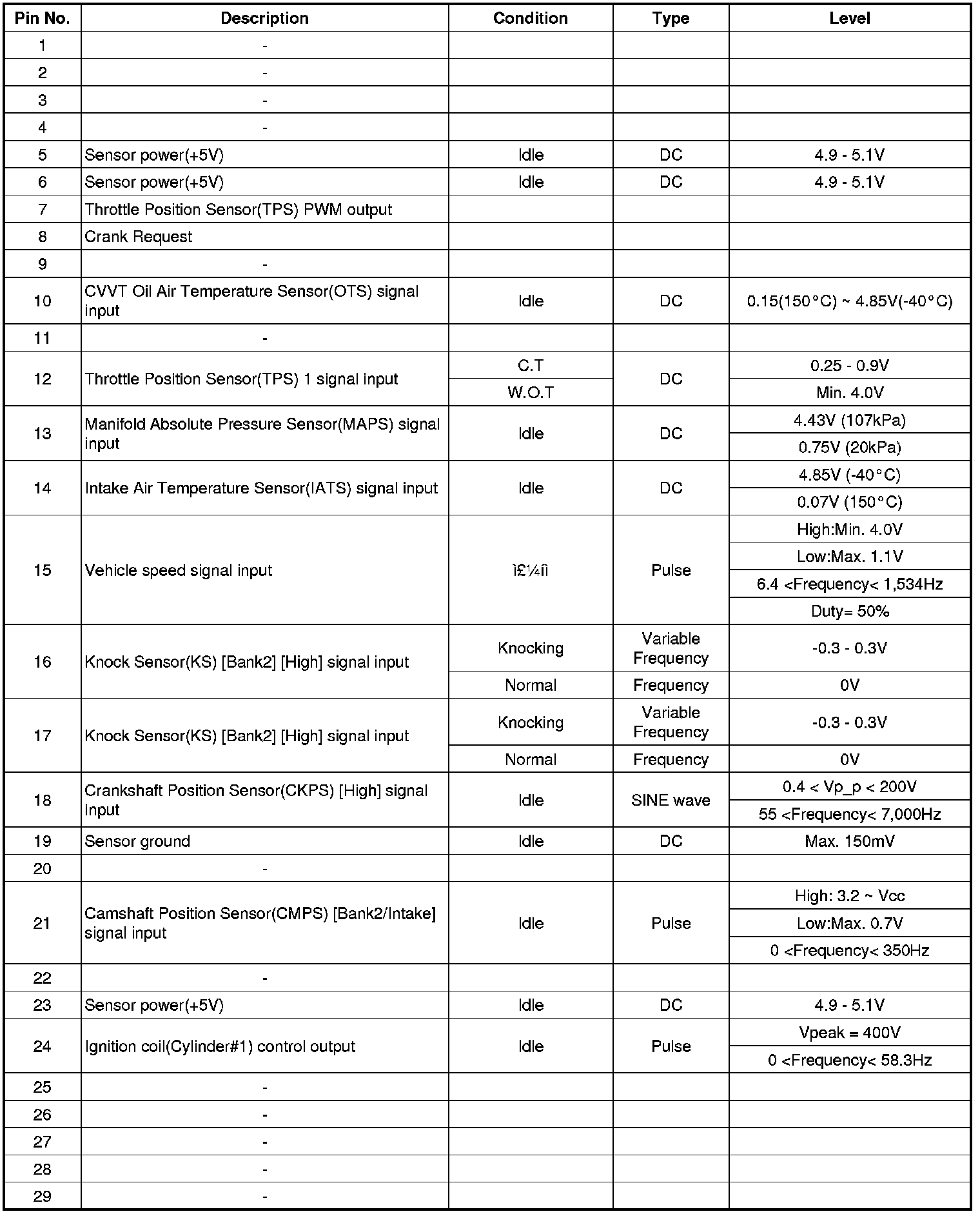

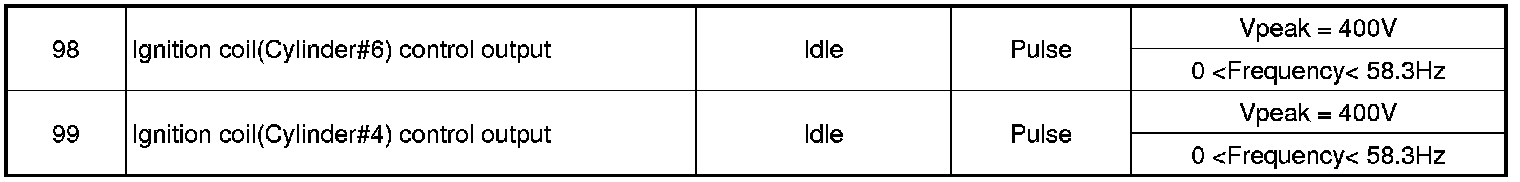

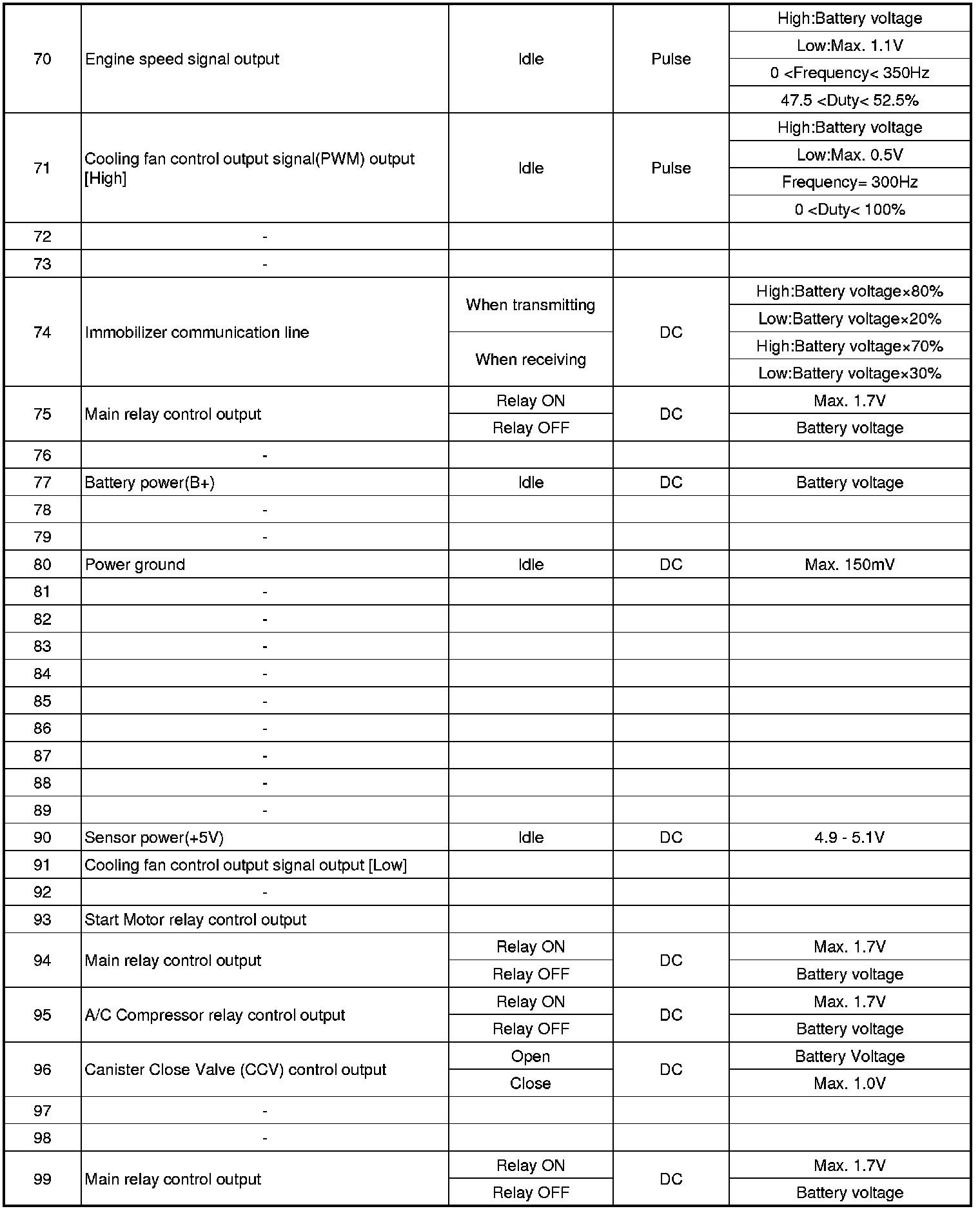

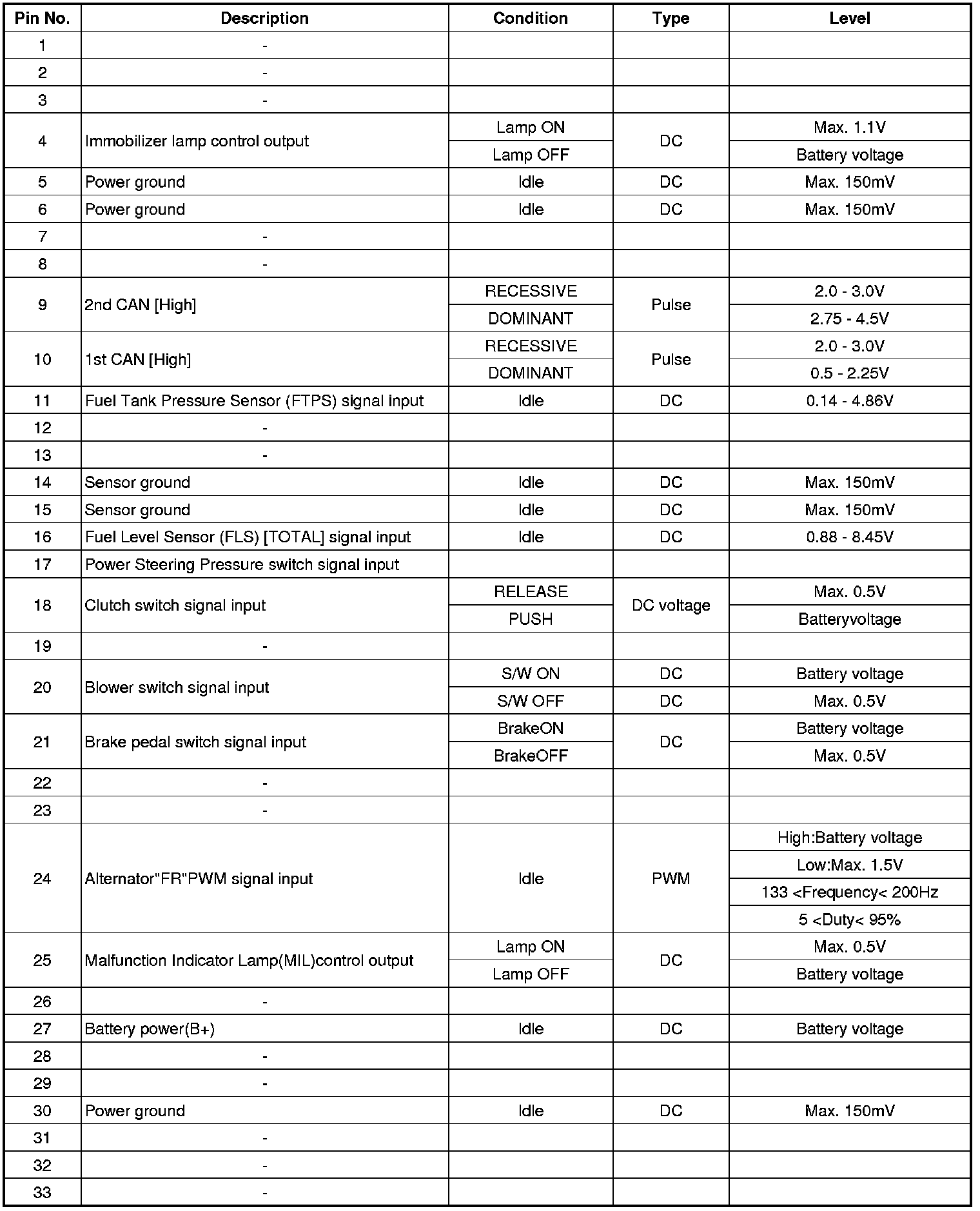

ECM Terminal Input/Output Signal
Connector [ELG-A]

















Connector [CLG-B]
