Body Control Systems

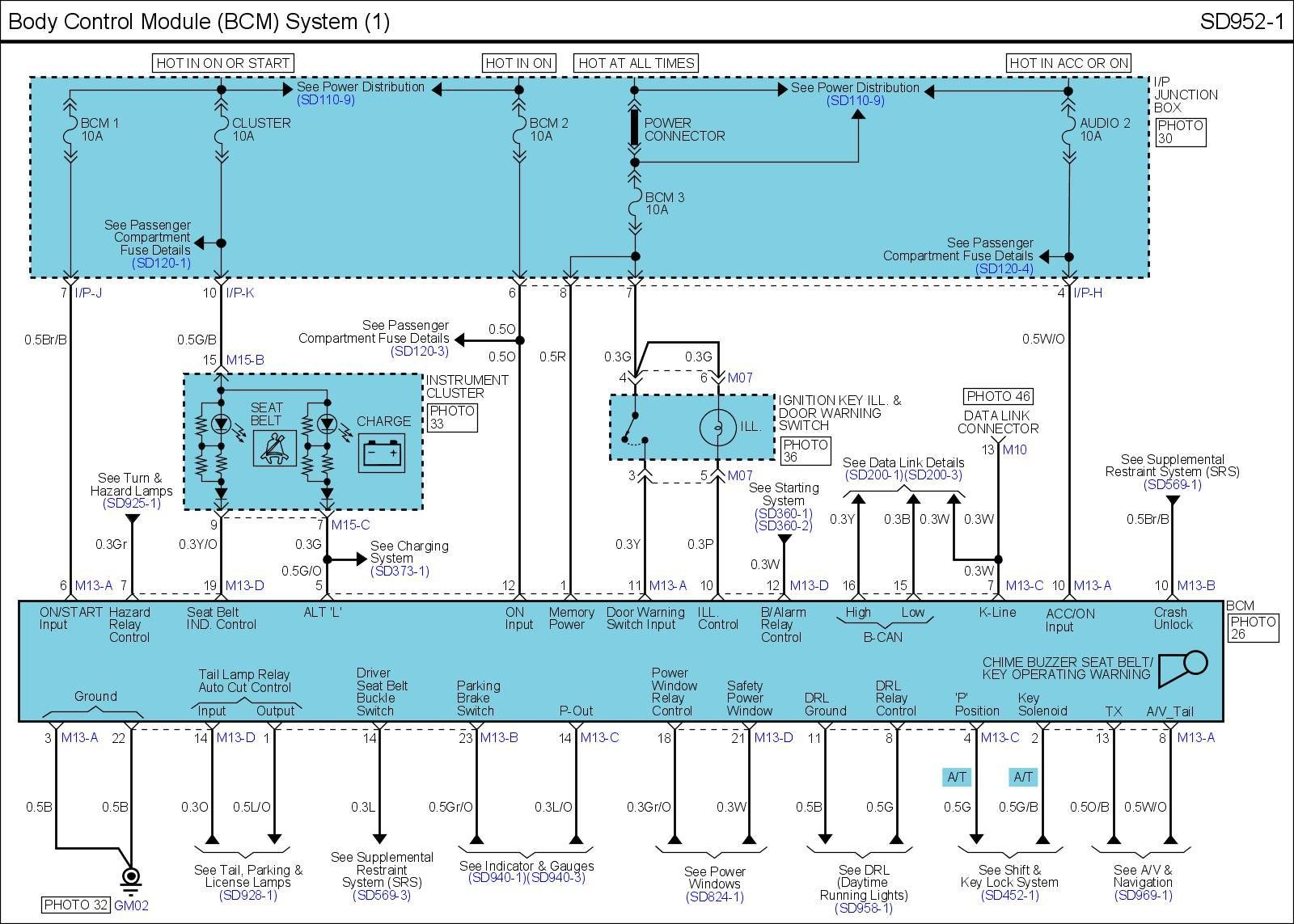

SD952-1 Body Control Module (BCM) System (1):

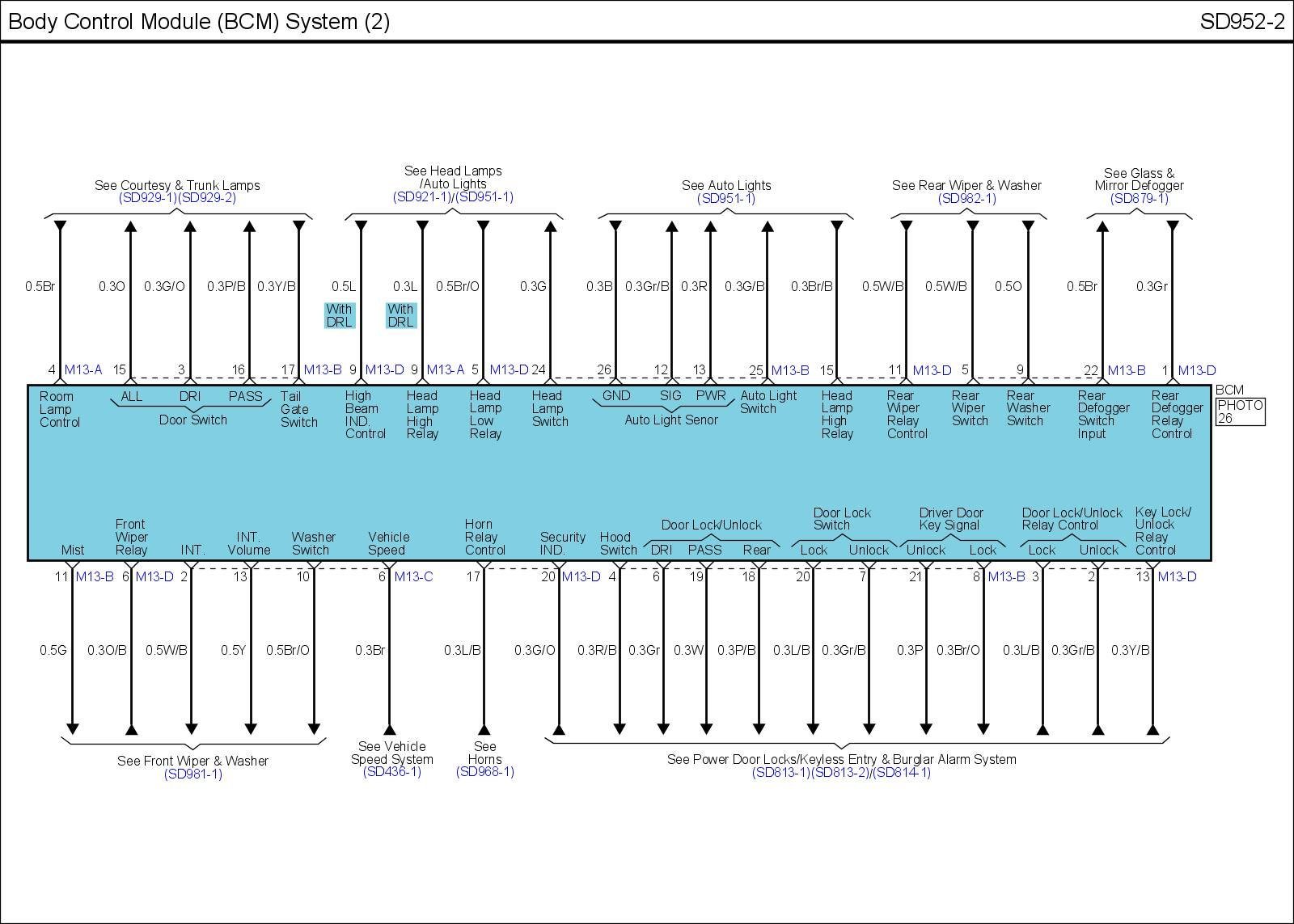

SD952-2 Body Control Module (BCM) System (2):

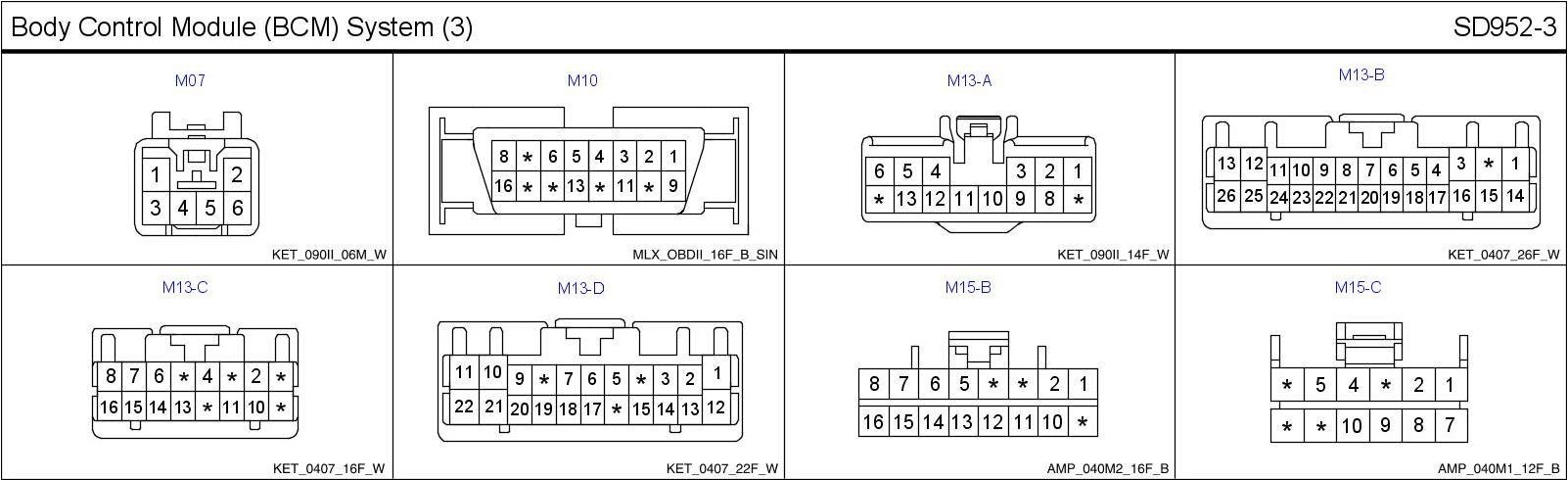

SD952-3 Body Control Module (BCM) System (3):

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
