Santa Fe AWD L4-2.4L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Service and Repair
>>
Heater & A/C Control Unit (Full Automatic)
>>
Components and Components Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

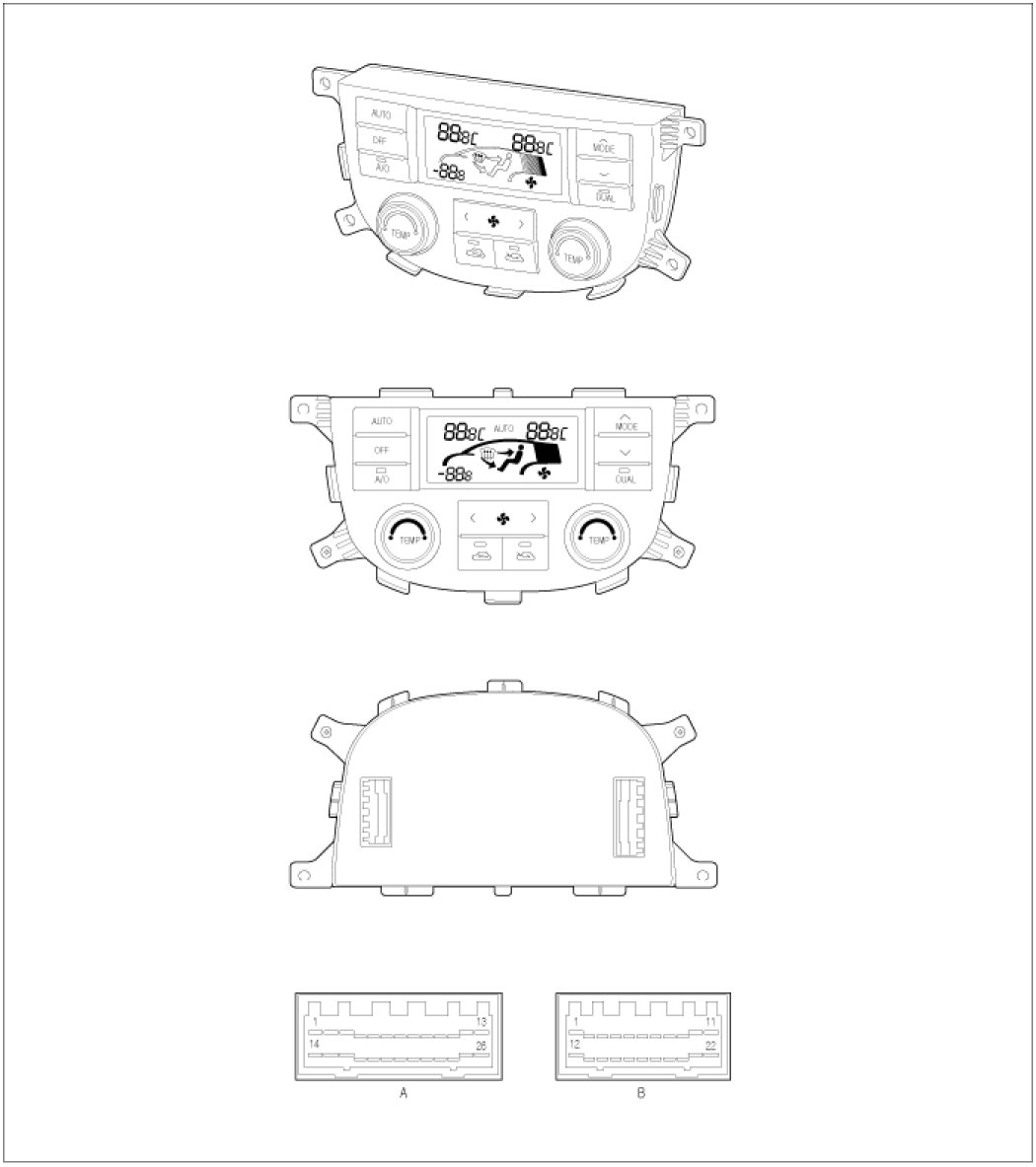

Components and Components Location
Component

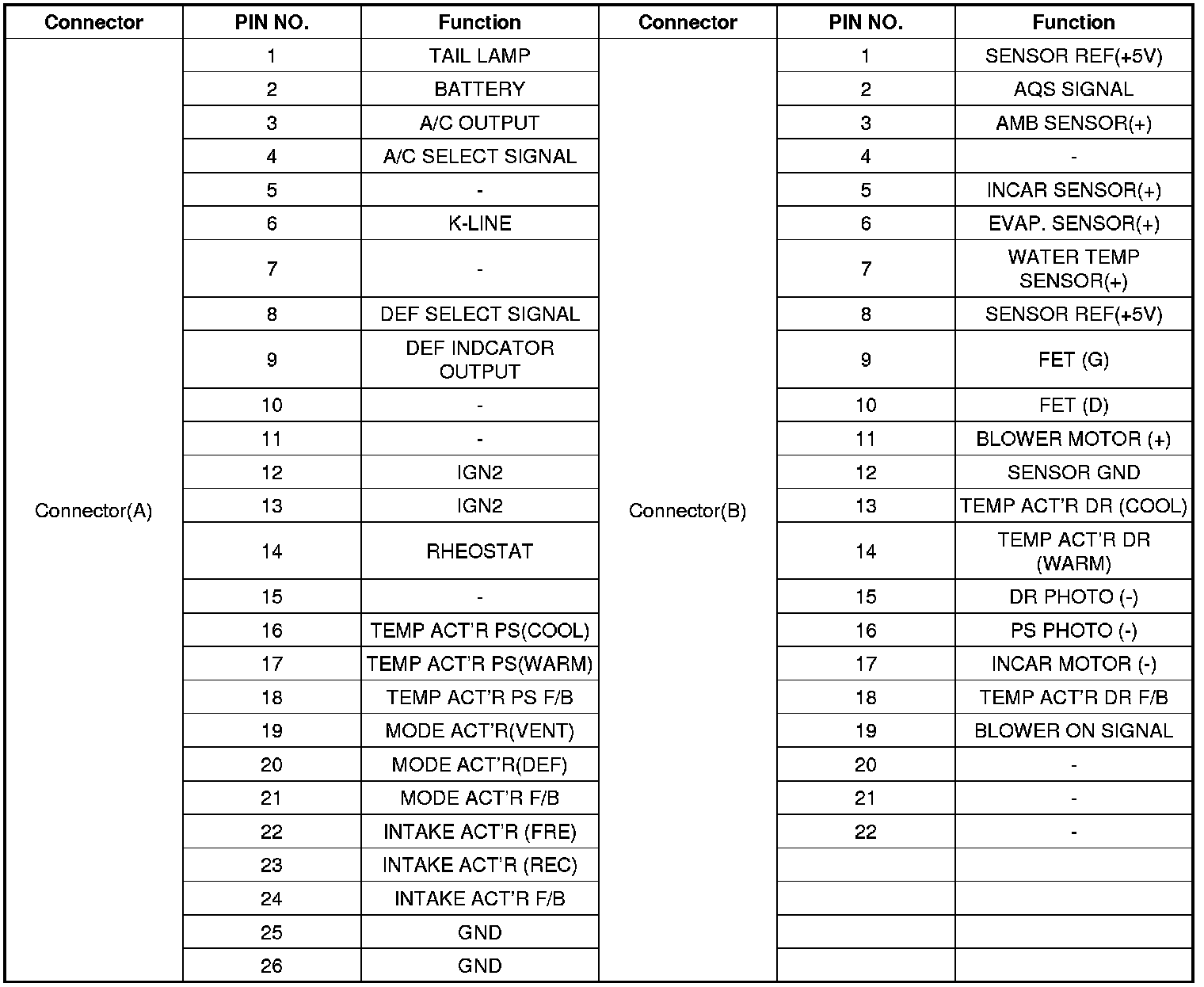

[Connector Pin Function]
