Electrical Diagrams

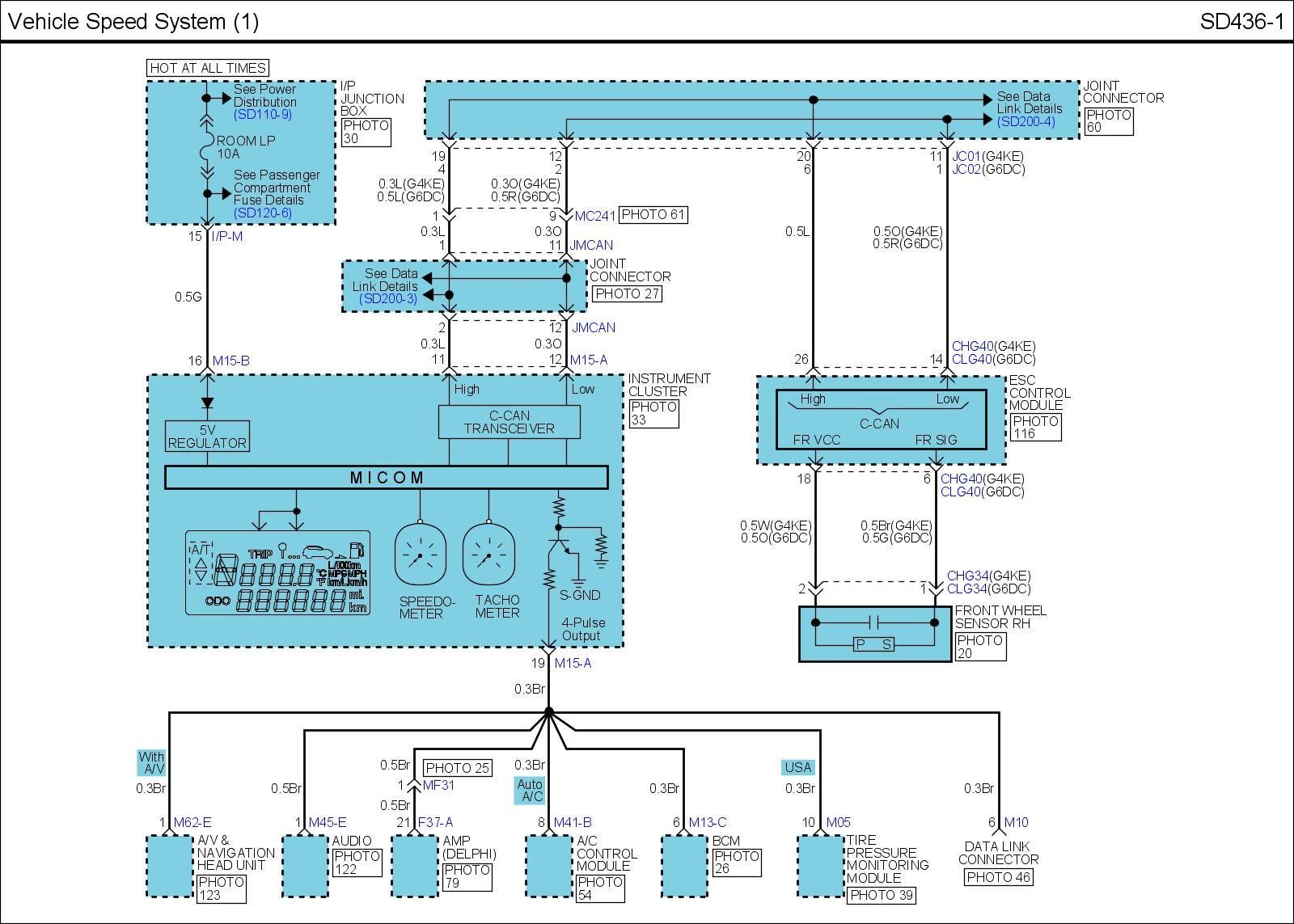

SD436-1 Vehicle Speed System (1):

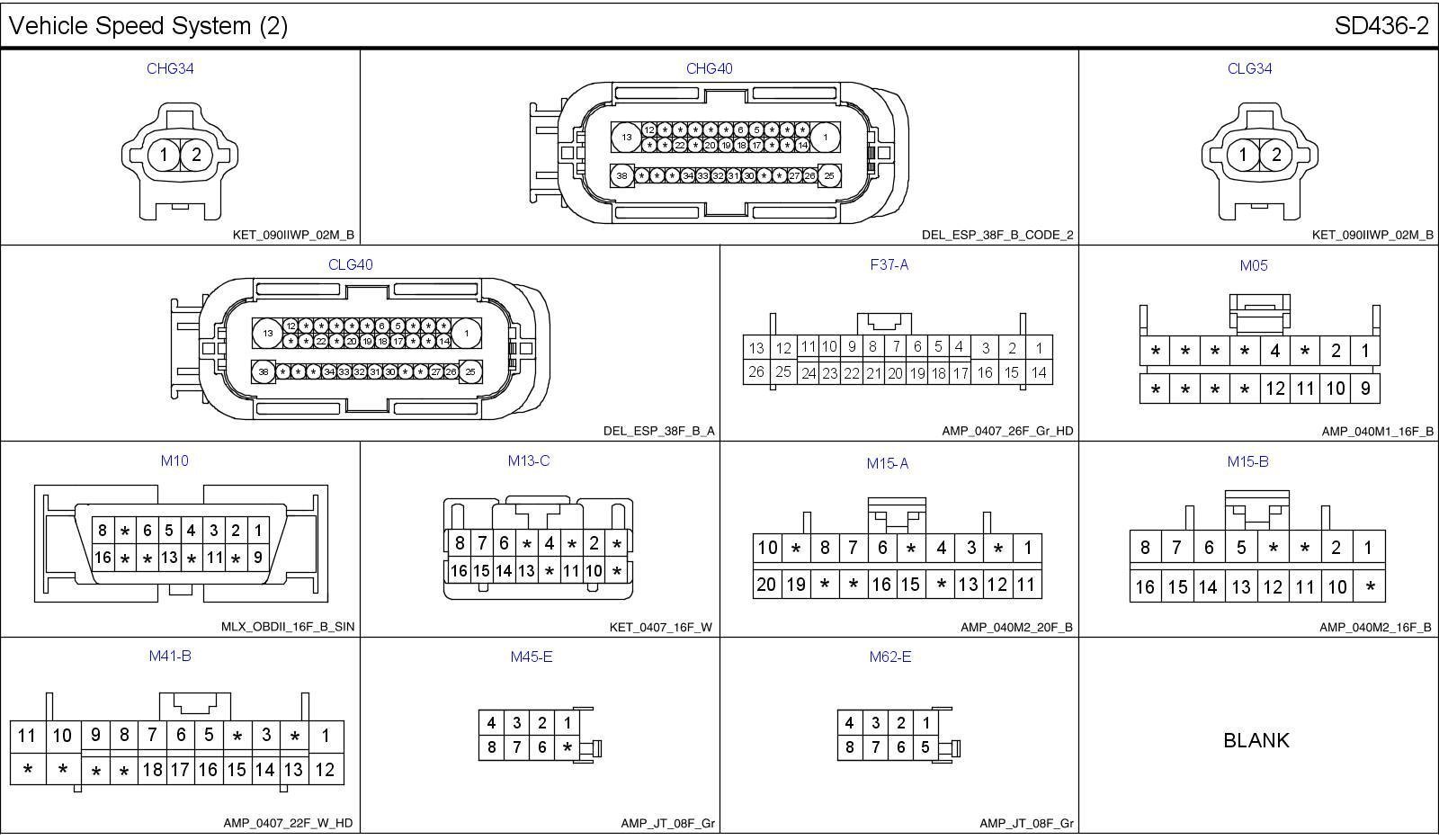

SD436-2 Vehicle Speed System (2):






Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
