Circuit Diagram

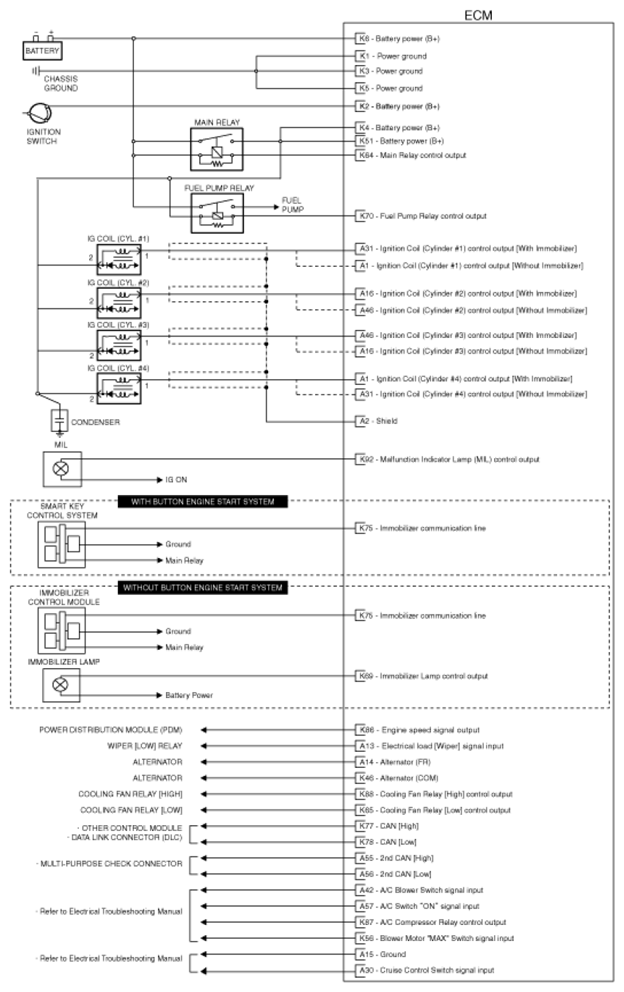

Fig 1: Engine Control System - Circuit Diagram (1 Of 4)
G06846811Courtesy of HYUNDAI MOTOR CO.

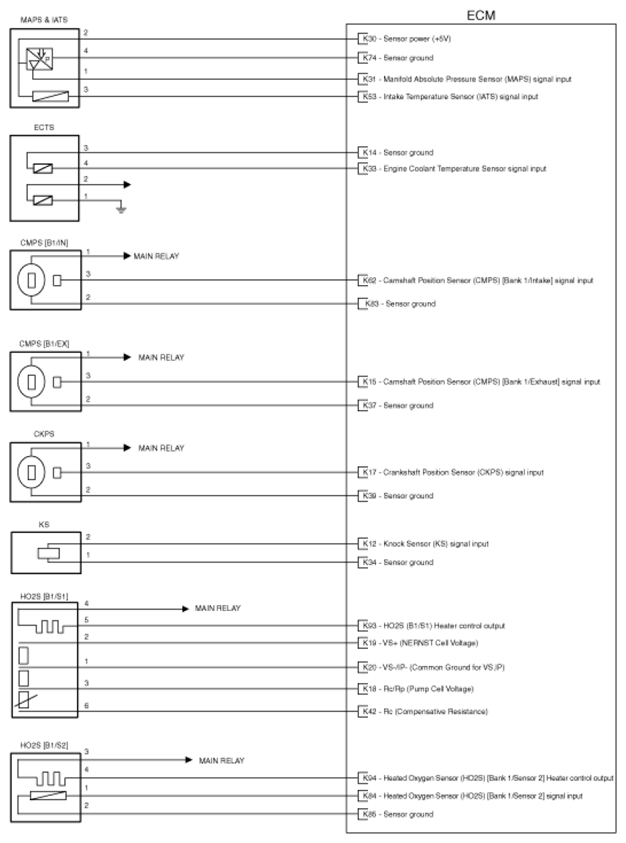

Fig 2: Engine Control System - Circuit Diagram (2 Of 4)
G06846812Courtesy of HYUNDAI MOTOR CO.

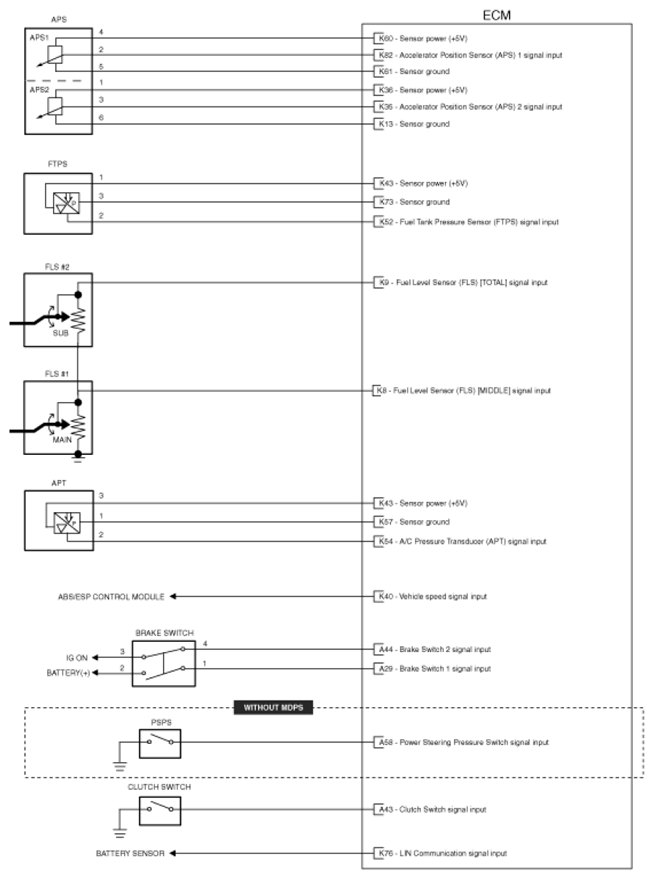

Fig 3: Engine Control System - Circuit Diagram (3 Of 4)
G06846813Courtesy of HYUNDAI MOTOR CO.

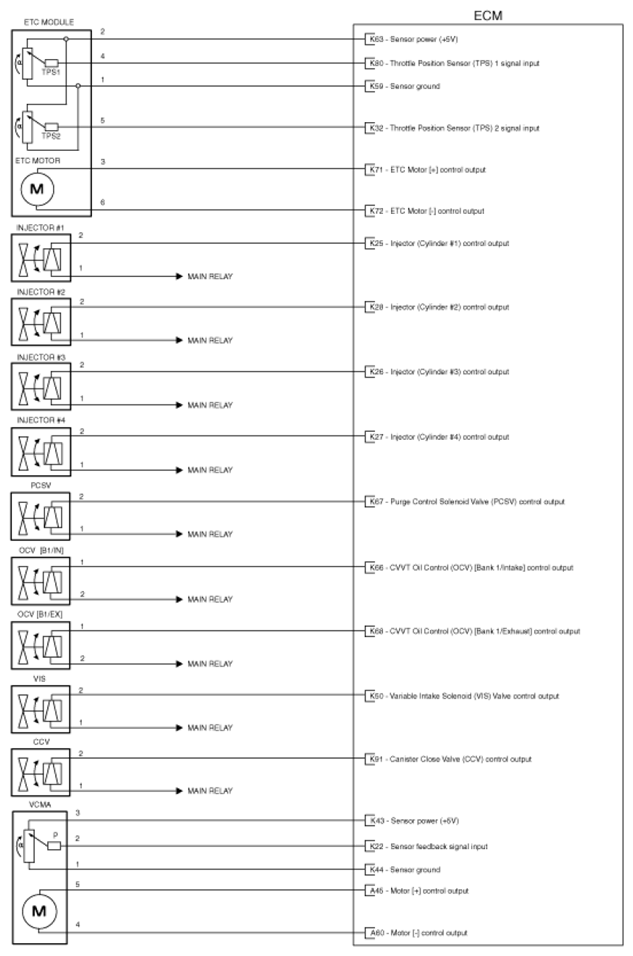

Fig 4: Engine Control System - Circuit Diagram (4 Of 4)
G06846814Courtesy of HYUNDAI MOTOR CO.
