Variant coding Procedure

On-Line type on GDS
1. Ignition "OFF", connect GDS.
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as below.

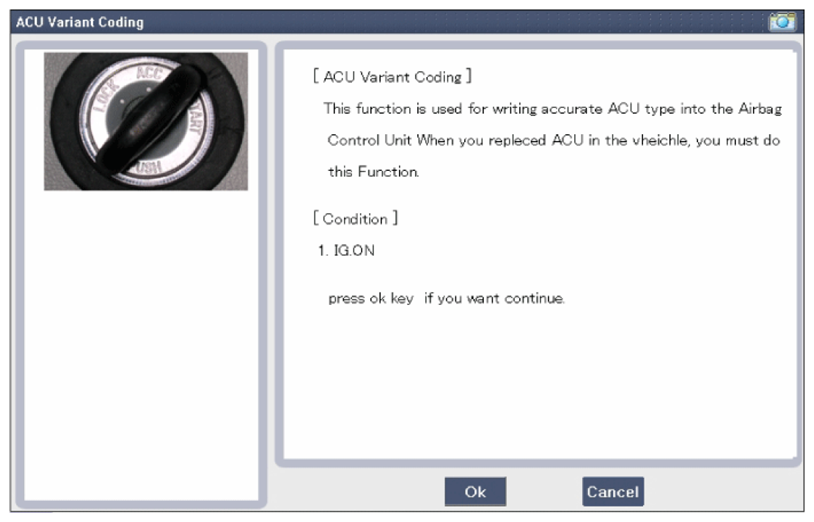

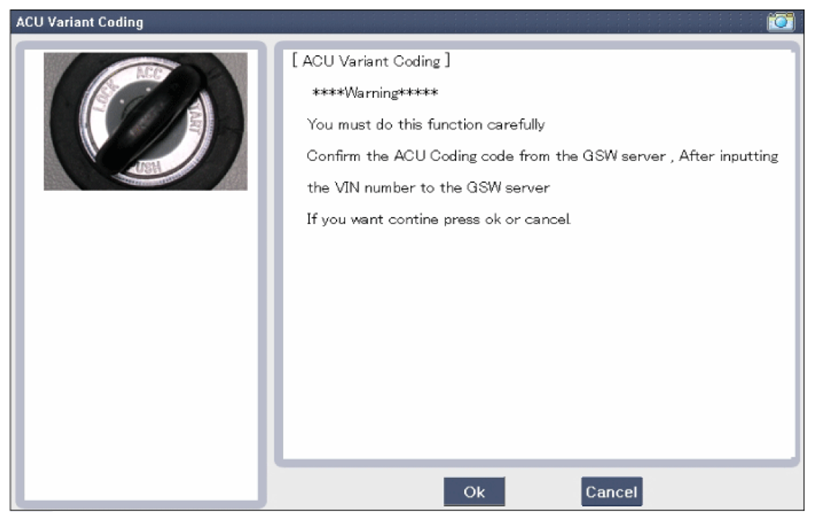

  1. Initial ACU Variant Coding screen

    Fig 1: Identifying Initial ACU Variant Coding Screen Display
    Courtesy of HYUNDAI MOTOR CO.

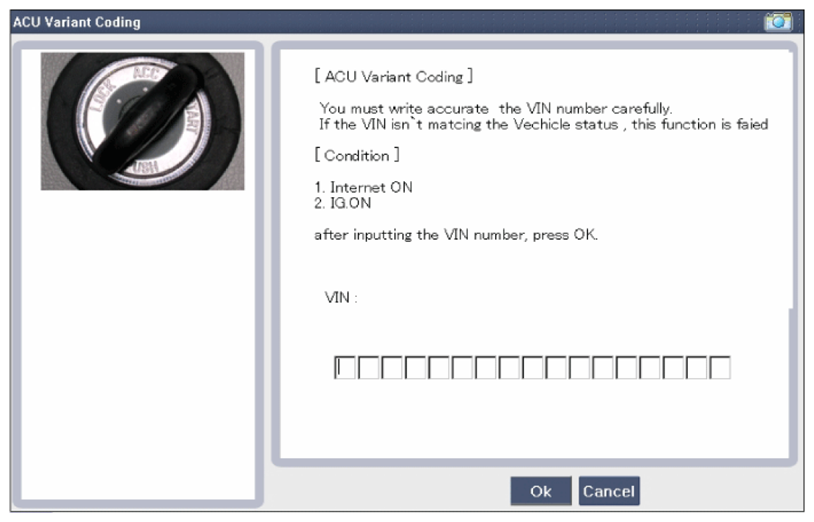

  2. VIN Code entering screen

    Fig 2: Identifying VIN Code Entering Screen
    Courtesy of HYUNDAI MOTOR CO.

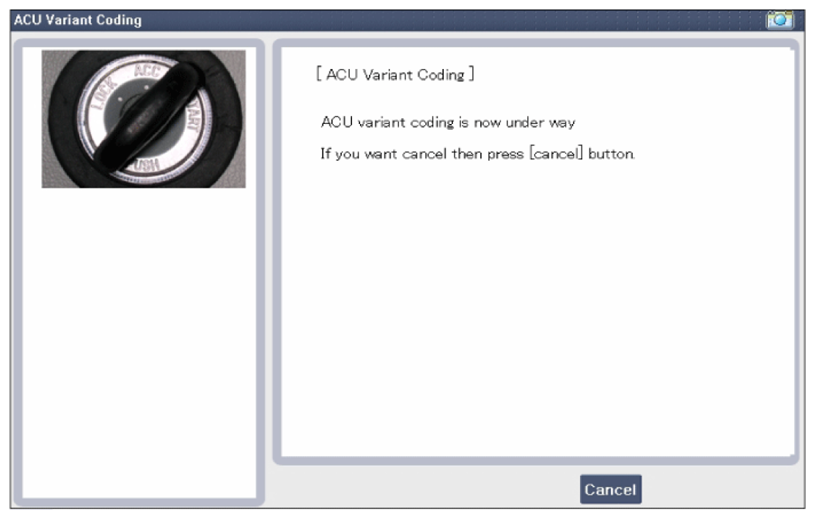

  3. Variant coding's proceeding screen-1

    Fig 3: Identifying Variant Coding's Proceeding Screen (1 Of 2)
    Courtesy of HYUNDAI MOTOR CO.

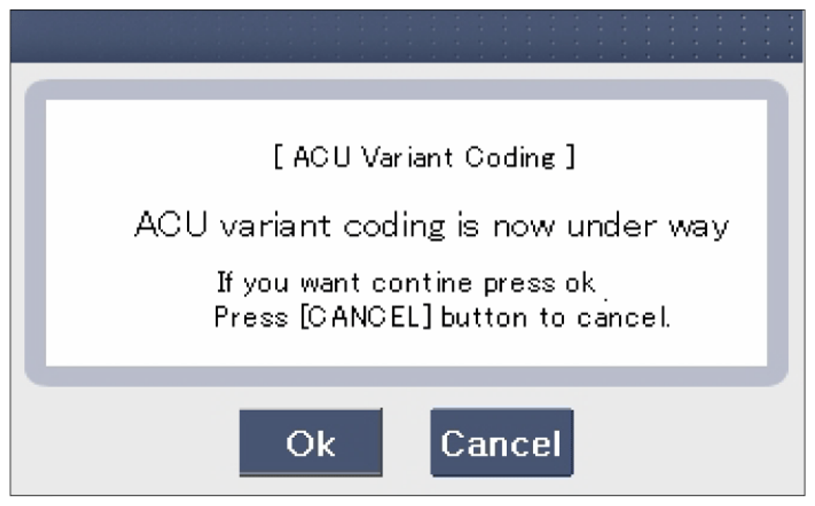

  4. Variant coding's proceeding screen-2

    Fig 4: Identifying Variant Coding's Proceeding Screen (2 Of 2)
    Courtesy of HYUNDAI MOTOR CO.

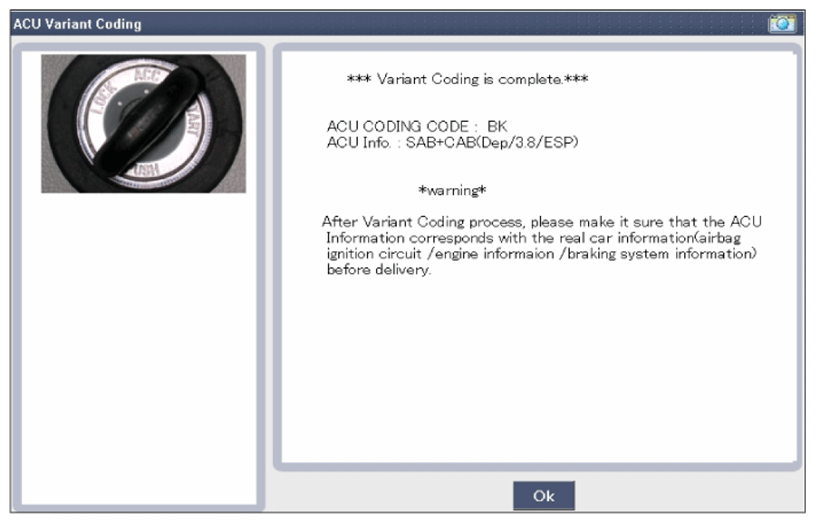

  5. Variant coding is completed

    Fig 5: Identifying Variant Coding's Screen When Completed
    Courtesy of HYUNDAI MOTOR CO.

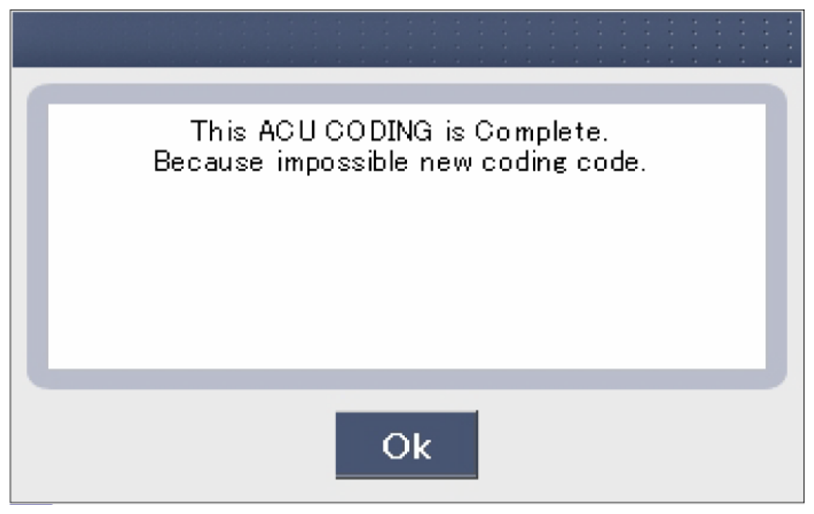

    NOTE:
    This screen is opened when you try the variant coding again on the SRSCM which has bee performed variant coding.

    Fig 6: Identifying Variant Coding Screen When Variant Coding Tried Again
    Courtesy of HYUNDAI MOTOR CO.

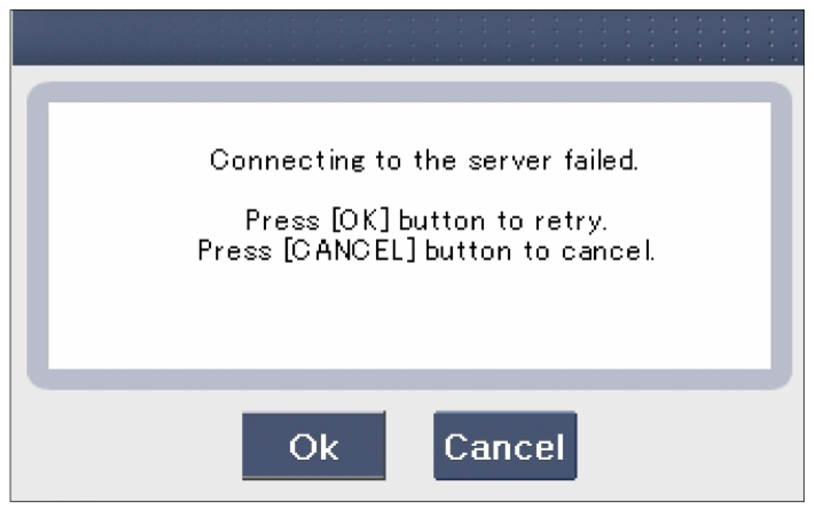

    Screen of communication failure

    Fig 7: Identifying Screen Of Communication Failure
    Courtesy of HYUNDAI MOTOR CO.
Off-line type on GDS (This can be used when not connecting to internet)

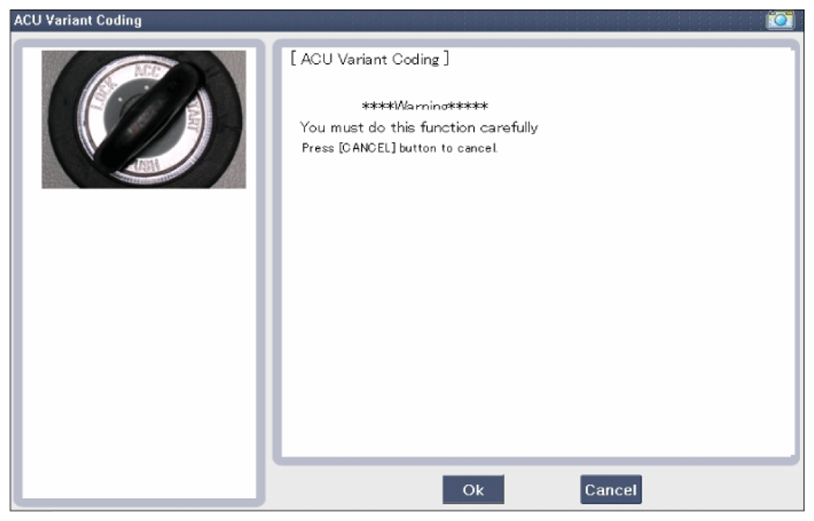

1. Initial ACU Variant Coding screen

  Fig 8: Identifying Initial ACU Variant Coding Screen (Off-Line Mode)
  Courtesy of HYUNDAI MOTOR CO.

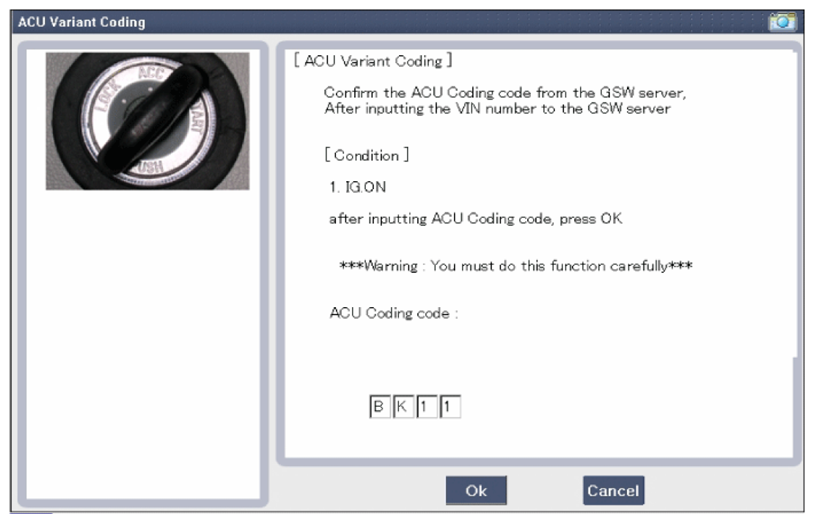

2. ACU CODING Code entering screen

  Fig 9: Identifying ACU CODING Code Entering Screen
  Courtesy of HYUNDAI MOTOR CO.
3. Screen of rechecking ACU CODING code's entering

  Fig 10: Identifying Screen Of Rechecking ACU CODING Code's Entering
  Courtesy of HYUNDAI MOTOR CO.

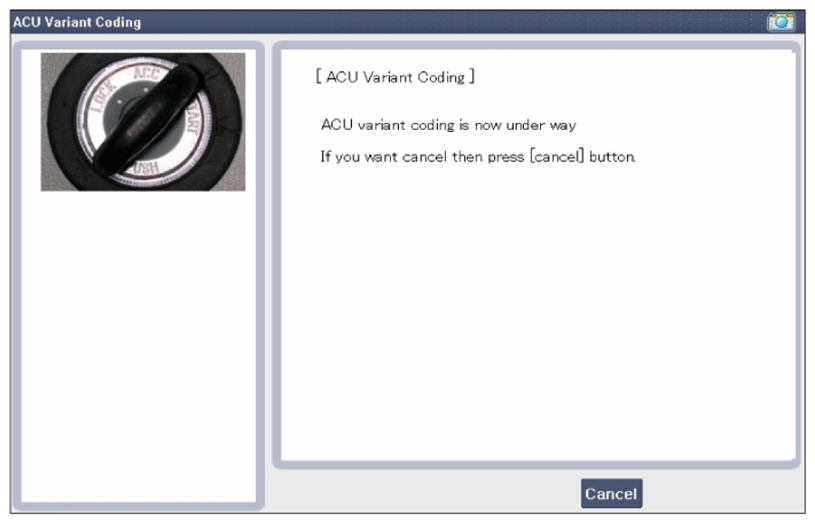

4. Variant coding's proceeding screen-1

  Fig 11: Identifying Variant Coding's Proceeding Screen (1 Of 2)
  Courtesy of HYUNDAI MOTOR CO.
5. Variant coding's proceeding screen-2

  Fig 12: Identifying Variant Coding's Proceeding Screen (2 Of 2)
  Courtesy of HYUNDAI MOTOR CO.
6. Variant coding is completed

  Fig 13: Identifying Variant Coding's Screen When Completed
  Courtesy of HYUNDAI MOTOR CO.
  NOTE:
  1. Screen of Retrying the Variant coding after finishing variant coding

    Fig 14: Identifying Screen Of Retrying Variant Coding After Finishing Variant Coding
    Courtesy of HYUNDAI MOTOR CO.
