Harness Connector

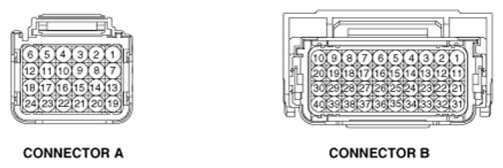

Fig 1: Identifying SRSCM Connector Terminals

Courtesy of HYUNDAI MOTOR CO.

SRSCM CONNECTOR FUNCTIONS

Pin	Function (Connector A)	Pin	Function (Connector B)
1	Airbag Warning Lamp	1	Curtain Airbag [Driver] Low
2	Power Ground	2	Curtain Airbag [Driver] High
3	(2nd Stage) Driver Airbag Low	3	-
4	(2nd Stage) Driver Airbag High	4	-
5	(1st Stage) Driver Airbag Low	5	-
6	-	6	-
7	-	7	Side Airbag [Front-Passenger] High
8	(2nd Stage) Passenger Airbag Low	8	Side Airbag [Front-Passenger] Low
9	(2nd Stage) Passenger Airbag High	9	Seat Belt Pretensioner [Front-Passenger] Low
10	(1st Stage) Passenger Airbag High	10	Seat Belt Pretensioner [Front-Passenger] High
11	(1st Stage) Passenger Airbag Low	11	Curtain Airbag [Passenger] Low
12	Crash Output	12	Curtain Airbag [Passenger] High
13	-	13	-
14	Front Impact Sensor [Driver] Low	14	-
15	Front Impact Sensor [Driver] High	15	-
16	Front Impact Sensor [Passenger] High	16	-
17	Front Impact Sensor [Passenger] Low	17	Seat Belt Pretensioner [Front-Driver] High
18	-	18	Seat Belt Pretensioner [Front-Driver] Low
19	CAN-High	19	Side Airbag [Front-Driver] Low
20	CAN-Low	20	Side Airbag [Front-Driver] High
21	K-Line Diagnostic	21	Side Impact Sensor [Rear-Driver] Low
22	Telltale Warning Lamp	22	Side Impact Sensor [Rear-Driver] High
23	Ignition	23	Side Impact Sensor [Rear-Passenger] High
24	-	24	Side Impact Sensor [Rear-Passenger] Low
		25	Seat Belt Buckle Switch [Driver] High
		26	Pressure Side Impact Sensor [Front-Driver] High
		27	Pressure Side Impact Sensor [Front-Driver] Low
		28	Pressure Side Impact Sensor [Front-Passenger] Low
		29	Pressure Side Impact Sensor [Front-Passenger] High
		30	Seat Belt Buckle Switch [Passenger] High
		31	Seat Track Position Sensor [Driver] Low
		32	Seat Track Position Sensor [Driver] High
		33	-
		34	-
		35	Seat Belt Buckle Switch [Driver] Low
		36	-
		37	-
		38	-
		39	-
		40	Seat Belt Buckle Switch [Passenger] Low
