Components and Components Location: Components: Notes

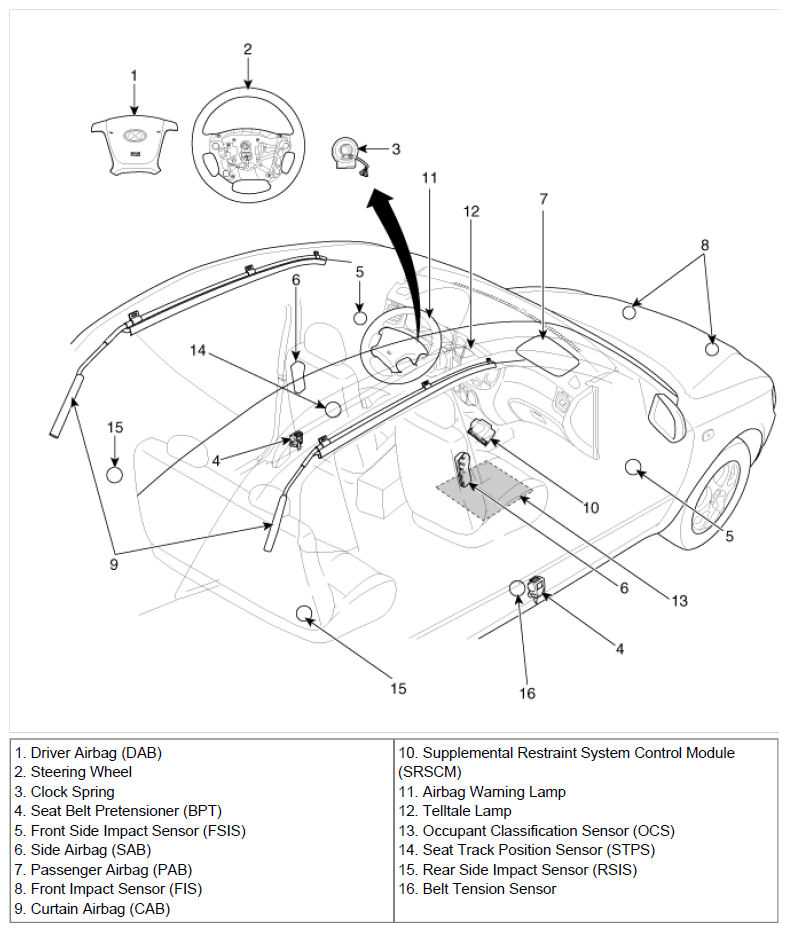

Fig 1: Vehicle Restraint Component Location
G06847427Courtesy of HYUNDAI MOTOR CO.
