Hyundai
>>
2011
>>
Sonata GLS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.4L - Except HEV
>>
CVVT Oil Control Valve (OCV)
>>
Schematic Diagrams
>>
Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Diagram

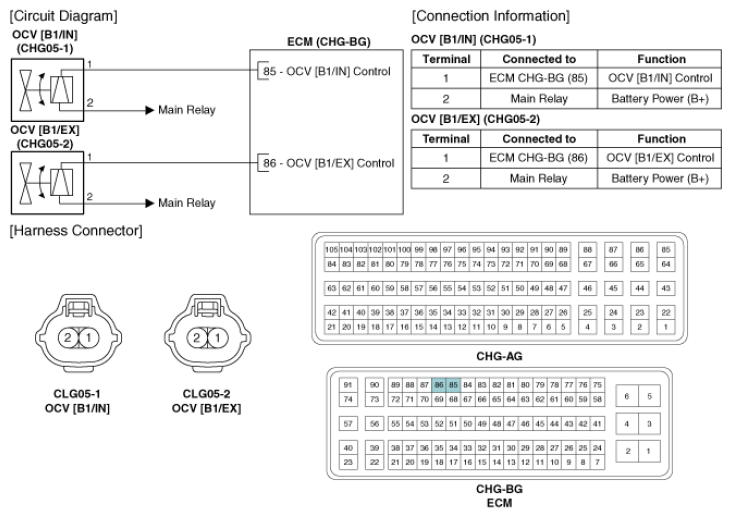

Fig 1: OCV Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
