PDM Relay Box (With Smart Key)

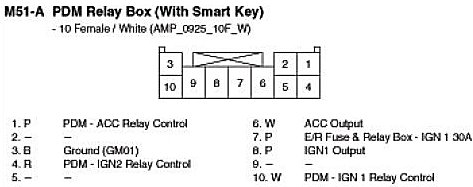

M51-A PDM Relay Box (With Smart Key):

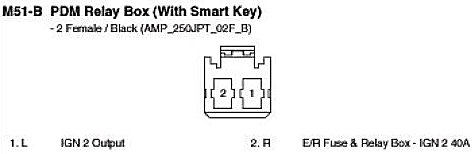

M51-B PDM Relay Box (With Smart Key):
