Key Interlock Control

  1. Data flow

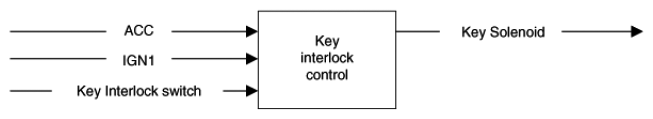

    Fig 1: Key Interlock Control Communication Diagram
    G06873639Courtesy of HYUNDAI MOTOR CO.
  2. Key Interlock Control
    1. Key solenoid to the output of the ON KEY to make the subject does not fall. (if IGN1=ON or ACC=ON subject to the key Interlock switch input is OFF)
    2. In addition to the above conditions, the KEY OFF key solenoid output to fall out, to make conditions.
