Components and Components Location: Components

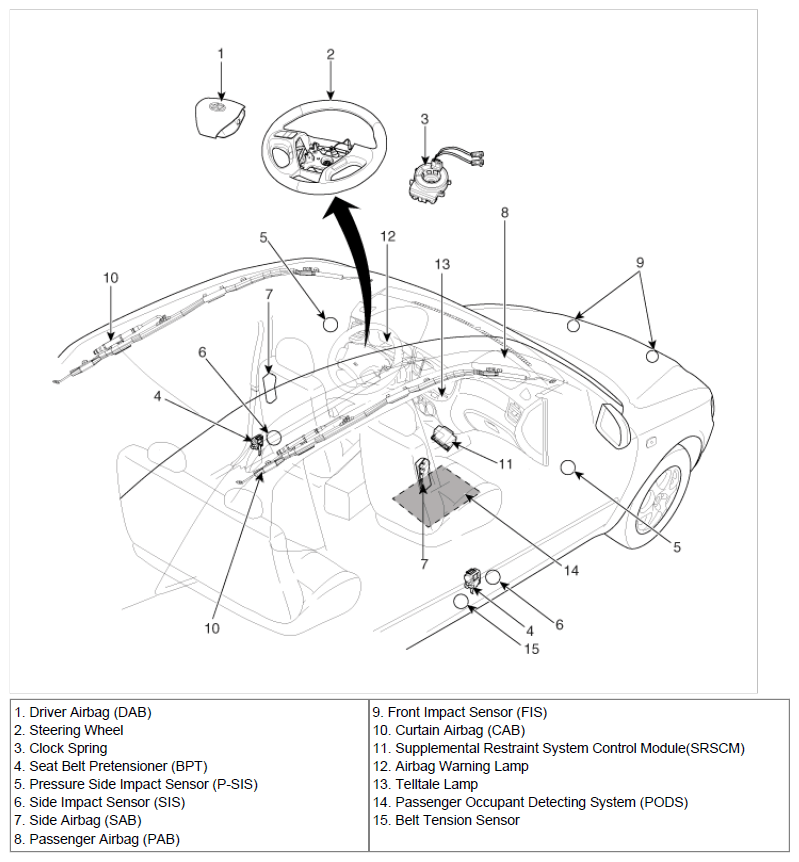

Fig 1: Identifying Restraint Components
G06873276Courtesy of HYUNDAI MOTOR CO.
