EPS Control Module Connector End View (M24)

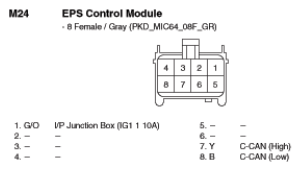

Fig 1: EPS Control Module Connector End View (M24)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
