Circuit Diagram: (A/T)

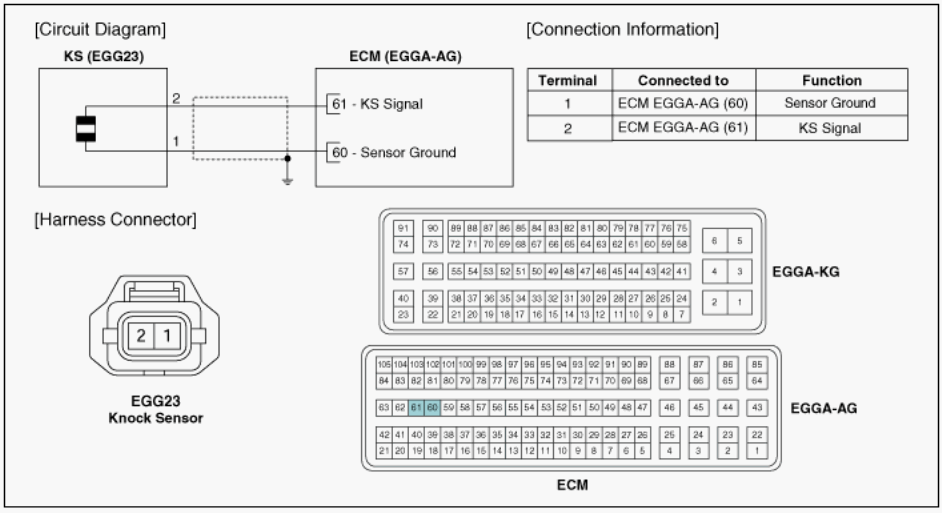

Fig 1: Knock Sensor - Circuit Diagram (A/T)

G08804444

Courtesy of HYUNDAI MOTOR AMERICA
