Diagnostic Circuit Diagram

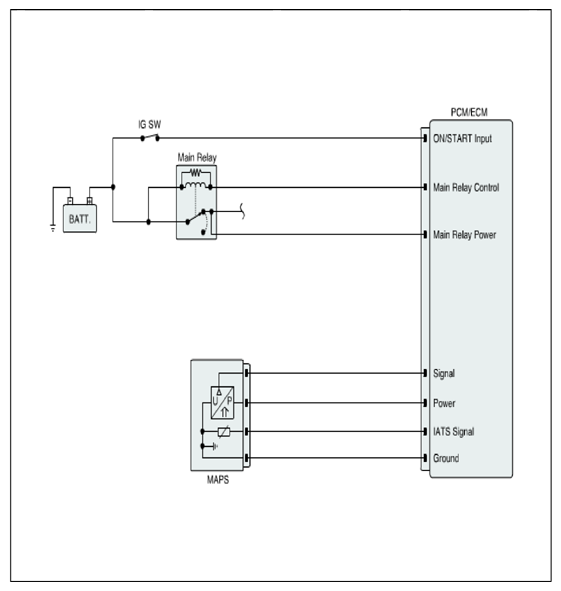

Fig 1: MAPS Diagnostic Circuit Diagram
G08802080Courtesy of HYUNDAI MOTOR AMERICA

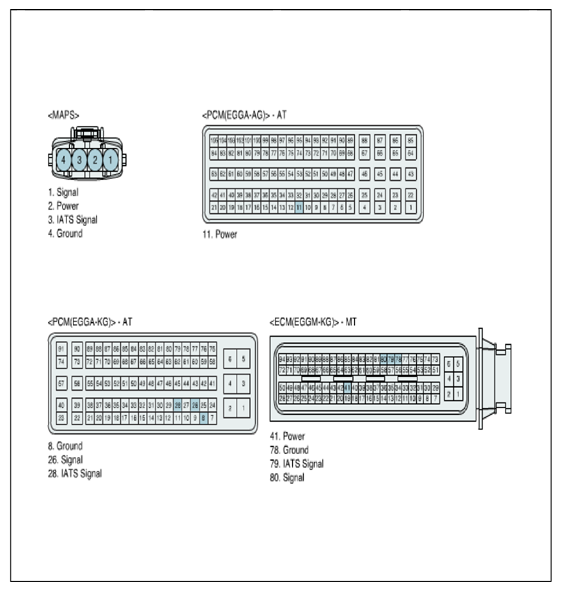

Fig 2: Identifying MAPS, PCM And ECM Connector Terminals
G08802081Courtesy of HYUNDAI MOTOR AMERICA
