Diagnostic Circuit Diagram

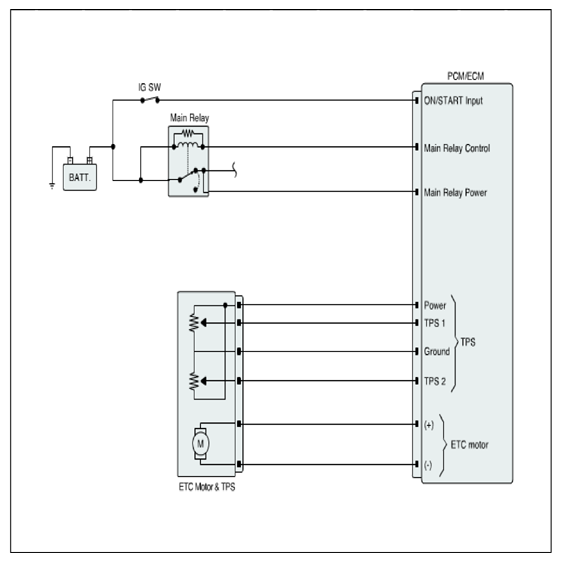

Fig 1: Identifying ETC Motor And TPS Diagnostic Circuit Diagram
G08802121Courtesy of HYUNDAI MOTOR AMERICA

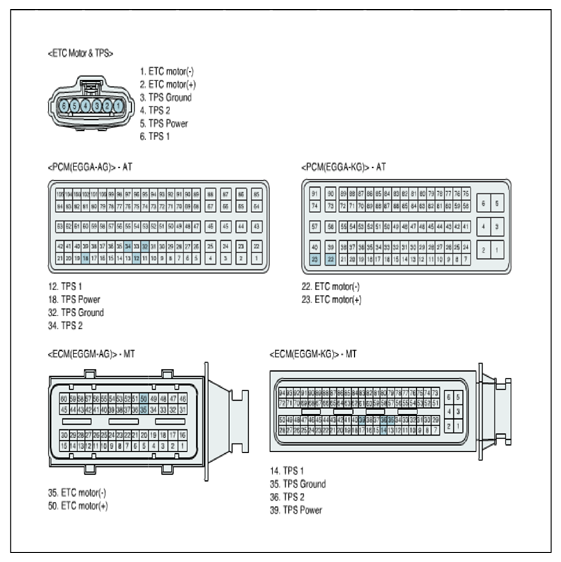

Fig 2: Identifying ETC Motor And TPS, PCM And ECM Connector Terminals
G08802122Courtesy of HYUNDAI MOTOR AMERICA
