Diagnostic Circuit Diagram

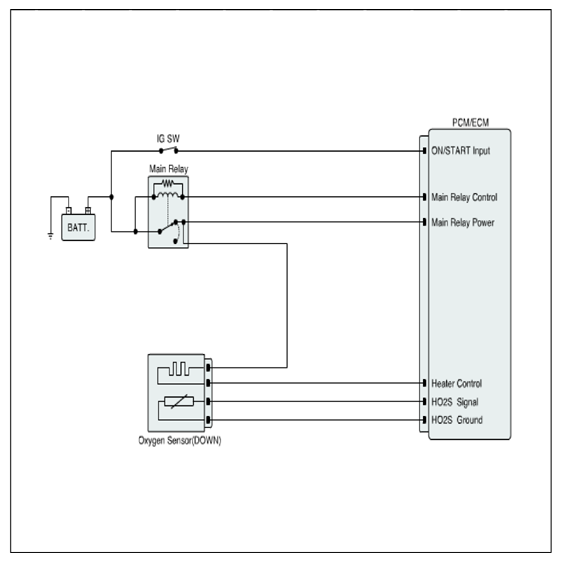

Fig 1: Oxygen Sensor - Circuit Diagram
G08802230Courtesy of HYUNDAI MOTOR AMERICA

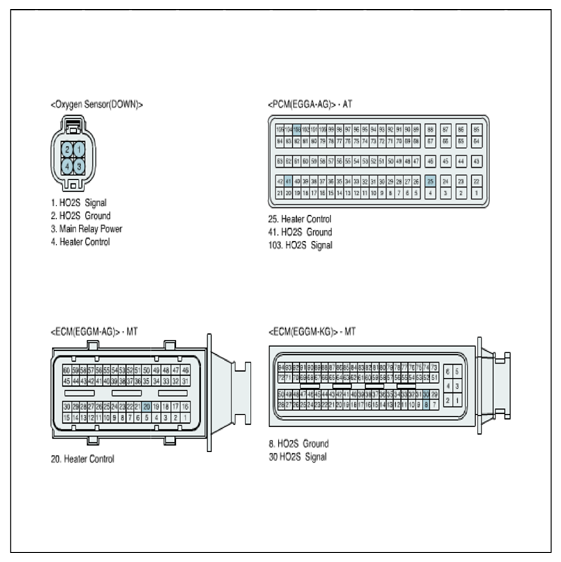

Fig 2: Identifying Oxygen Sensor, ECM And PCM Connector Terminals
G08802231Courtesy of HYUNDAI MOTOR AMERICA
