Diagnostic Circuit Diagram

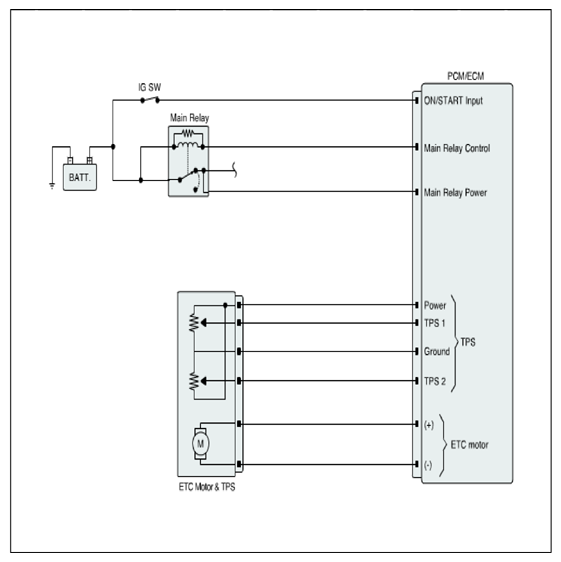

Fig 1: ETC Motor And TPS - Circuit Diagram
G08802301Courtesy of HYUNDAI MOTOR AMERICA

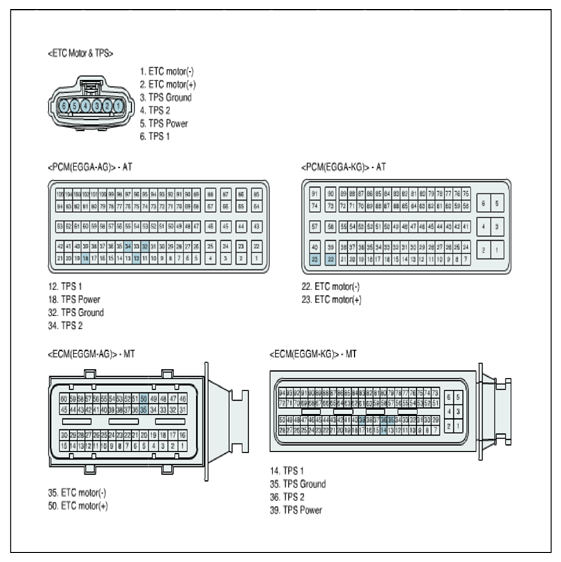

Fig 2: Identifying ETC Motor, TPS, PCM And ECM Connector Terminals
G08802302Courtesy of HYUNDAI MOTOR AMERICA
