Diagnostic Circuit Diagram

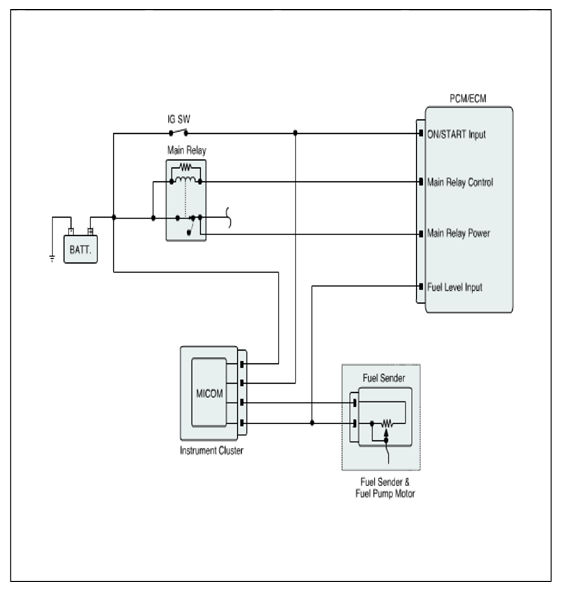

Fig 1: Fuel Level Sender - Circuit Diagram
G08802544Courtesy of HYUNDAI MOTOR AMERICA

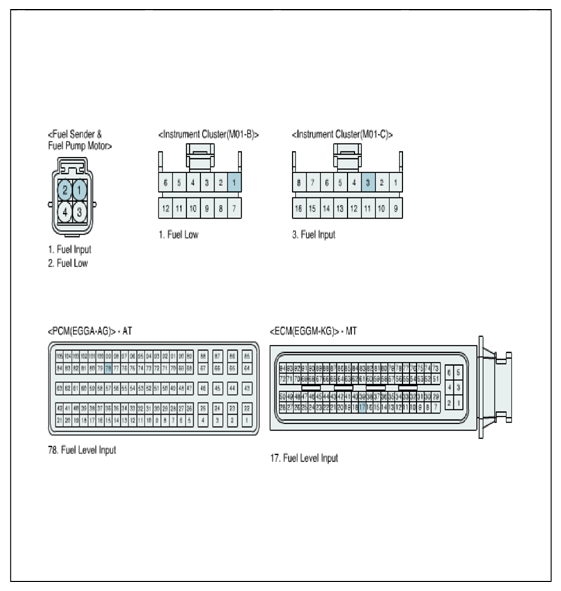

Fig 2: Identifying Fuel Level Sender, Instrument Cluster, PCM And ECM Connector Terminals
G08802545Courtesy of HYUNDAI MOTOR AMERICA
