Diagnostic Circuit Diagram

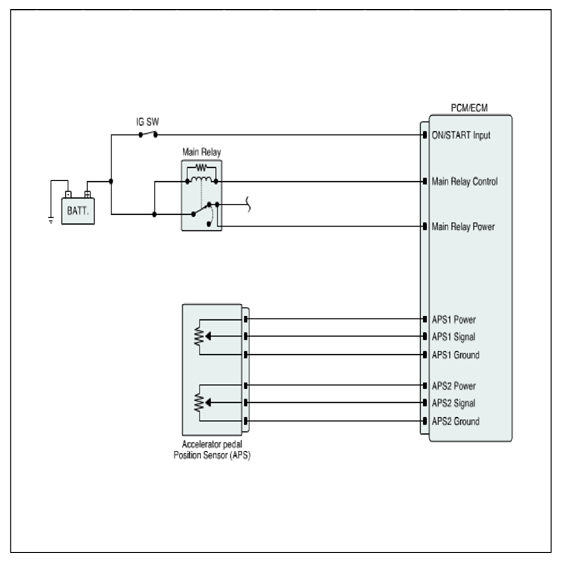

Fig 1: APS Diagnostic Circuit Diagram
G08802702Courtesy of HYUNDAI MOTOR AMERICA

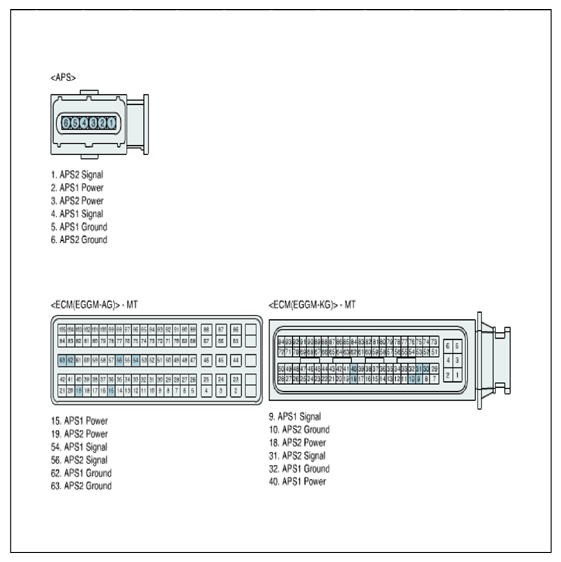

Fig 2: APS And ECM Connector Terminals
G08802703Courtesy of HYUNDAI MOTOR AMERICA
