Repair procedures: Adjustment

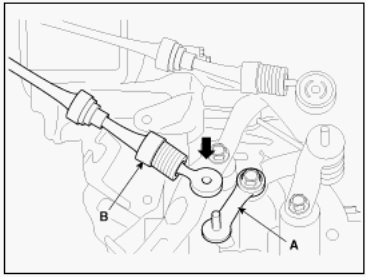

Install the selected cable (B) to the selected lever (A) of the manual transaxle in engine room.

Fig 1: Identifying Selected Cable And Lever
Courtesy of HYUNDAI MOTOR AMERICA

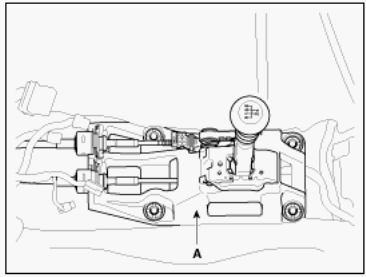

Assemble the shift lever assembly (A) to the vehicle body.

Fig 2: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR AMERICA

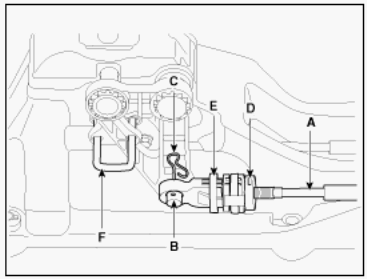

Install the following items;
1. Insert the selected cable (A) to the shift lever assembly pin (B).
2. Install the snap pin (C).
3. Be careful the shift lever not to move left or right side, push the lock piece (D) until sounds.
4. You have to push in the adjust (E).
5. Remove the neutral position pin (F).

  Fig 3: Identifying Shift Lever Assembly Components
  Courtesy of HYUNDAI MOTOR AMERICA
