Fuse: Locations

Fuse & Relay Information

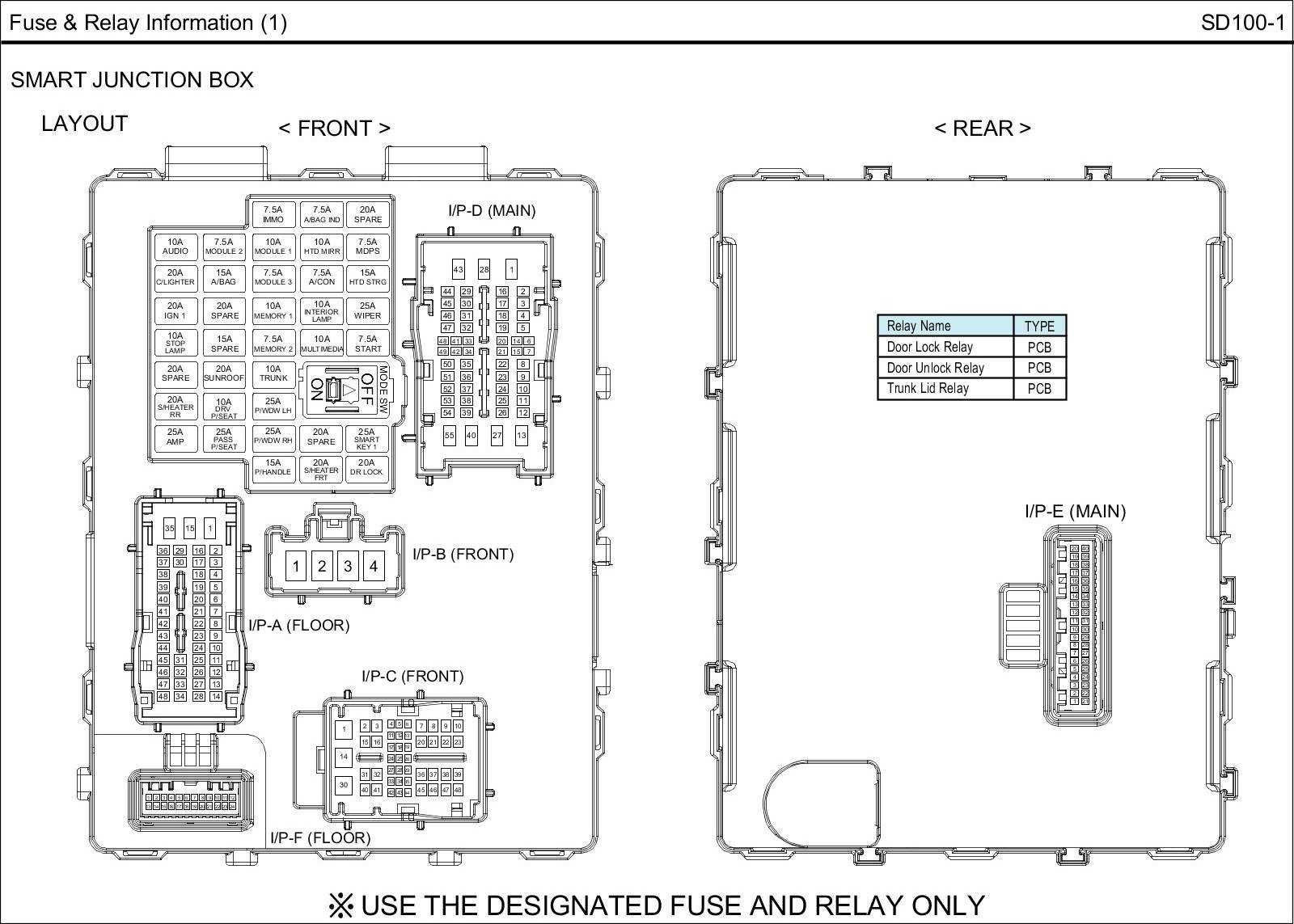

Smart Junction Box View:

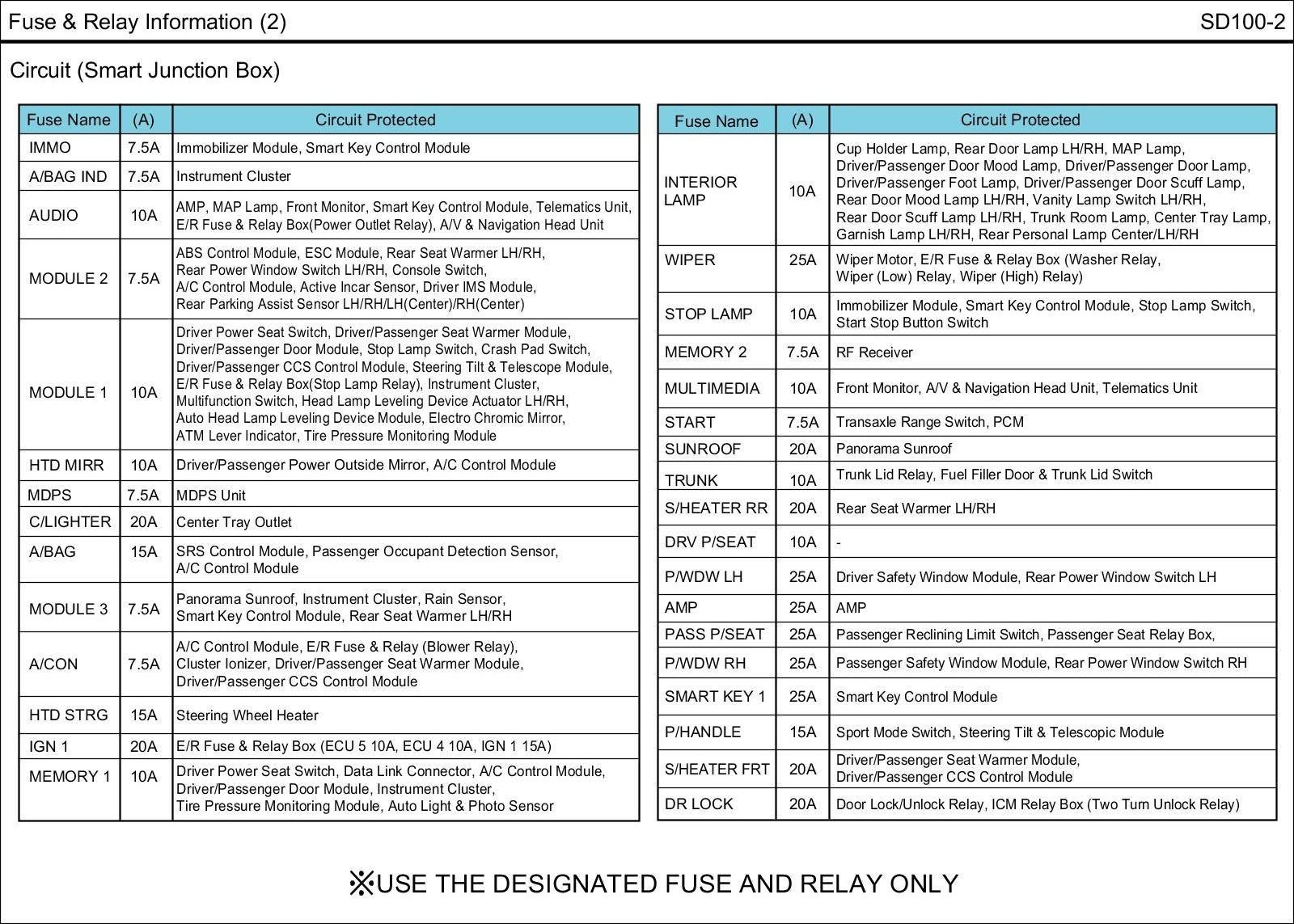

Smart Junction Box Circuit Details:

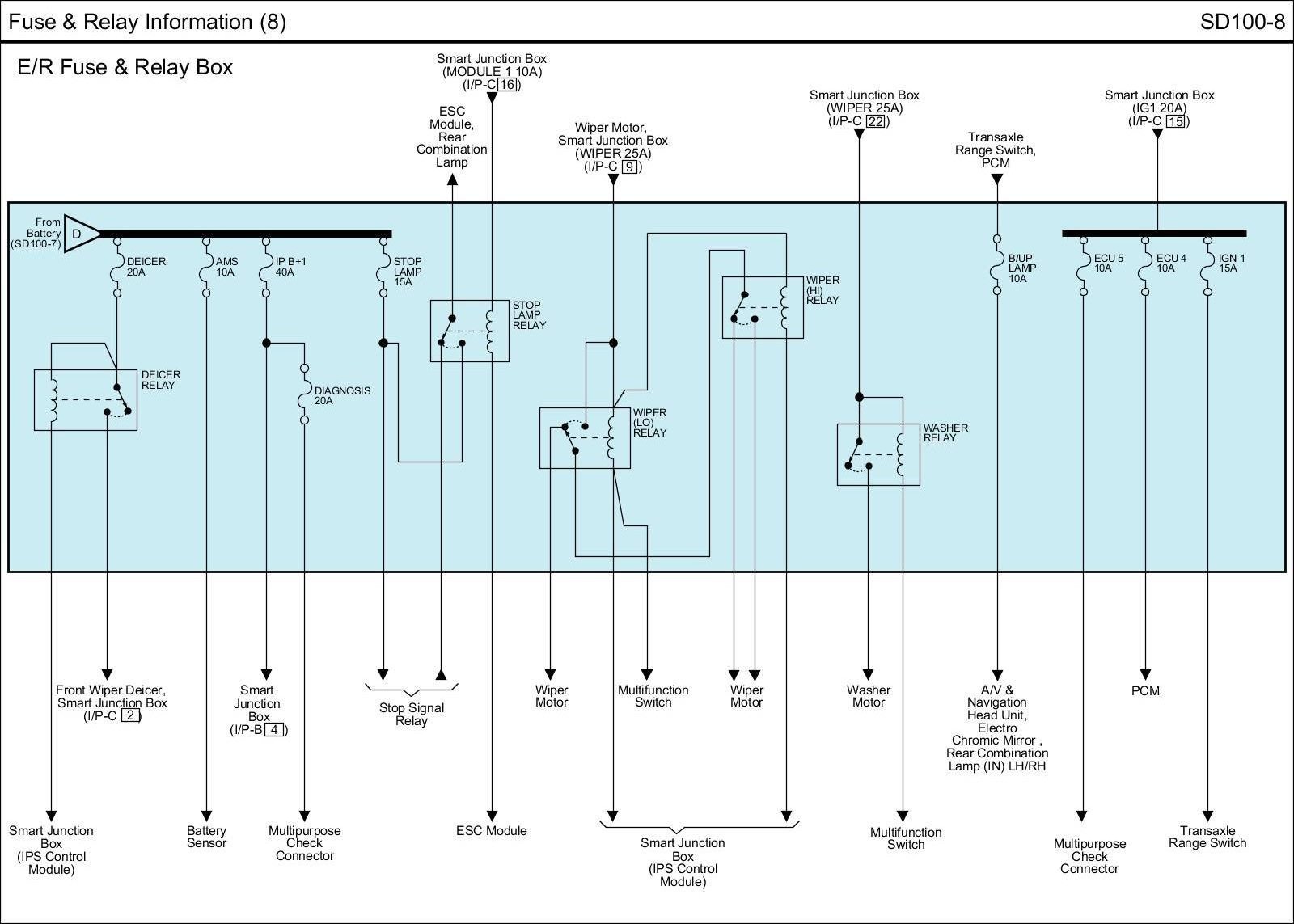

E/R Fuse & Relay Box View:

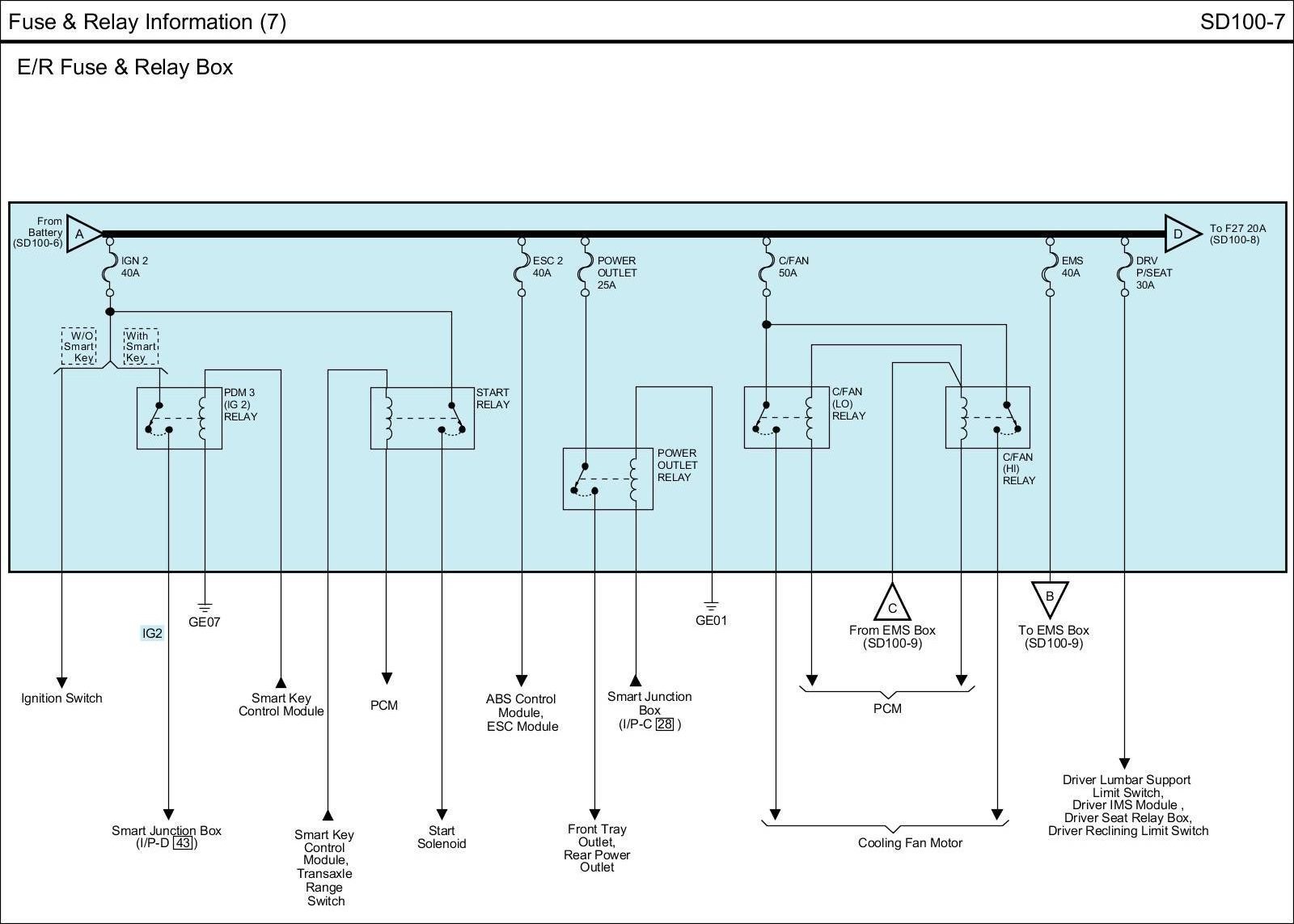

E/R Fuse & Relay Box Circuit Details:




EMS Box:




E/R Fuse & Relay Box View:




E/R Fuse & Relay Box View:




E/R Fuse & Relay Box View:




EMS Box View:

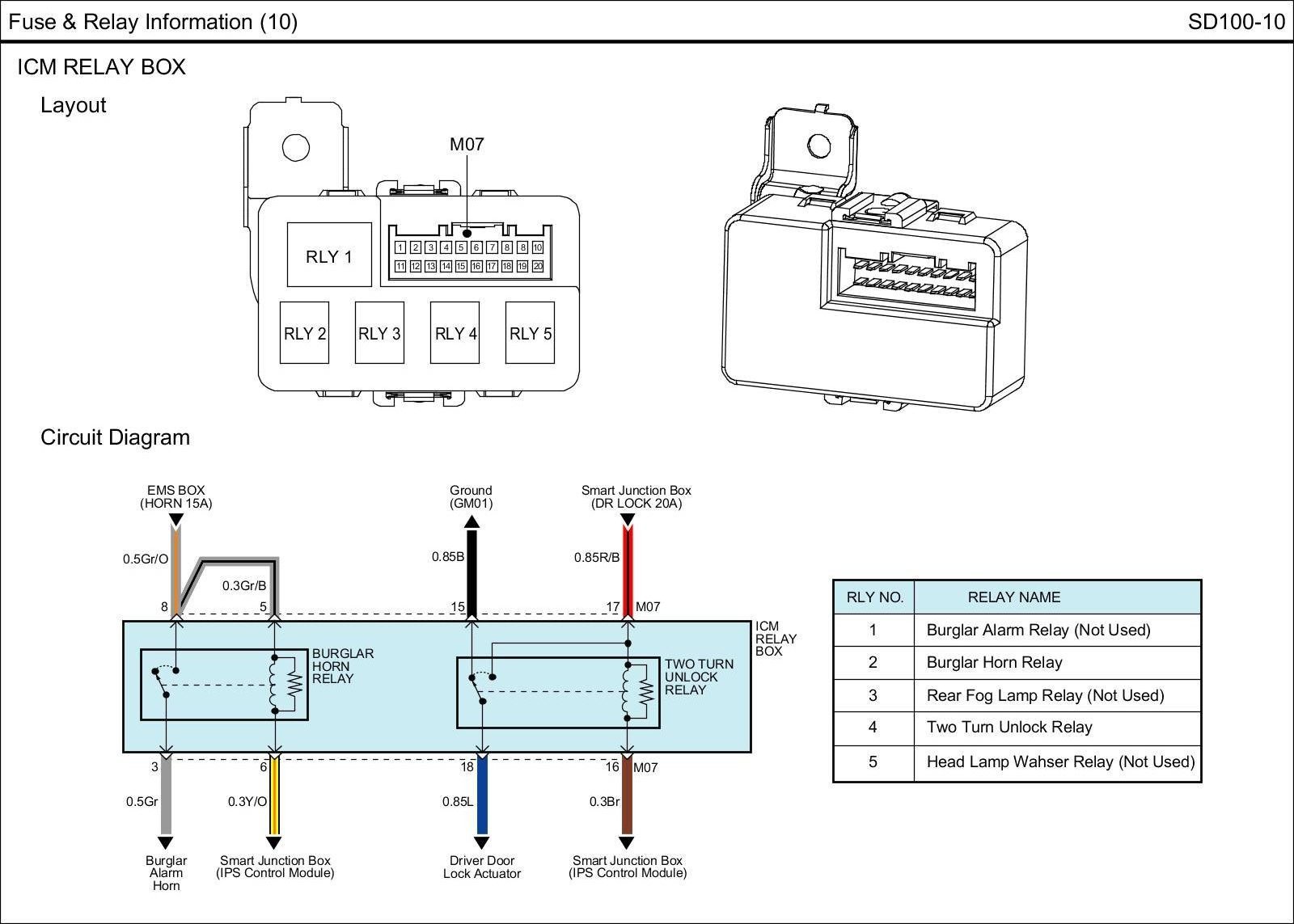

ICM Relay Box View:
