Switch Diagnosis

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.
  2. Select the vehicle model and then SMART KEY system.

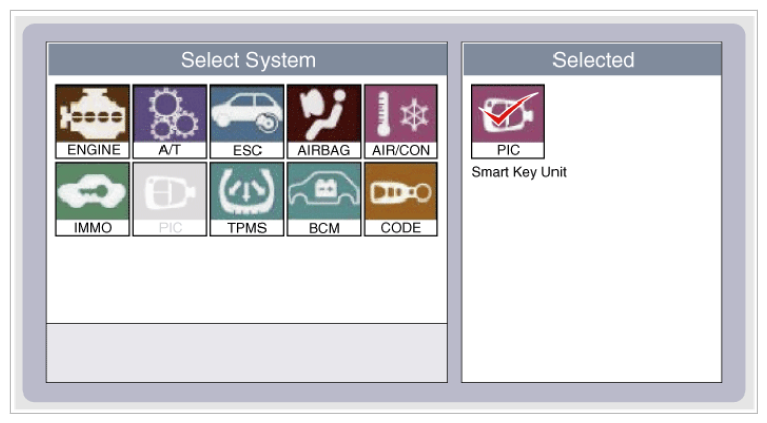

    Fig 1: Display - Smart Key Unit Selection Screen
    G08814139Courtesy of HYUNDAI MOTOR AMERICA
  3. Select the "SMART KEY unit".
  4. After IG ON, select the "Current data".

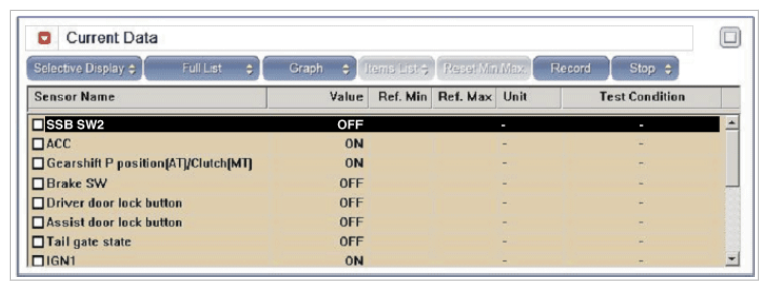

    Fig 2: Display - Smart Key Unit Current Data
    G08814140Courtesy of HYUNDAI MOTOR AMERICA
  5. You can see the situation of each switch on scanner after connecting the "current data" process.
    Display Description
    FL Toggle switch ON: Push button is ON in the driver door handle.
    FR Toggle switch ON: Push button is ON in the assist door handle.
    Trunk switch ON: Trunk button is ON.
    Gear P Position ON: Shift lever is P position.
    IGN 1 ON: IGN switch is IG position.
    ACC ON: IGN switch is ACC position.
    Push Knob switch ON: Push knob switch is ON.
    External Buzzer ON: Buzzer is ON.
