Interior 1 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad.

    (Refer to "MAIN CRASH PAD ASSEMBLY ")

  3. Remove the interior 1 antenna (A) after disconnecting the connector and loosening the mounting nuts (2EA).

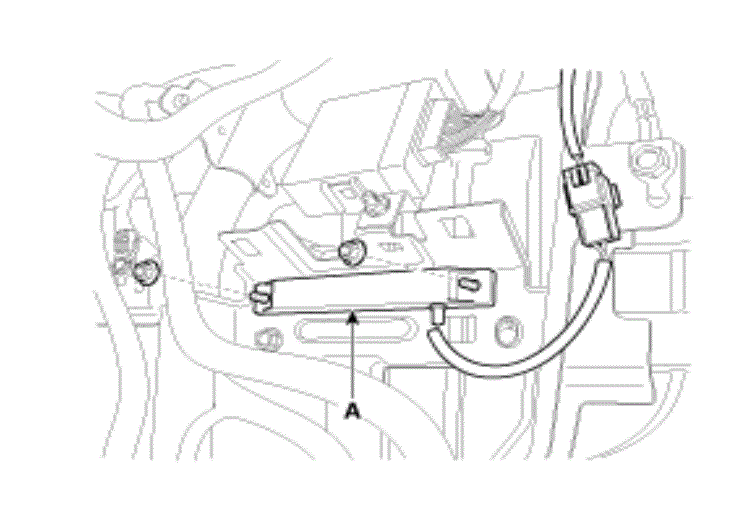

    Fig 1: Identifying Interior 1 Antenna
    G08814190Courtesy of HYUNDAI MOTOR AMERICA
