Front Body A

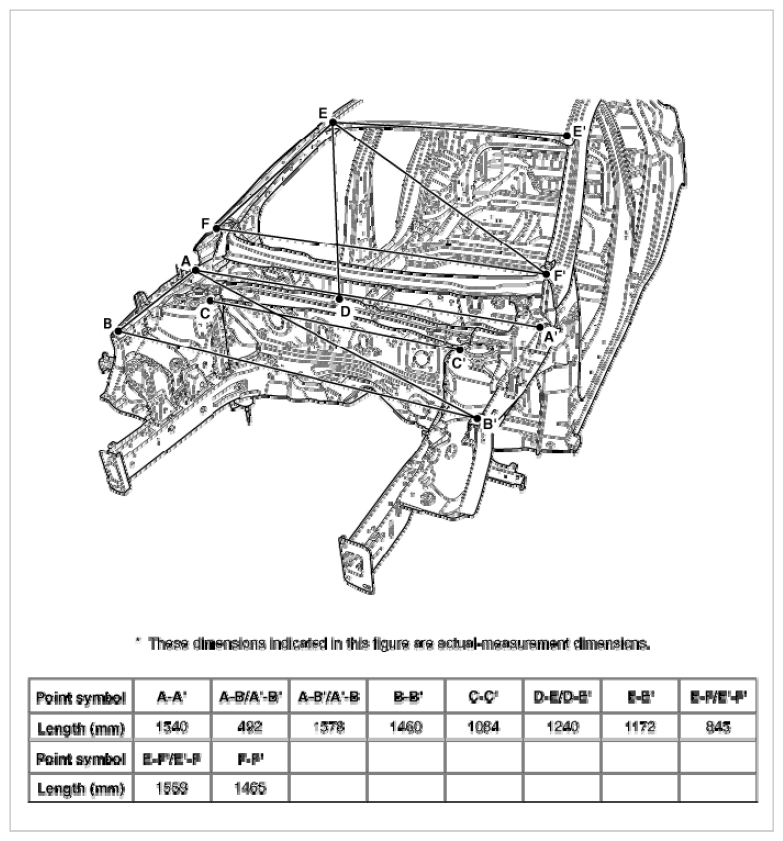

Fig 1: Identifying Front Body A Dimensions
G08810493Courtesy of HYUNDAI MOTOR AMERICA

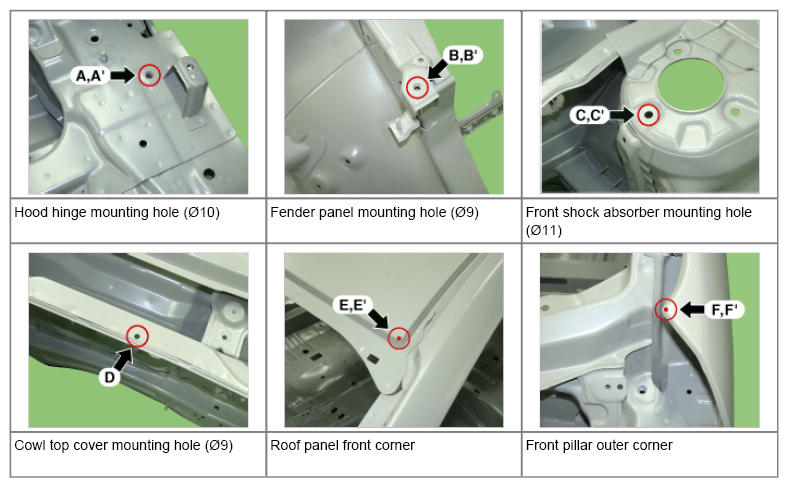

Fig 2: Locating Mounting Holes On Front Body A
G08810494Courtesy of HYUNDAI MOTOR AMERICA
