Front Body B

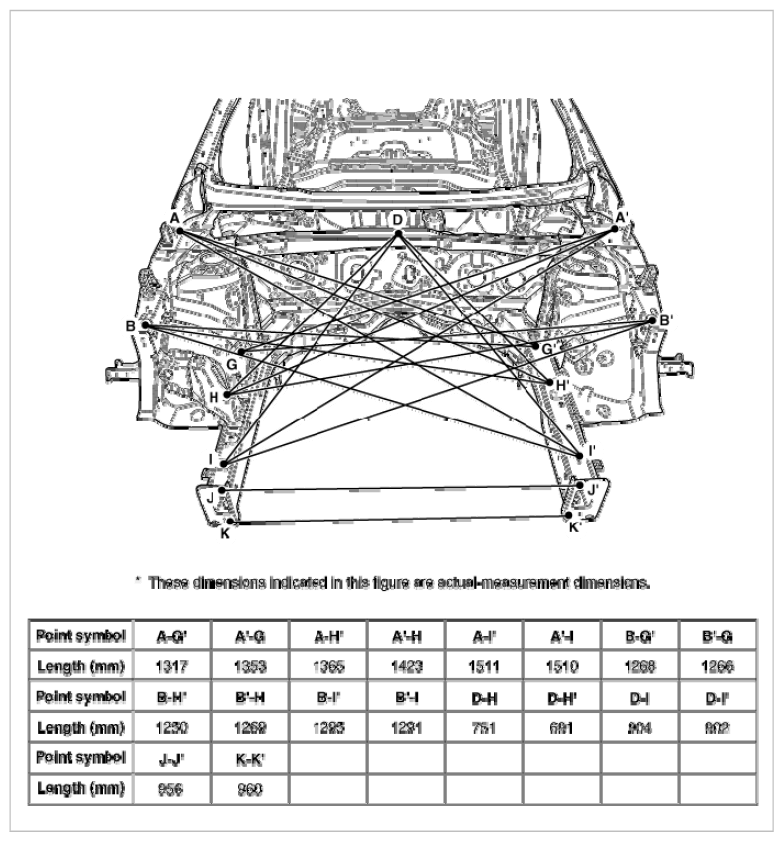

Fig 1: Identifying Front Body B Dimensions
G08810495Courtesy of HYUNDAI MOTOR AMERICA

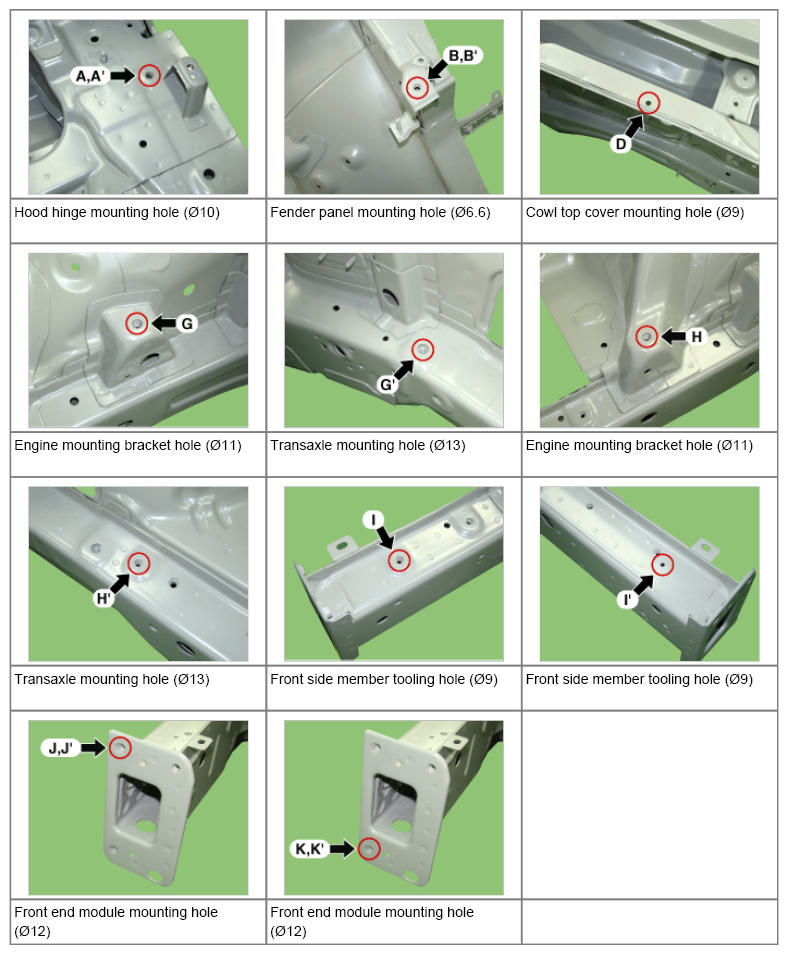

Fig 2: Locating Mounting Holes On Front Body B
G08810496Courtesy of HYUNDAI MOTOR AMERICA
