Interior B

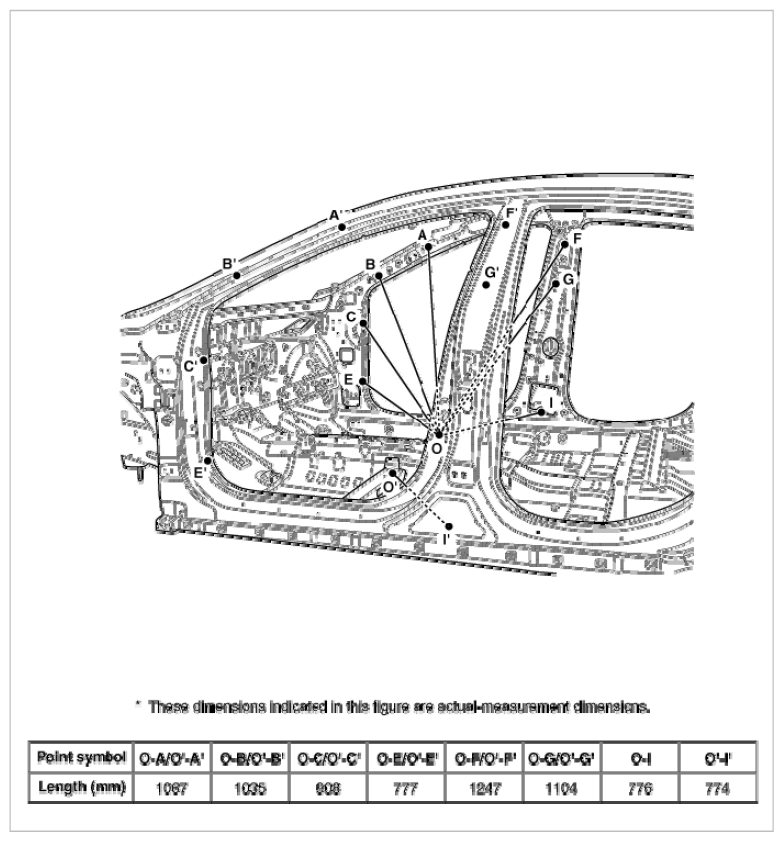

Fig 1: Identifying Interior B Dimensions
G08810505Courtesy of HYUNDAI MOTOR AMERICA

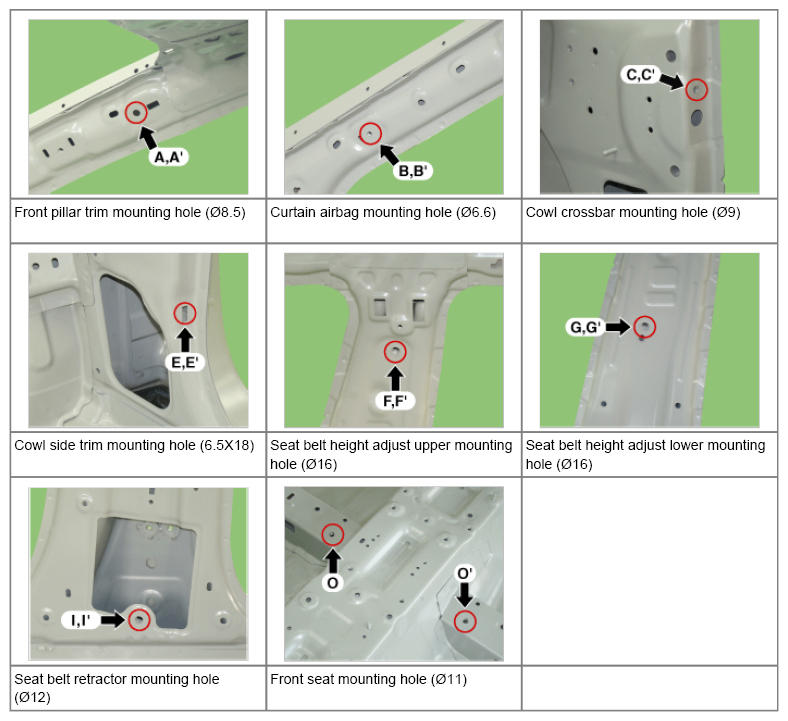

Fig 2: Locating Mounting Holes On Interior B
G08810506Courtesy of HYUNDAI MOTOR AMERICA
