Repair Procedures: Replacement

Loosen the wheel lug nuts slightly.
Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tire (A) from front hub.
Tightening torque: 88.2 ~ 107.8N.m (9.0 ~ 11.0kgf.m, 65.0 ~ 79.5lb-ft)

Fig 1: Identifying Front Wheel And Tire
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: Be careful not to damage to the hub bolts when removing the front wheel and tire (A).
Loosen the wheel speed sensor mount bolt and then remove the wheel speed sensor (A) from the knuckle.
Tightening torque: 6.8 ~ 10.7N.m (0.7 ~ 1.1kgf.m, 5.0 ~ 7.9lb-ft)

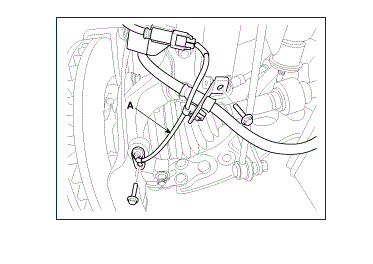

Fig 2: Identifying Wheel Speed Sensor And Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Remove the brake caliper mounting bolts and then place the brake caliper assembly (A) with wire.
Tightening torque: 78.4 ~ 98.0N.m (8.0 ~ 10.0kgf.m, 57.8 ~ 72.3lb-ft)

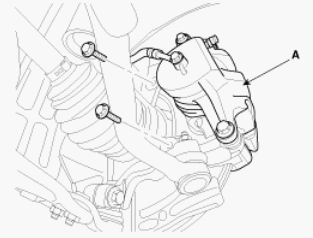

Fig 3: Identifying Brake Caliper Assembly And Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the tie rod end ball joint (A) from the knuckle.
1. Remove the split pin (B).
2. Remove the castle nut (C).
  Tightening torque: 34.3 ~ 44.1N.m (3.5 ~ 4.5kgf.m, 25.3 ~ 32.5lb-ft)

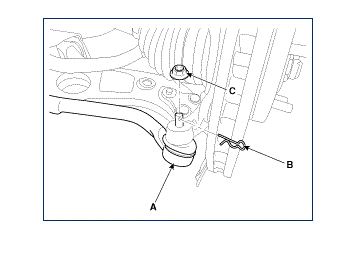

  Fig 4: Identifying Tie Rod End Ball Joint, Split Pin And Castle Nut
  Courtesy of HYUNDAI MOTOR AMERICA
Remove driveshaft coking nut (A) from the front hub under applying the brake.
Tightening torque: 240.3 ~ 269.7N.m (24.5 ~ 27.5kgf.m, 177.2 ~ 198.9lb-ft)

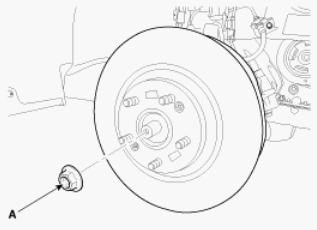

Fig 5: Identifying Driveshaft Coking Nut
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- The rear hub lock nut should be replaced with new ones.
- After installation lock nut, stake the lock nut using a chisel and hammer as shown in the illustration below.

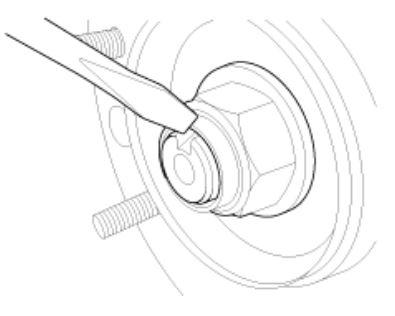

Fig 6: Staking Lock Nut Using Chisel
Courtesy of HYUNDAI MOTOR AMERICA
Remove the lower arm (A) from the knuckle.
Tightening torque: 98.0 ~ 117.6N.m (10.0 ~ 12.0kgf.m, 72.3 ~ 86.7lb-ft)

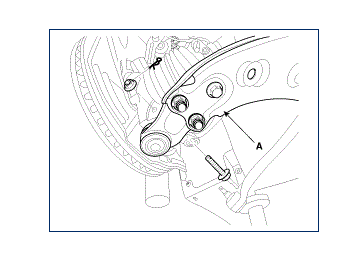

Fig 7: Identifying Lower Arm And Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the driveshaft (A) from the front hub assembly.
Tightening torque: 137.2 ~ 156.9N.m (14.0 ~ 16.0kgf.m, 101.2 ~ 115.7lb-ft)

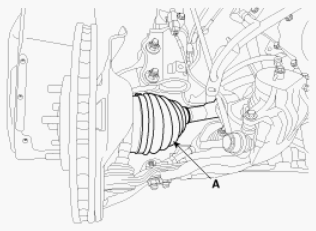

Fig 8: Identifying Driveshaft And Front Hub Assembly
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: Be careful not to damage the boot and tone wheel.
Loosen the strut bolts and nuts and then remove the kunckle assembly (A).
Tightening torque: 156.9 ~ 176.5 N.m (16.0 ~ 18.0 kgf.m, 115.7 ~ 130.2 lb-ft)

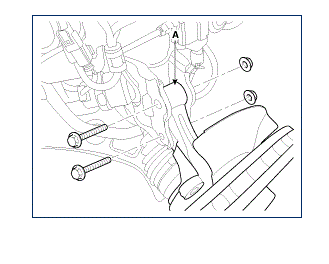

Fig 9: Identifying Strut Bolts, Nuts And Kunckle Assembly
Courtesy of HYUNDAI MOTOR AMERICA
