Removal and Installation

Remove the automatic transaxle.
(Refer to "AUTOMATIC TRANSAXLE ")
Remove the adapter plate (B) and the drive plate (A).
Tightening torque:

71.6 ~ 75.5N.m (7.3 ~ 7.7kgf.m, 52.8 ~ 55.7lb-ft)

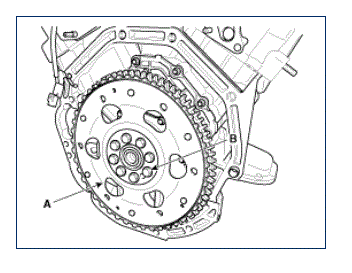

Fig 1: Identifying Drive Plate And Adapter Plate
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
