Circuit Diagram

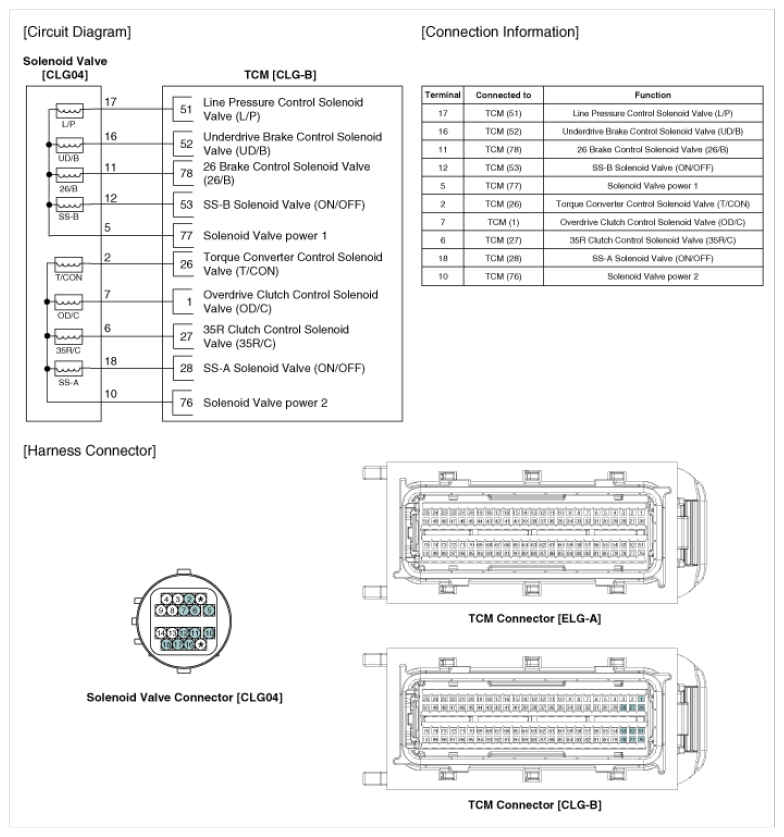

Fig 1: Overdrive Clutch Control Solenoid Valve (OD/C_VFS) Circuit Diagram
G08809960Courtesy of HYUNDAI MOTOR AMERICA
