Diagnostic Circuit Diagram

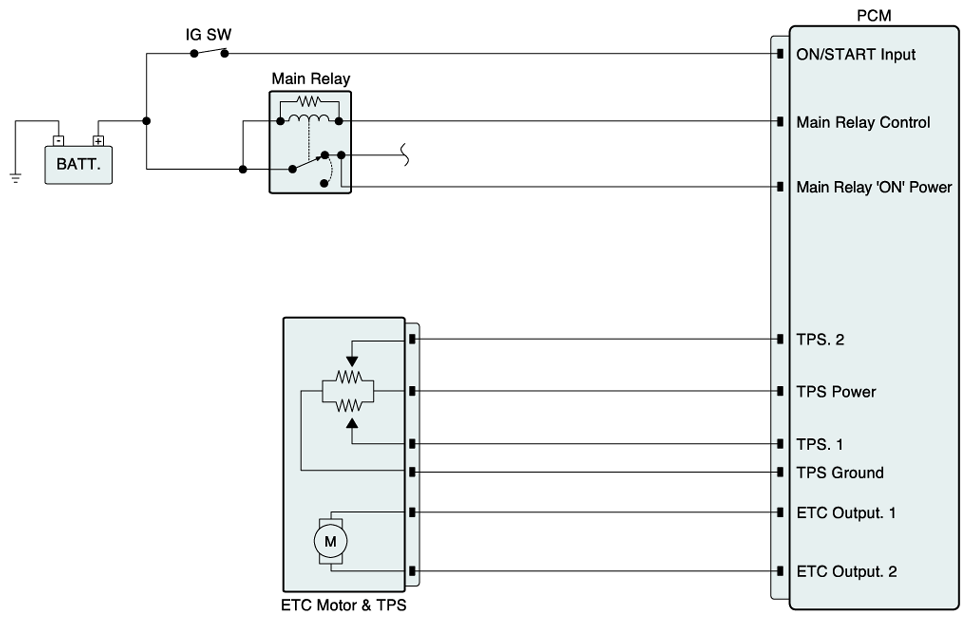

Fig 1: ETC Motor And TPS - Diagnostic Circuit Diagram (1 Of 2)
G07272266Courtesy of HYUNDAI MOTOR CO.

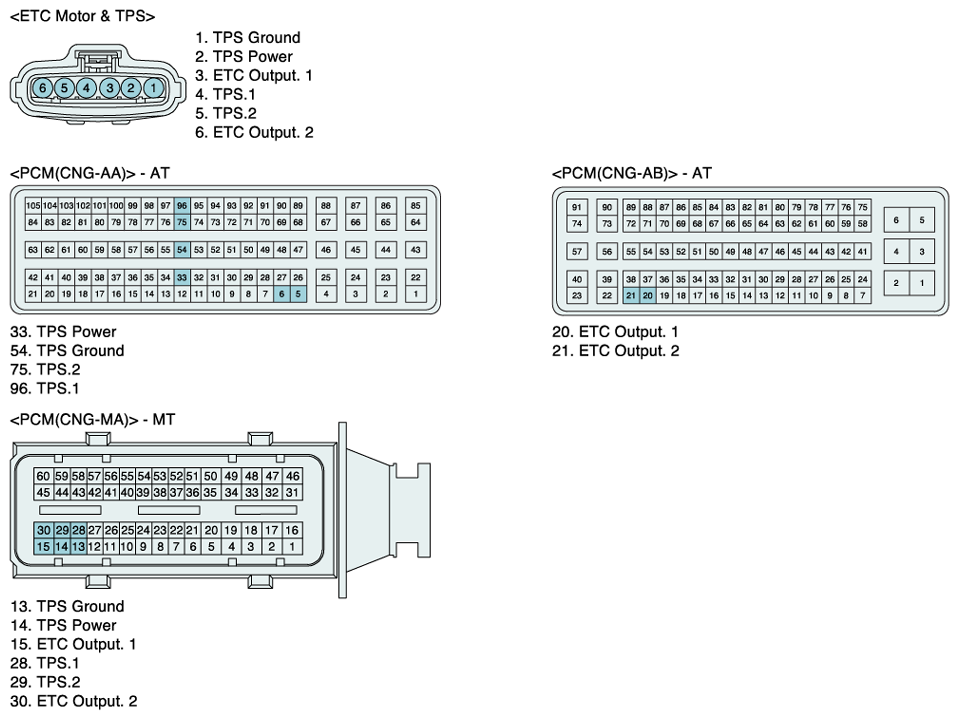

Fig 2: ETC Motor And TPS - Diagnostic Circuit Diagram (2 Of 2)
G07272267Courtesy of HYUNDAI MOTOR CO.
