Power Circuit Inspection

IG KEY OFF.
Disconnect PCM and APS harness connector.
IG KEY ON.
Measure resistance between APS1 power terminal of APS harness connector and chassis ground.
Specification: Infinite

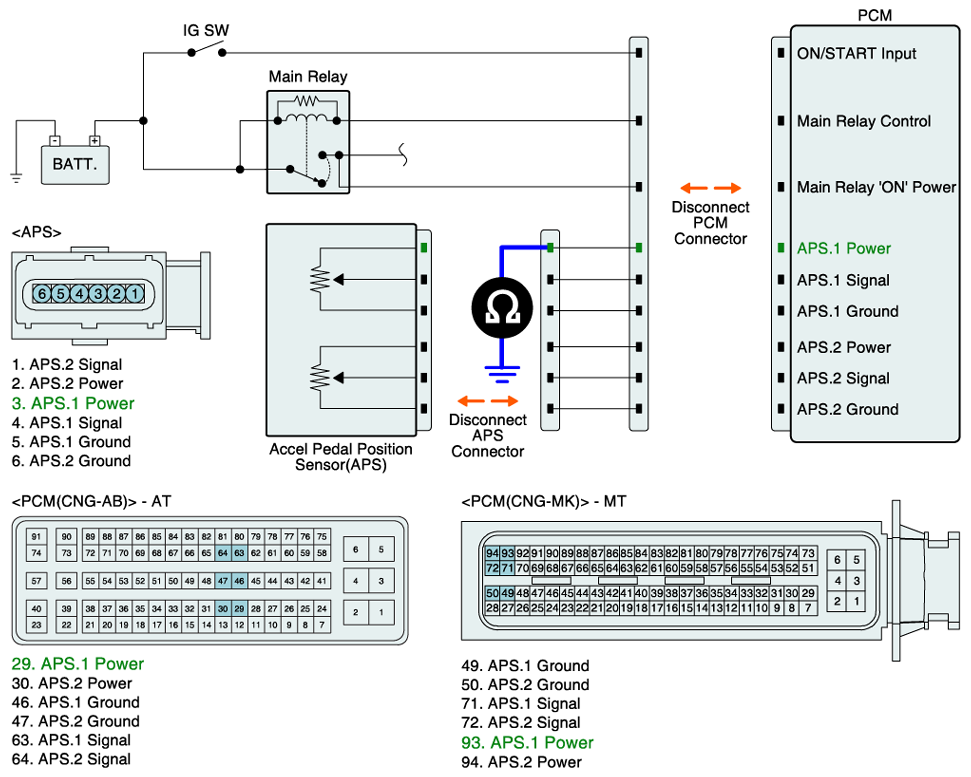

Fig 1: Measuring Resistance Between APS1 Power Terminal Of APS Connector And Chassis Ground.
Courtesy of HYUNDAI MOTOR CO.
Is resistance within specification?
YES
- Go to next procedure.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

IG KEY OFF.
Disconnect APS harness connector.
IG KEY ON.
Measure voltage between APS1 power terminal of APS harness connector and chassis ground.
Specification: Approx. 5V

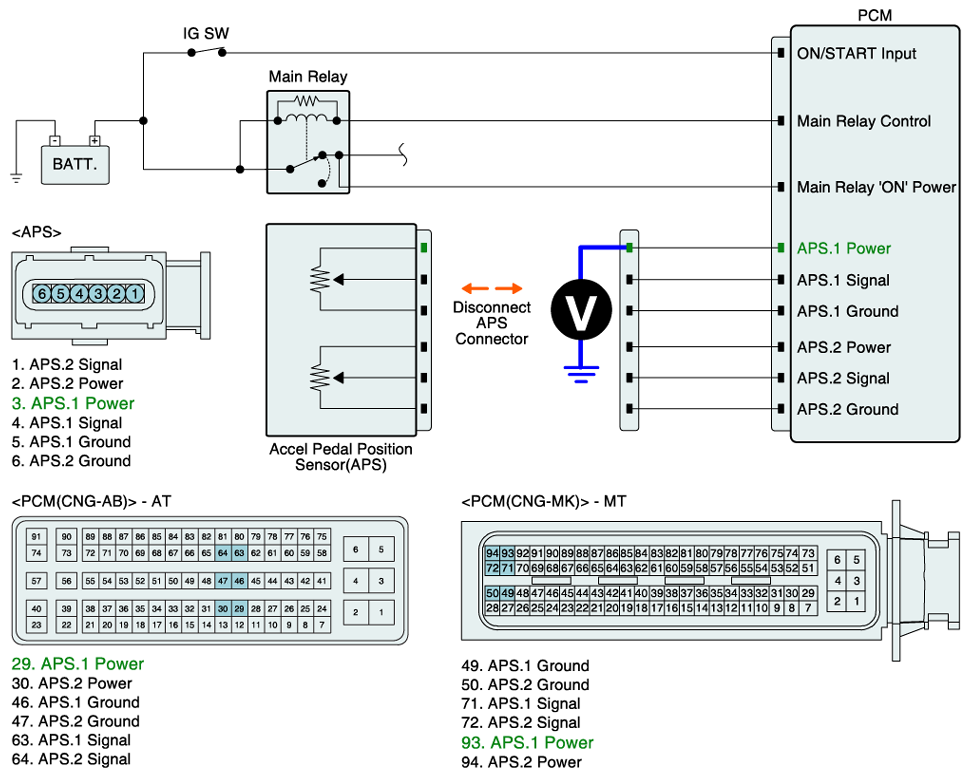

Fig 2: Measuring Voltage Between APS1 Power Terminal Of APS Connector And Chassis Ground.
Courtesy of HYUNDAI MOTOR CO.
Is voltage within specification?
YES
- Go to next procedure.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
