Ground Circuit Inspection

IG KEY OFF.
Disconnect APS harness connector and PCM harness connector.
Measure resistance between both ends of APS1 ground line.
Specification: Below 1Ω

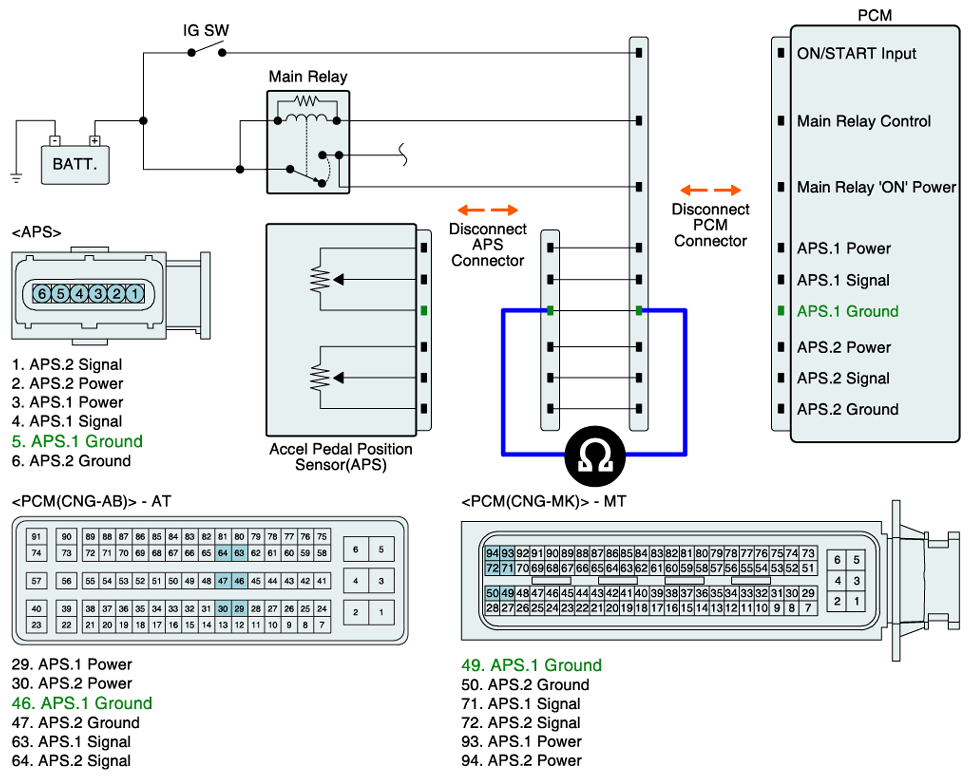

Fig 1: Measuring Resistance Between Both Ends Of APS1 Ground Line.
Courtesy of HYUNDAI MOTOR CO.
Is resistance within specification?
YES
- Go to next procedure.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
