System Specifications

Specifications

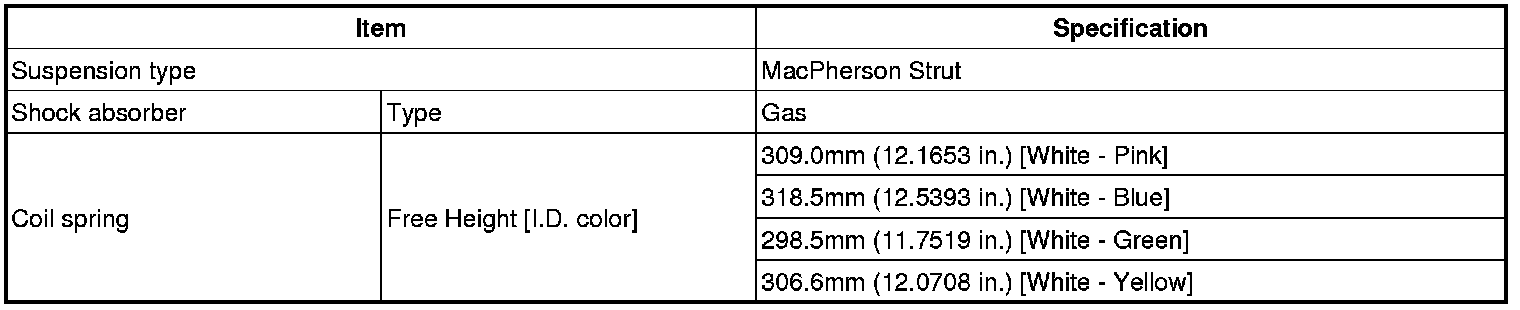

Front Suspension

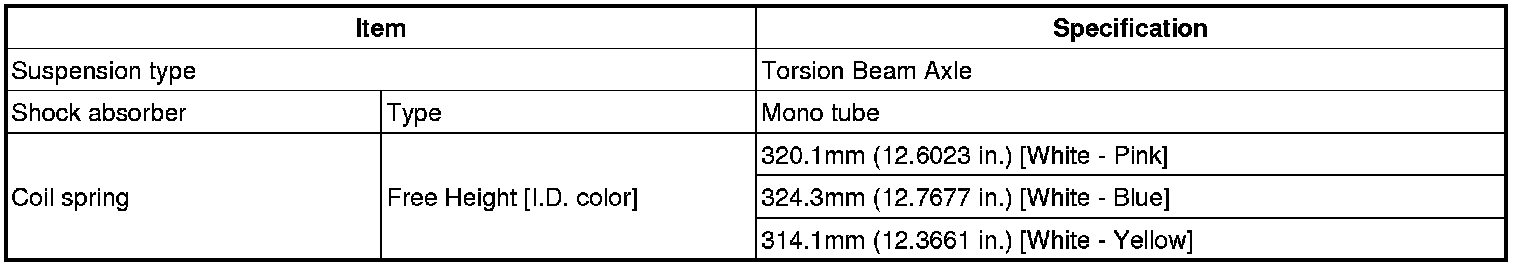

Rear Suspension

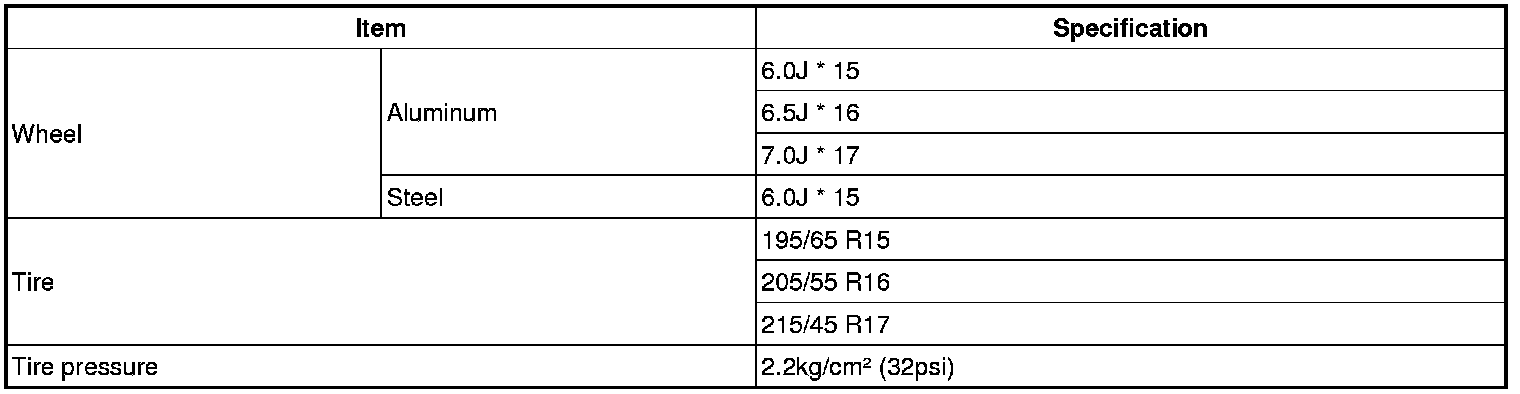

Wheel & Tire

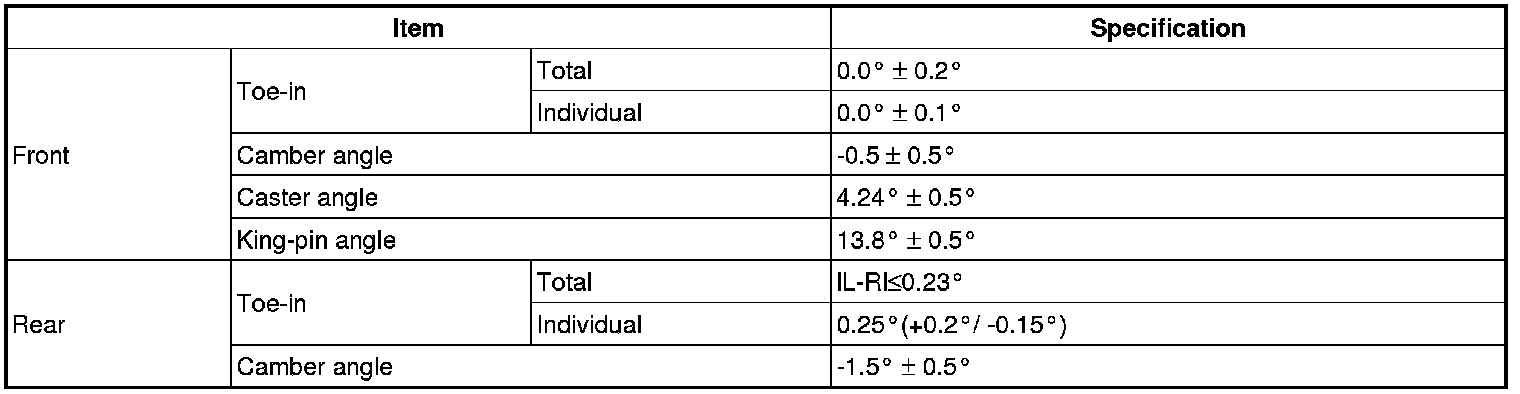

Wheel Alignment






NOTE:
l L - R l means deviation of the left and right individual toe values.
L : Left toe value
R : Right toe value

Tightening Torques

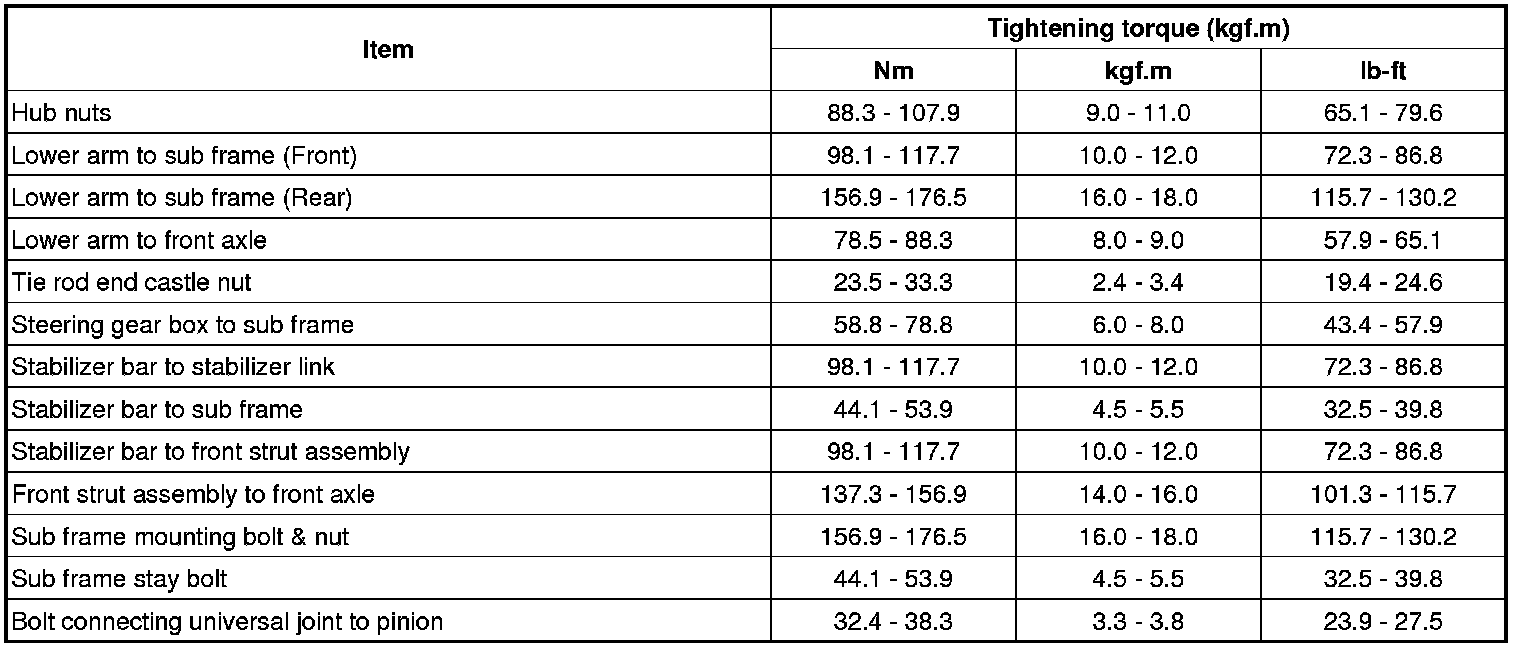

Front Suspension





Rear Suspension
