Variant coding

After replacing the SRSCM with a new unit, the "Variant Coding" procedure must be performed.

NOTE:

On SRSCM variant coding mode, the airbag warning lamp is periodically blinking (ON: 0.5sec., OFF: 0.5sec.) until the coding is normally completed.
If the variant coding is failed, DTC B1762 (ACU Coding Error) will display and the warning lamp will be turned on.
In this case, perform the variant coding procedure again after confirming the cause in "DTC Fault State Information".

Variant Coding can be performed up to 255 times, but if the number of coding work exceeds 255 times, DTC B1683 (Exceed Maximum coding Number) will be displayed and SRSCM must be replaced.
If the battery voltage is low (less than 9V), DTC B1102 will be displayed. In this case, charge the battery before performing the variant coding procedure.
DTC B1762 (ACU Coding Error) and B1102 (Battery Voltage Low) may be displayed simultaneously.

Variant coding Procedure

On-Line type on GDS

With the ignition "OFF", connect GDS.
Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
Select Variant coding mode.
Follow steps on the screen as below.
1. Initial ACU Variant Coding screen

  Fig 1: Scantool Display - ACU Variant Coding Screen
  Courtesy of HYUNDAI MOTOR CO.

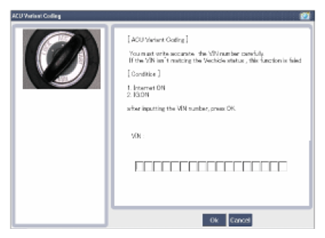

2. VIN Code entering screen

  Fig 2: Scantool Display - VIN Code Entering Screen
  Courtesy of HYUNDAI MOTOR CO.

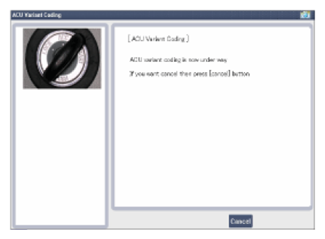

3. Variant coding's proceeding screen-1

  Fig 3: Scantool Display - Variant Coding Proceeding Screen-1
  Courtesy of HYUNDAI MOTOR CO.
4. Variant coding's proceeding screen-2

  Fig 4: Scantool Display - Variant Coding Proceeding Screen-2
  Courtesy of HYUNDAI MOTOR CO.
5. Variant coding is completed

  Fig 5: Scantool Display - Variant Coding Is Completed
  Courtesy of HYUNDAI MOTOR CO.
  NOTE:
  1. This screen is opened when you try the variant coding again on the SRSCM that already has the variant coding performed.

    Fig 6: Scantool Display - Variant Coding
    Courtesy of HYUNDAI MOTOR CO.

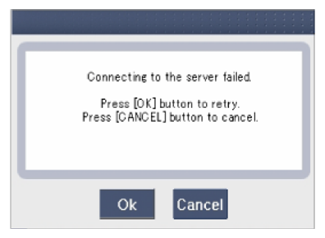

  2. If communication fails, the following screen will appear.

    Fig 7: Scantool Screen Display
    Courtesy of HYUNDAI MOTOR CO.

Off-line type on GDS (This can be used when not connecting to Internet)

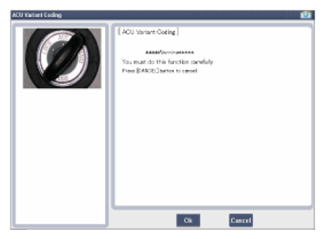

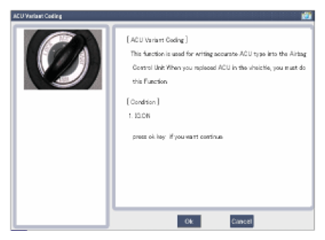

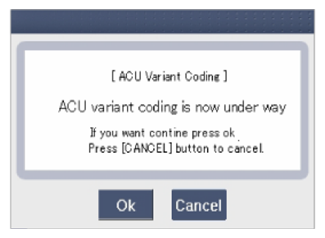

1. Initial ACU Variant Coding screen

  Fig 8: Scantool Display - ACU Variant Coding Screen
  Courtesy of HYUNDAI MOTOR CO.
2. ACU Coding Code entering screen

  Fig 9: Scantool Display - ACU Coding Code Entering Screen
  Courtesy of HYUNDAI MOTOR CO.

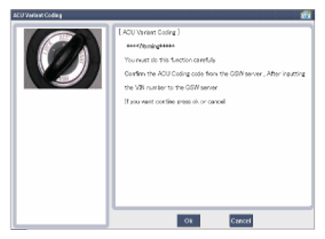

3. Screen of rechecking ACU Coding code's entering

  Fig 10: Scantool Display - ACU Coding Code Entering
  Courtesy of HYUNDAI MOTOR CO.

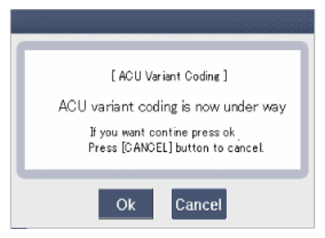

4. Variant coding's proceeding screen-1

  Fig 11: Scantool Display - Variant Coding Proceeding Screen-1
  Courtesy of HYUNDAI MOTOR CO.

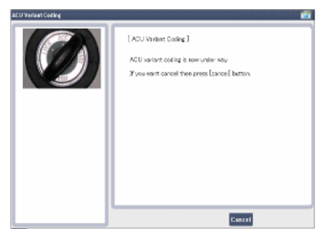

5. Variant coding's proceeding screen-2

  Fig 12: Scantool Display - Variant Coding Proceeding Screen-2
  Courtesy of HYUNDAI MOTOR CO.

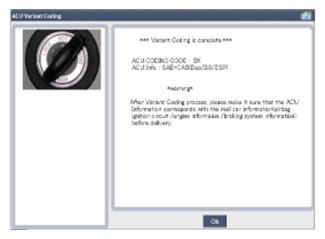

6. Variant coding is completed

  Fig 13: Scantool Display - Variant Coding Is Completed
  Courtesy of HYUNDAI MOTOR CO.

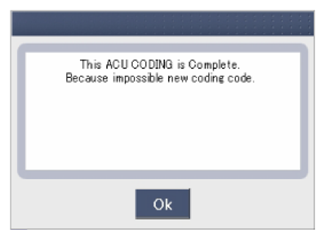

  NOTE:
  1. This screen is opened when you try the variant coding again on the SRSCM that already has the variant coding performed.

    Fig 14: Scantool Display - Variant Coding
    Courtesy of HYUNDAI MOTOR CO.
