Smart Key Code Savigh

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

Fig 1: DLC Connector Location
Courtesy of HYUNDAI MOTOR CO.
Select the vehicle model and then do "Smart key code saving".

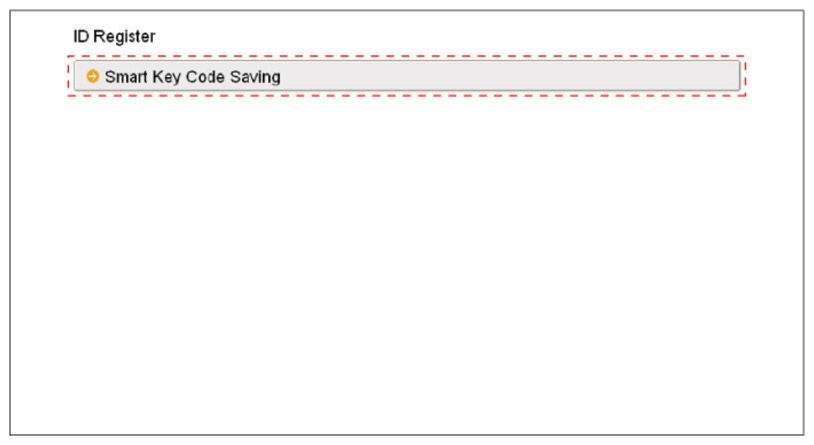

Fig 2: Scantool Display - ID Register
Courtesy of HYUNDAI MOTOR CO.

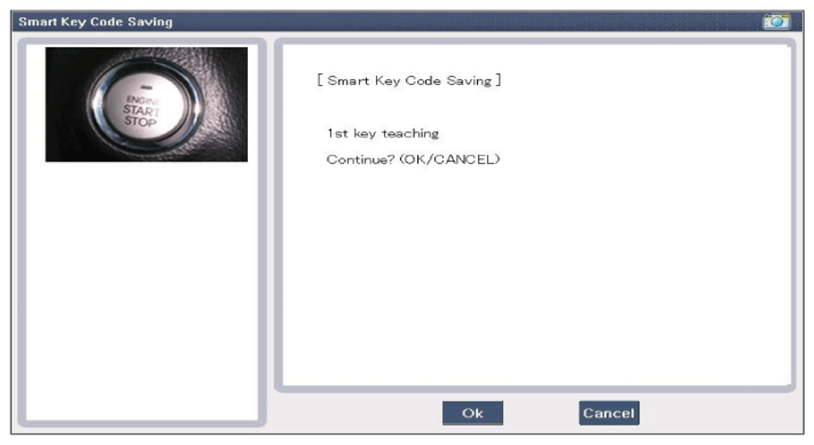

After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

Fig 3: Scantool Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR CO.
After inserting the teaching key, push "ENTER" key.

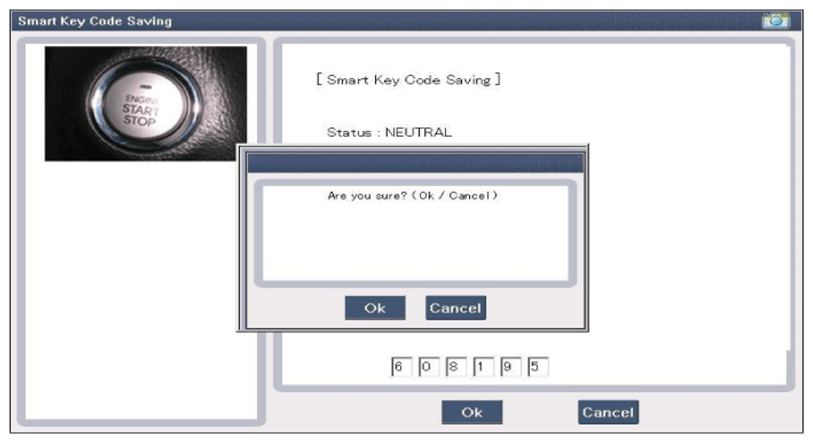

Input the "Pin code" for first key teaching.

Fig 4: Scantool Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR CO.

Fig 5: Scantool Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR CO.

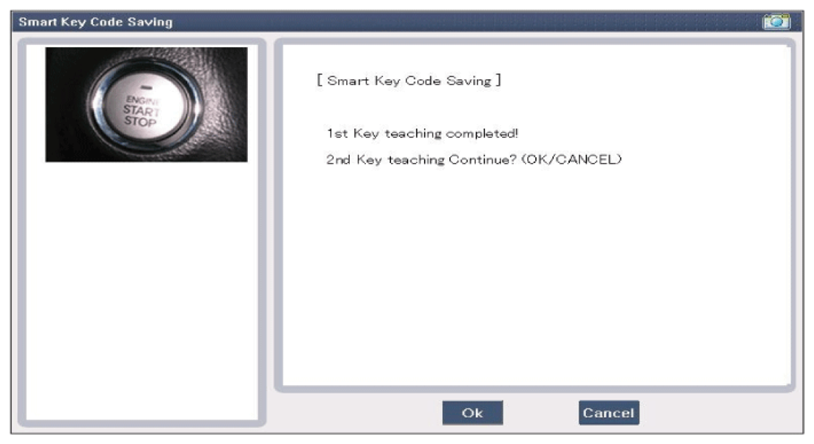

Confirm the message "First key teaching completed".

Fig 6: Scantool Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR CO.

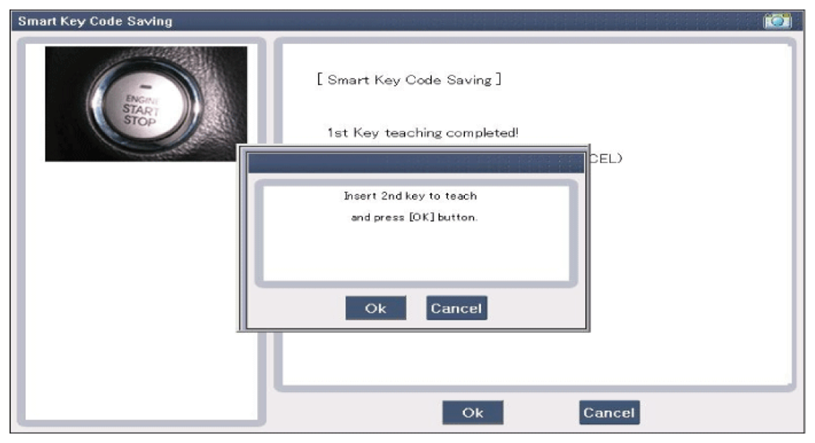

Fig 7: Scantool Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR CO.
Input the "Pin code" for second key teaching.

Fig 8: Scantool Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR CO.

Fig 9: Scantool Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR CO.
Confirm the message "Second key teaching completed".

Fig 10: Scantool Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR CO.

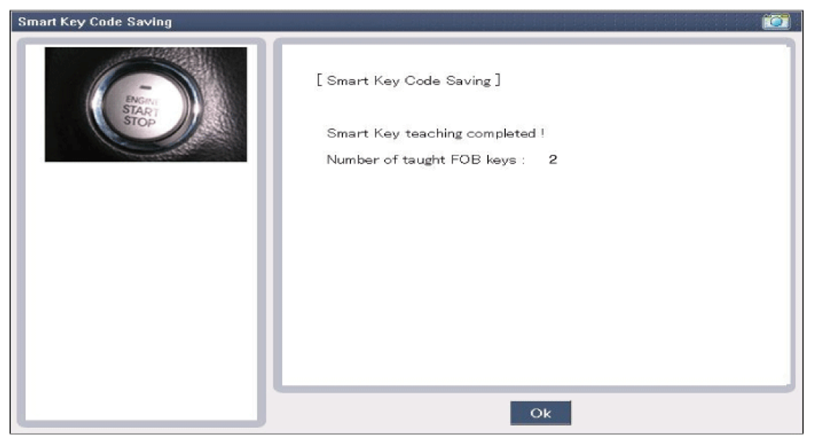

Then the screen will be shown as below when key teaching process is completed
