Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from the steering column.

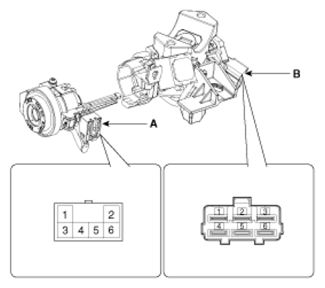

    Fig 1: Identifying Ignition Switch Connector
    G07256953Courtesy of HYUNDAI MOTOR CO.
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

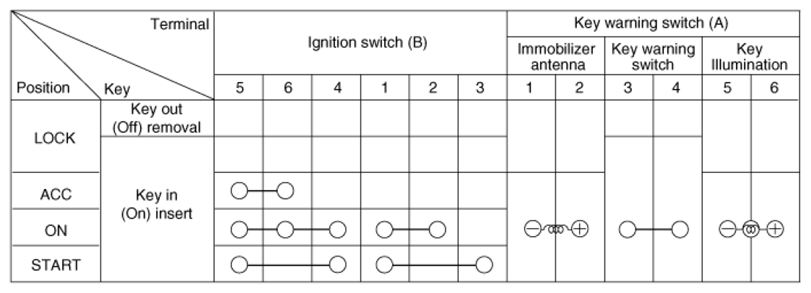

    Fig 2: Ignition Switch Connector Continuity Chart
    G07256954Courtesy of HYUNDAI MOTOR CO.
