Ground Circuit Inspection

Ignition "OFF".
Disconnect HO2S connectors.
Measure resistance between ground terminal of HO2S (B1S2) harness connector and chassis ground.
Specification: Approx. 0Ω

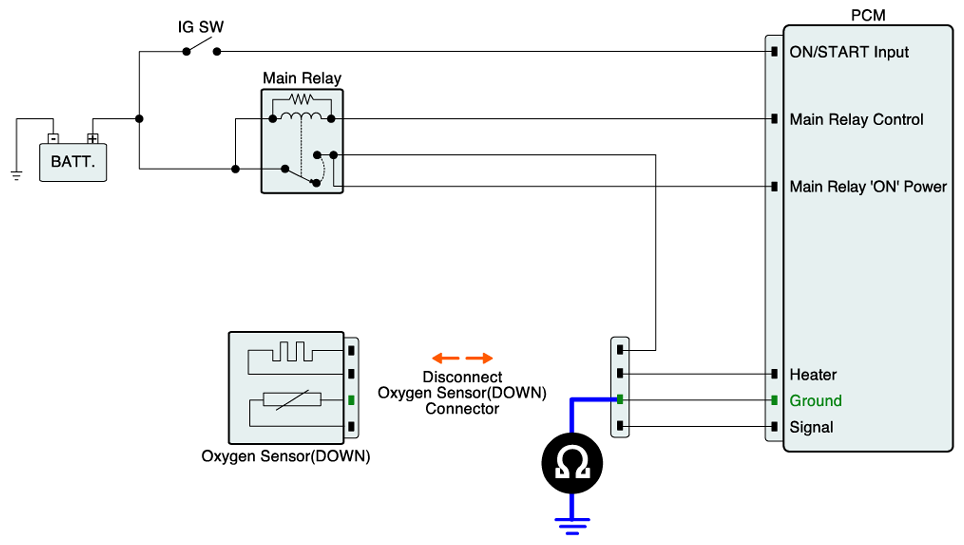

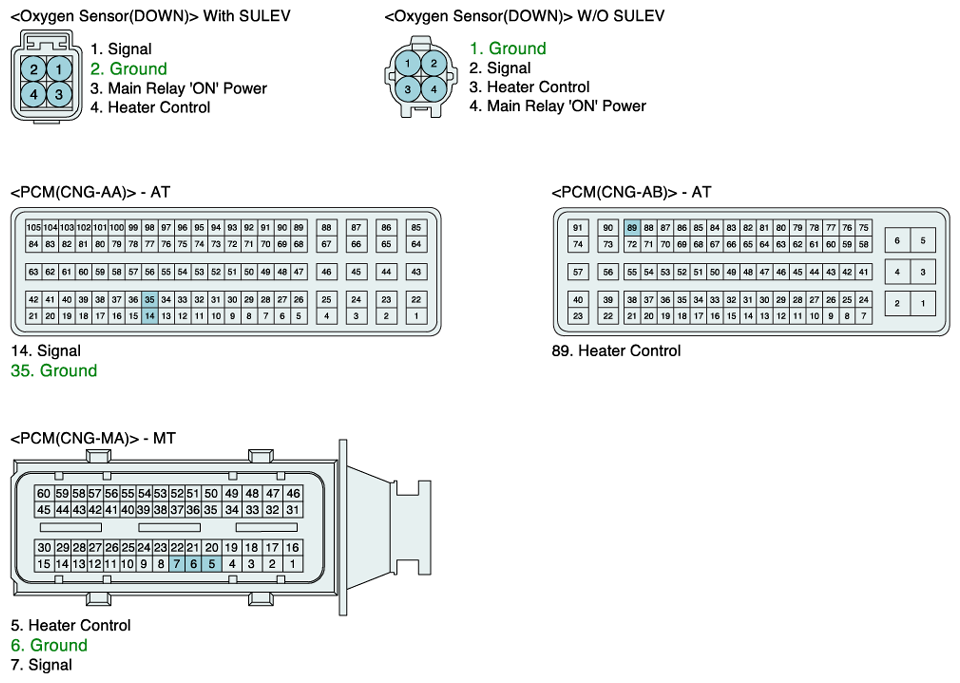

Fig 1: Measuring Resistance Between Ground Terminal Of HO2S (B1S2) Connector And Chassis Ground (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 2: Measuring Resistance Between Ground Terminal Of HO2S (B1S2) Connector And Chassis Ground (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Is resistance within the specification?
YES
- Go to "SIGNAL CIRCUIT INSPECTION " procedure.
NO
- Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NOTE: HO2S must have a clean air reference to function properly. The air is obtained by way of the sensor wire (s). Do not attempt to repair the wire (s), connector, or the terminals.
