Power Circuit Inspection

IG key OFF.
Disconnect 'CRUISE REMOCON SWITCH' connector.
IG key ON.
Measure voltage between 'CRUISE MAIN' terminal of 'CRUISE REMOCON SWITCH' harness connector and chassis ground.
Specification: 11.5V~13.0V

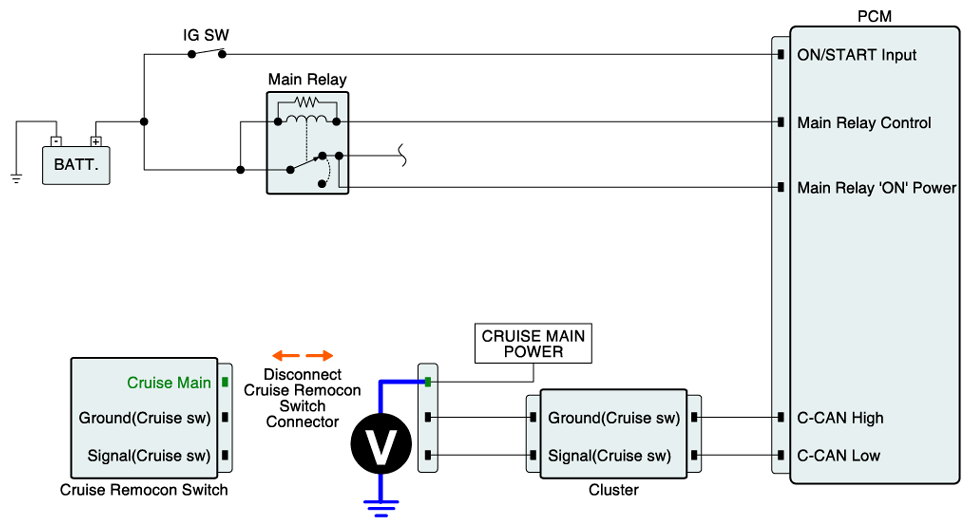

Fig 1: Measuring Voltage Between Cruise Main Terminal Of Cruise Remocon Switch Connector And Chassis Ground (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

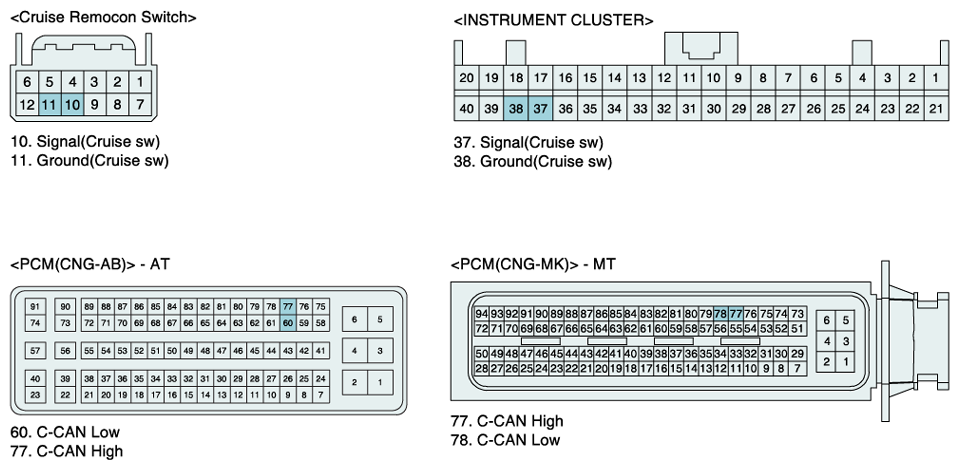

Fig 2: Measuring Voltage Between Cruise Main Terminal Of Cruise Remocon Switch Connector And Chassis Ground (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Is the measured value within specification?
YES
- Go to "SIGNAL CIRCUIT INSPECTION ".
NO
- Repair short to ground/open between 'CRUISE MAIN' terminal of 'CRUISE REMOCON SWITCH' harness connector and 'Cruise supply' terminal of PCM harness connector, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
