Diagnostic Circuit Diagram

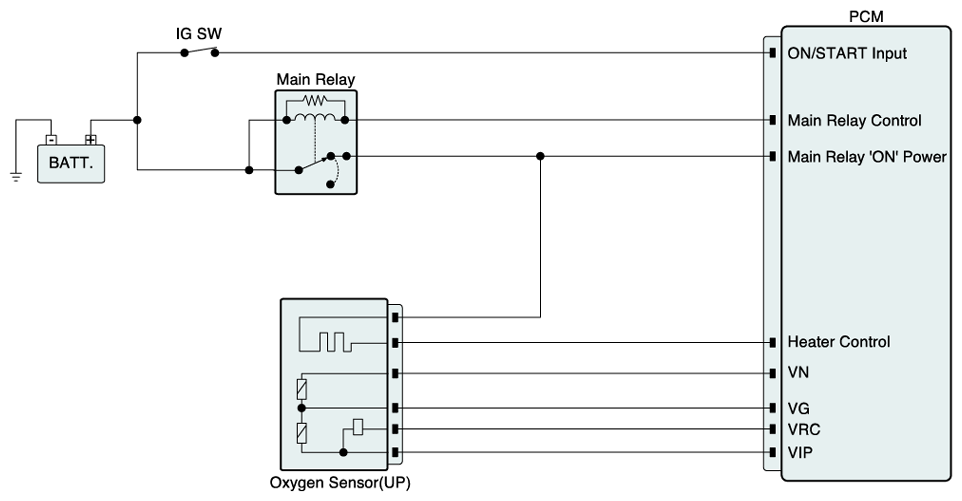

Fig 1: Oxygen Sensor (Bank 1 Sensor 1) - Diagnostic Circuit Diagram (1 Of 2)
G07272897Courtesy of HYUNDAI MOTOR CO.

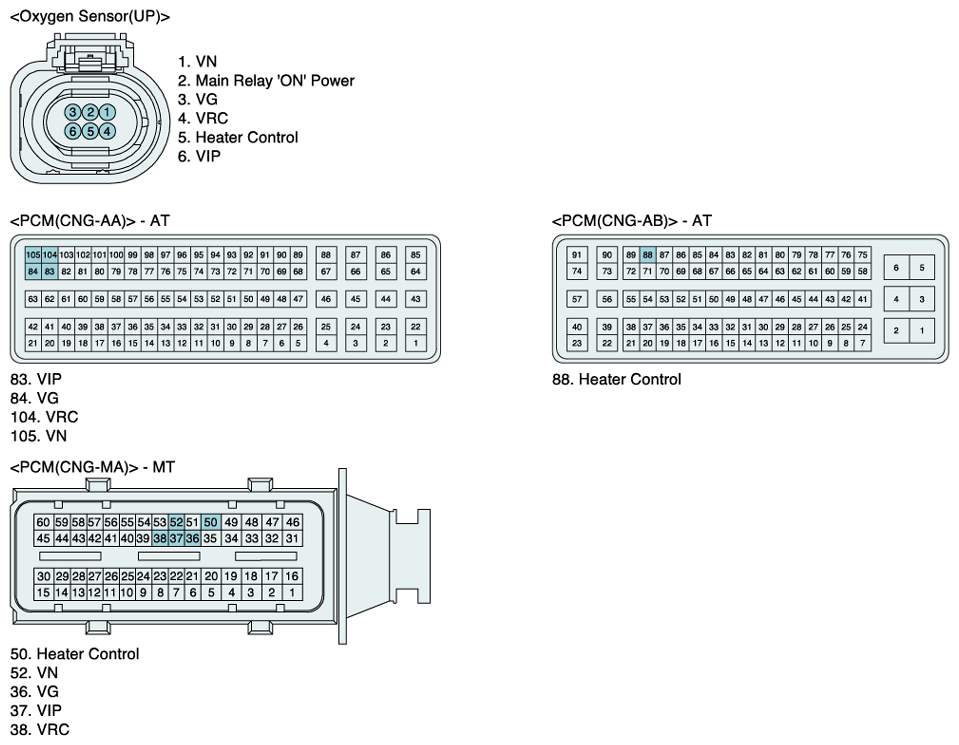

Fig 2: Oxygen Sensor (Bank 1 Sensor 1) - Diagnostic Circuit Diagram (2 Of 2)
G07272898Courtesy of HYUNDAI MOTOR CO.
