ABS Control Unit: Components

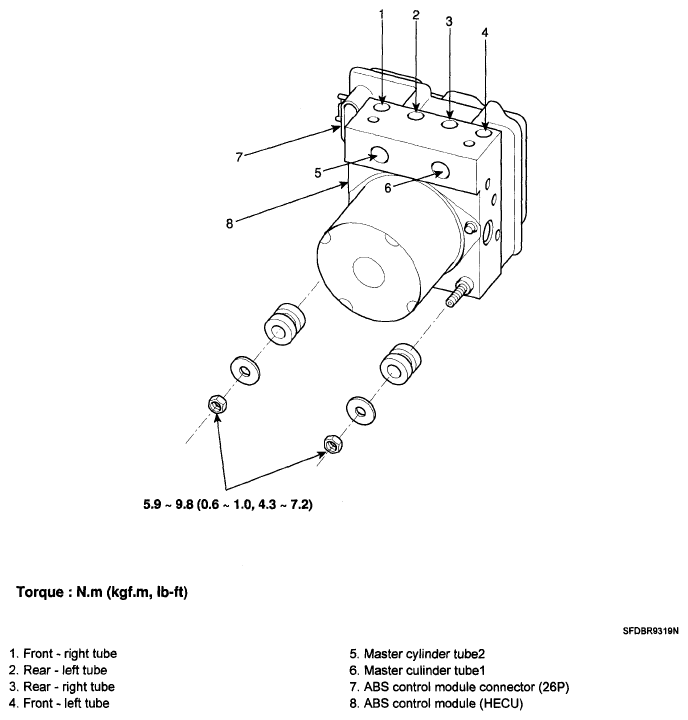

Fig 1: ABS Control Unit Components With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
