Timing Belt: Components

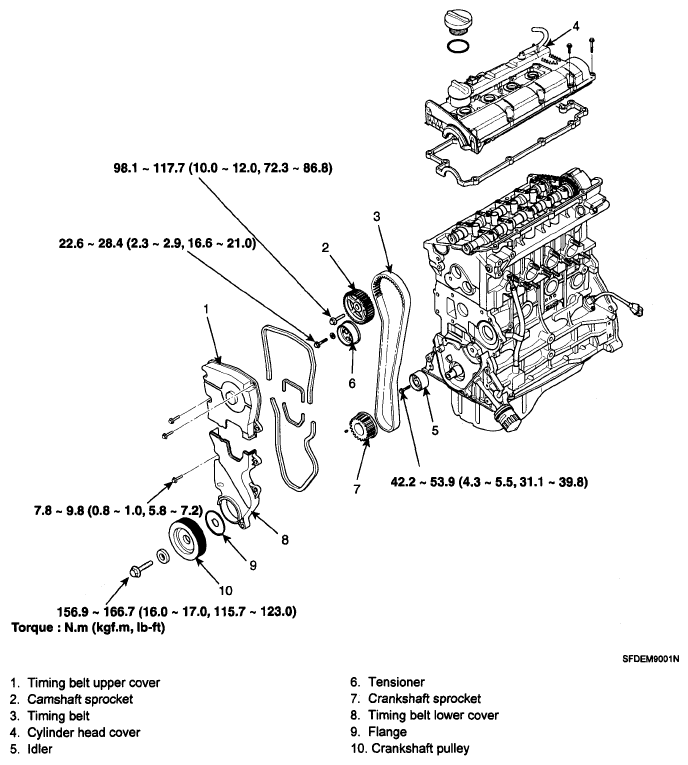

Fig 1: Timing Belt Replacement Components With Torque Specifications
G06135739Courtesy of HYUNDAI MOTOR CO.
