Output Speed Sensor: Removal

  1. Remove the battery terminal.
  2. Remove the battery and battery tray.
  3. Remove the air duct.
  4. Remove the air cleaner assembly. (Refer to REMOVAL )
  5. Remove the output speed sensor connector (A).

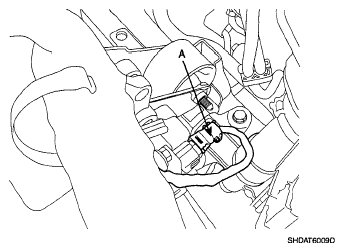

    Fig 1: Identifying Output Speed Sensor Connector
    G05364207Courtesy of HYUNDAI MOTOR CO.
  6. Remove the output speed sensor (A).

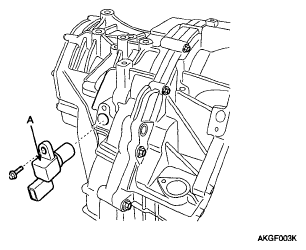

Fig 2: Identifying Output Speed Sensor
G05364277Courtesy of HYUNDAI MOTOR CO.
