Interior Trim: Console: Components

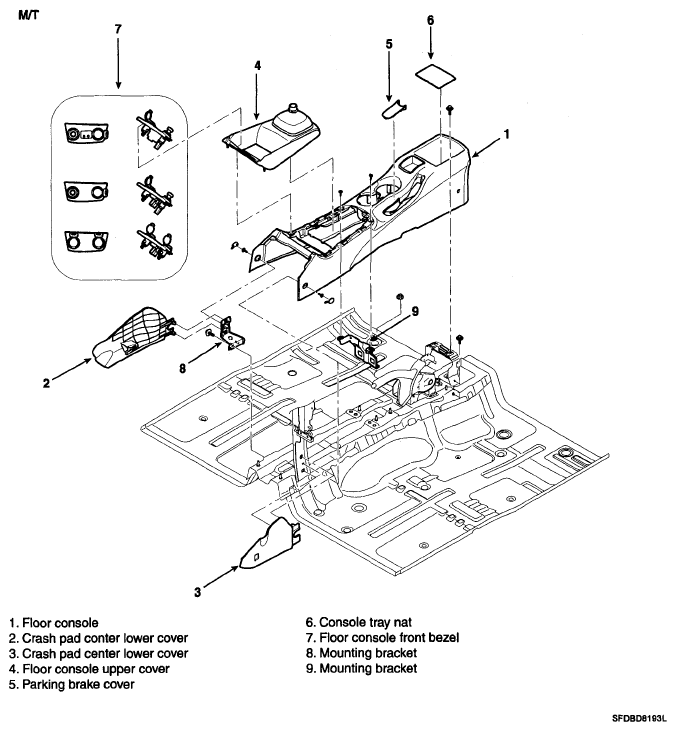

Fig 1: Identifying Console Components - MT
G06145121Courtesy of HYUNDAI MOTOR CO.

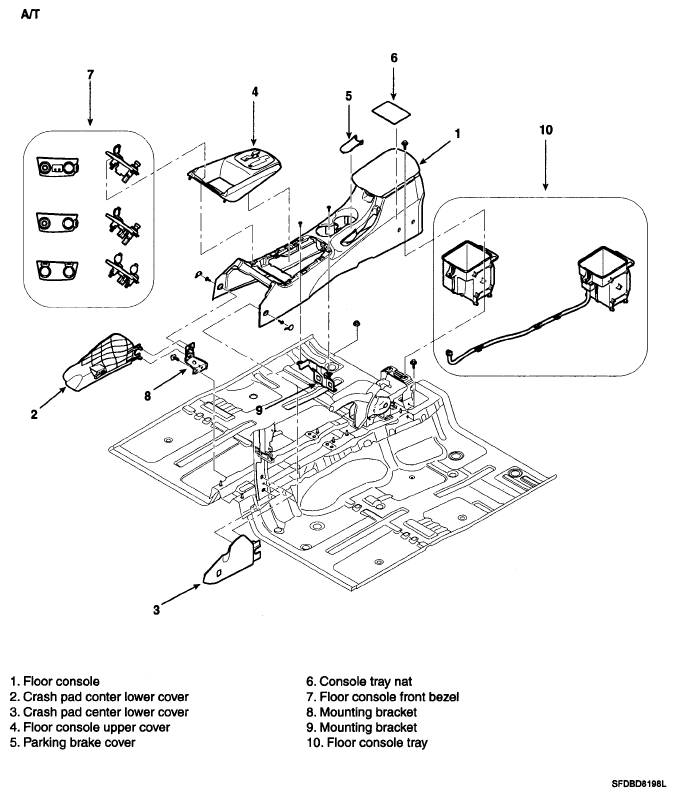

Fig 2: Identifying Console Components - AT
G06145122Courtesy of HYUNDAI MOTOR CO.
