Connecting Rod, Engine





Connecting Rod Bearing Cap

Tightening torque 49.0 - 52.0 Nm (5.0 - 5.3 kgf.m, 36.2 - 38.3 lb-ft)

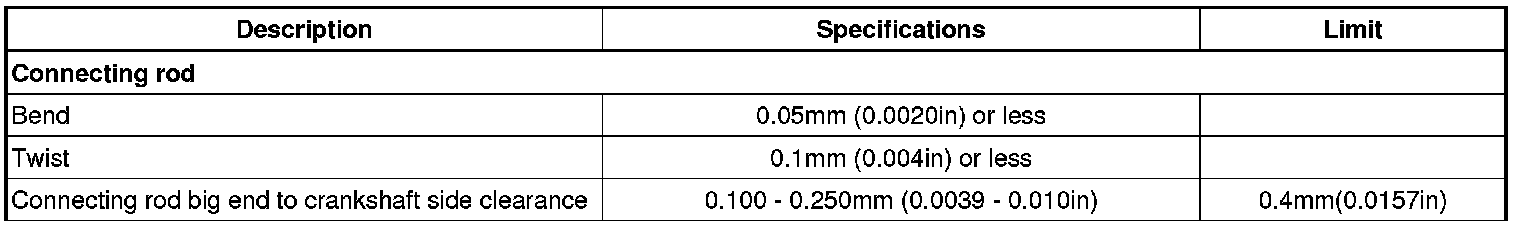

Connecting Rod
