Signal Waveform & Data

TEST CONDITION CHART

Test Condition		GDS Parameter	GDS Screen
Test Condition		TPS VOLTAGE	GDS Screen
Normal value with ignition "ON" & engine "OFF"	Accelerator pedal released	0.20 ~ 0.47 V	Fig 1
Normal value with engine ON & accelerator pedal fully depressed		4.2 ~ 4.7 V	-
Abnormal value with ignition "ON" & engine "OFF"	Power circuit open	0.01 V	Fig 2
	Ground circuit open	4.99 V	Fig 3
	TPS signal circuit open	4.99 V	Fig 3
	TPS signal circuit short to ground	Approx. 0 V	-
	TPS signal circuit short to battery	Above 4.99 V	-

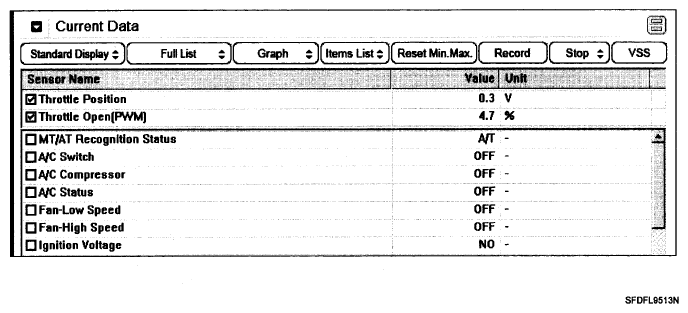

Fig 1: Screen Display - Current Data

G06136122

Courtesy of HYUNDAI MOTOR CO.

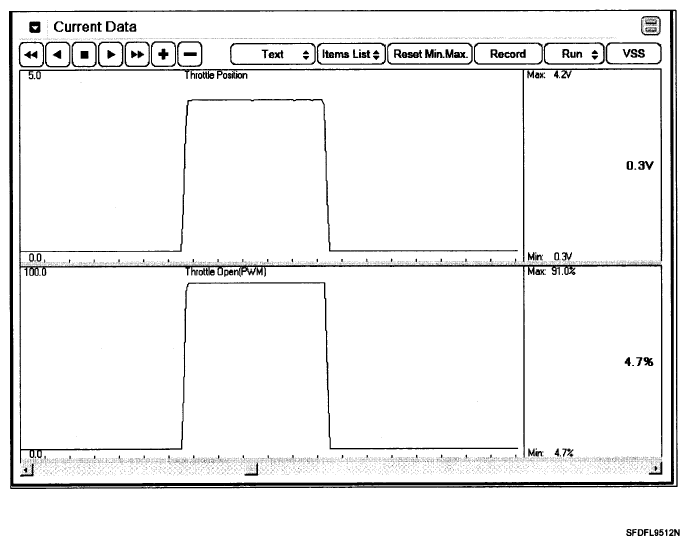

Fig 2: Screen Display - Sensor Name And Value

G06136123

Courtesy of HYUNDAI MOTOR CO.

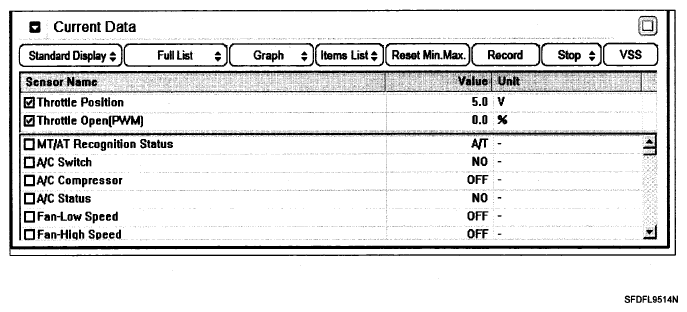

Fig 3: Screen Display - Sensor Name And Value

G06136124

Courtesy of HYUNDAI MOTOR CO.
