Shift Lever: Components

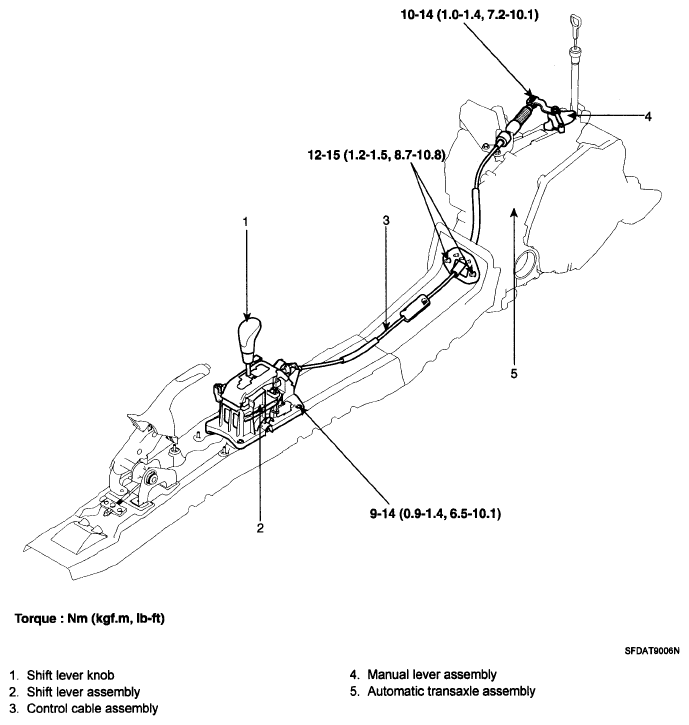

Fig 1: Automatic Transaxle Control System Replacement Components With Torque Specifications
G06136556Courtesy of HYUNDAI MOTOR CO.
