Transaxle Oil Temperature Sensor: Description: Notes

TRANSAXLE OIL TEMPERATURE SENSOR CHART

Sensor type	Type: Thermistor Use available temperature :-40~160 °C (-40~320 °F)
Function and feature	Detect the temperature of ATF through the thermistor which is exposed outside. When shifting the range, it is used as the oil pressure control information.

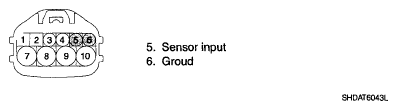

Connector	Courtesy of HYUNDAI MOTOR CO.

TEMPERATURE AND RESISTANCE CHART

Temp. [°C (°F)]	Resistance (KΩ)	Temp. [°C (°F)]	Resistance (KΩ)
-40 (-40)	139.5	80 (176)	1.08
-20 (-4)	47.4	100 (212)	0.63
0 (32)	18.6	120 (248)	0.38
20 (68)	8.1	140 (284)	0.25
40 (104)	3.8	160 (320)	0.16
60 (140)	1.98
