Transaxle Oil Temperature Sensor: Installation

Connect the main harness connector (A) to the valve body.
CAUTION: When connecting the oil temperature connector, check the connector for rust, dirt, or oil, then reconnect it.

Fig 1: Identifying Main Harness Connector Location
Courtesy of HYUNDAI MOTOR CO.
Install the valve body. (Refer to VALVE BODY SYSTEM )
Tightening torque:

10~12 Nm (1.0~1.2 kgf.m, 7~8 lb-ft)
Install the oil filter.
Tightening torque:

5~7 Nm (0, 5~0.7 kgf.m, 4~5 lb-ft)
Continue to apply liquid gasket at application points at the oil pan with ø0.098 in (2.5 mm) thickness.
Liquid gasket Part name : Threebond 1281B

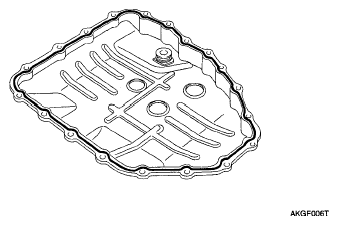

Fig 2: Identifying Oil Filter Gasket
Courtesy of HYUNDAI MOTOR CO.
Tighten the mounting bolt with the specified TORQUE after installing the oil pan.
Tightening torque:

10~12 Nm (1.0~1.2 kgf.m, 7~8 lb-ft)
Install the drain plug.
Tightening torque:

40~50 Nm (4.0~5.0 kgf.m, 28.9~36.2 lb-ft)
Installation is the reverse of the removal.
